Workman GTX Electric
Page 3A -- 32
Electrical System
Service and R epairs
Battery Service
1. Battery (8 used)
2. Hex nut (2 used per battery)
3. Battery cable with boots (6 used)
4. Battery cable with boots
5. Watering hose assembly
6. Flange nut (2 used)
7. Battery hold down (2 used)
8. Battery hold down rod (2 used)
9. Battery tray (2 used)

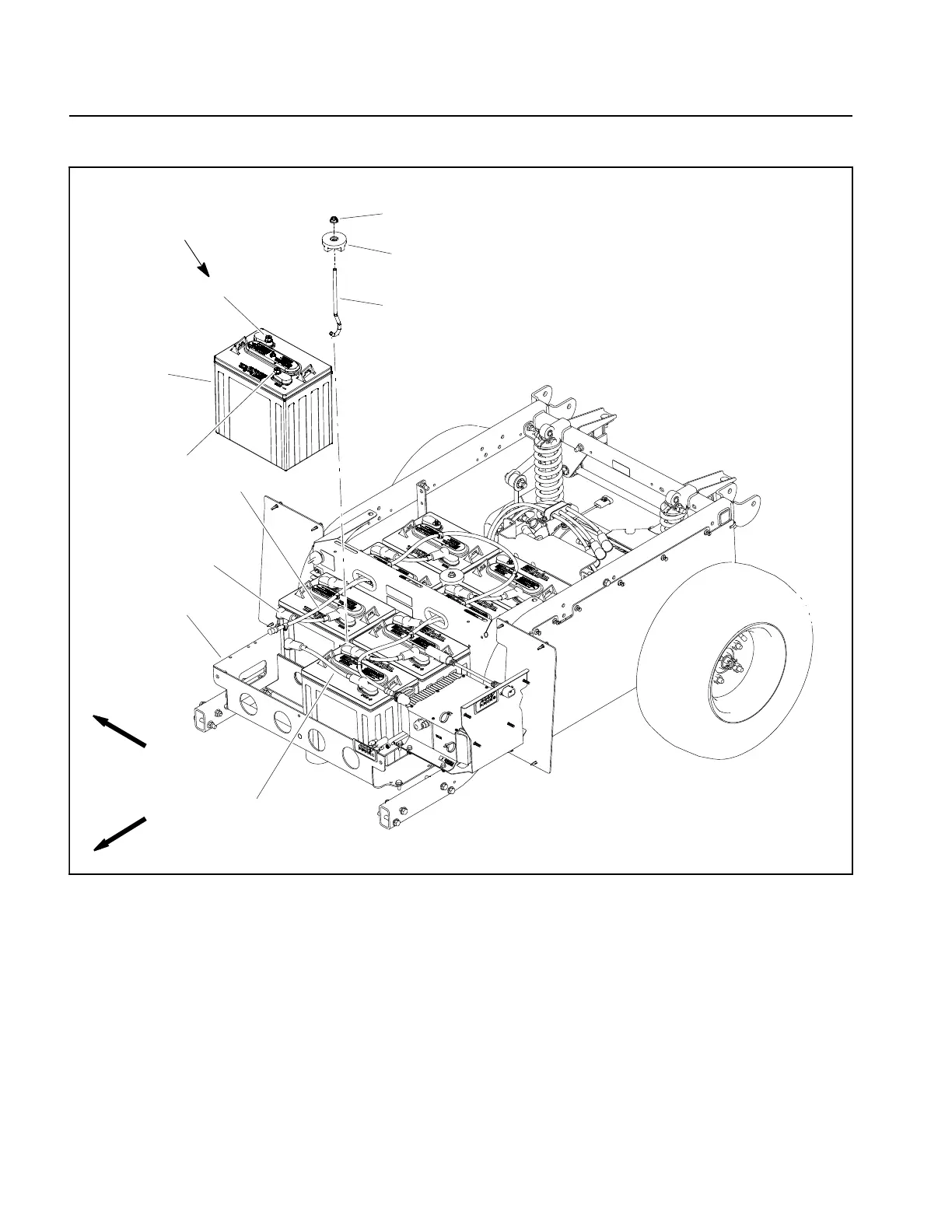

Figure 41
FRONT
RIGHT
95 to 105 in--lb
(10.8 to 11.8 N--m)
1
2
3
8
6
7
5
4
2
9
The batteries are the heart of the Workman electrical
system. With regular and proper service, battery life can
be extended. Additionally, battery and electrical compo-
nent failure can be prevented.
Battery Specifications:
Trojan model T--125 Battery (6 Volt Deep Cycle)
Capacity: 195 AH
Weight: 66 lbs (30 kg)
