Workman GTX ElectricPage 5 -- 44Chassis

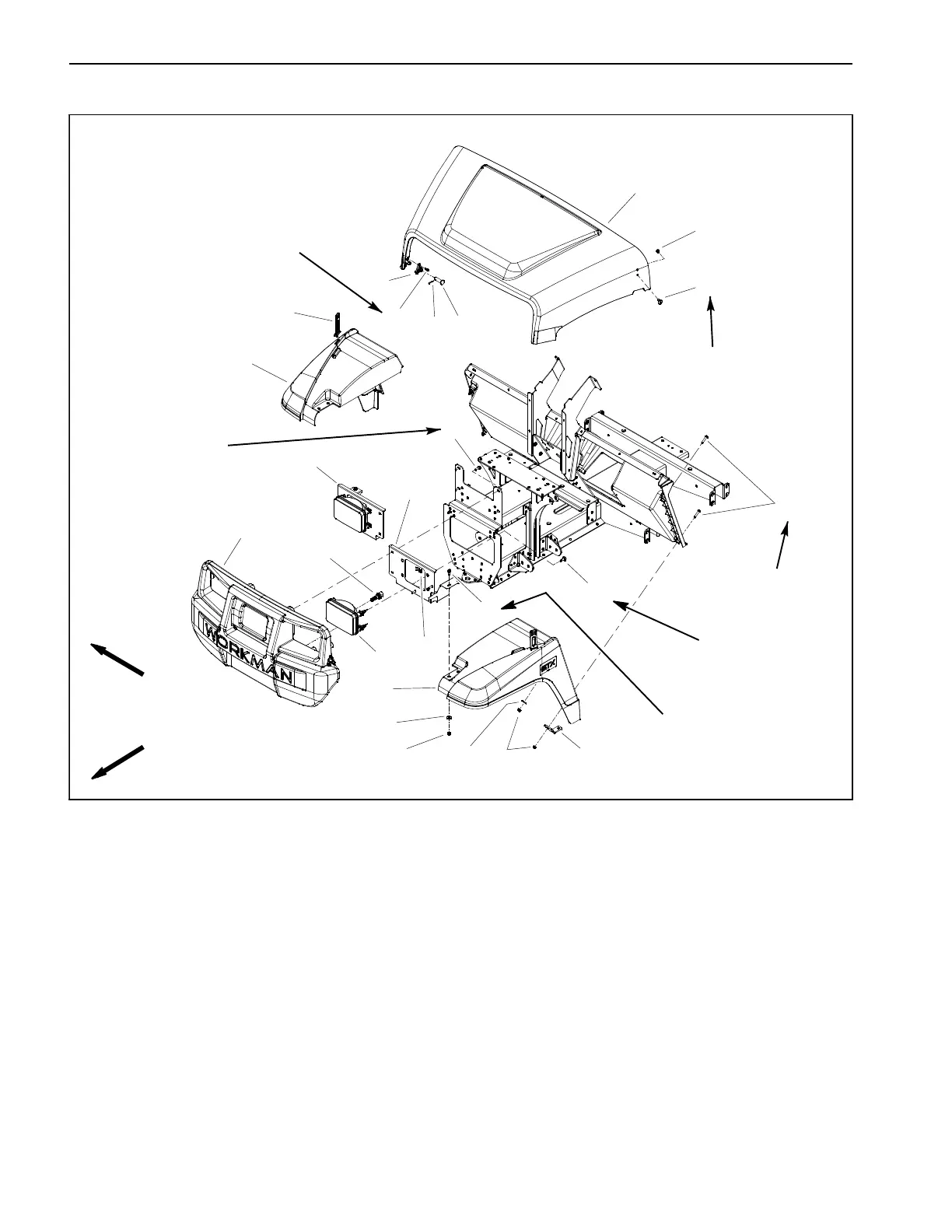

Front Fenders, Hood and Bumper
1. Bumper
2. LH headlight bracket
3. RH headlight bracket
4. Washer head screw (8 used)
5. Headlight assembly (2 used)
6. Speed clip (6 used)
7. Hood
8. Clevis pin (2 used)
9. Spring pin (2 used)
10. Retainer pin (2 used)
11. Washer head screw (6 used)
12. LH front fender
13. RH front fender
14. Flange head screw (4 used)
15. Flat washer (4 used)
16. Flange nut (4 used)
17. Washer head screw (2 used)
18. Screw (2 used)
19. Hold down strap (2 used)
20. Lock nut (2 used)
21. Washer head screw (4 used)
22. LED bulb (2 used)
23. Angle bracket (2 used)
24. Flange nut (4 used)
25. Flat washer (2 used)
Figure 41
FRONT
RIGHT
7to13in--lb
(0.8 to 1.4 N--m)
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
4
21
22
23
24
25
18 to 22 in--lb
(2.1 to 2.4 N--m)
18 to 22 in--lb
(2.1 to 2.4 N--m)
40 to 45 in--lb
(4.6 to 5.0 N--m)
200 to 230 in--lb
(23to25N--m)
40 to 45 in--lb
(4.6 to 5.0 N--m)
