Workman GTX Electric
Transaxle
Page 4 -- 4
Service and R epairs

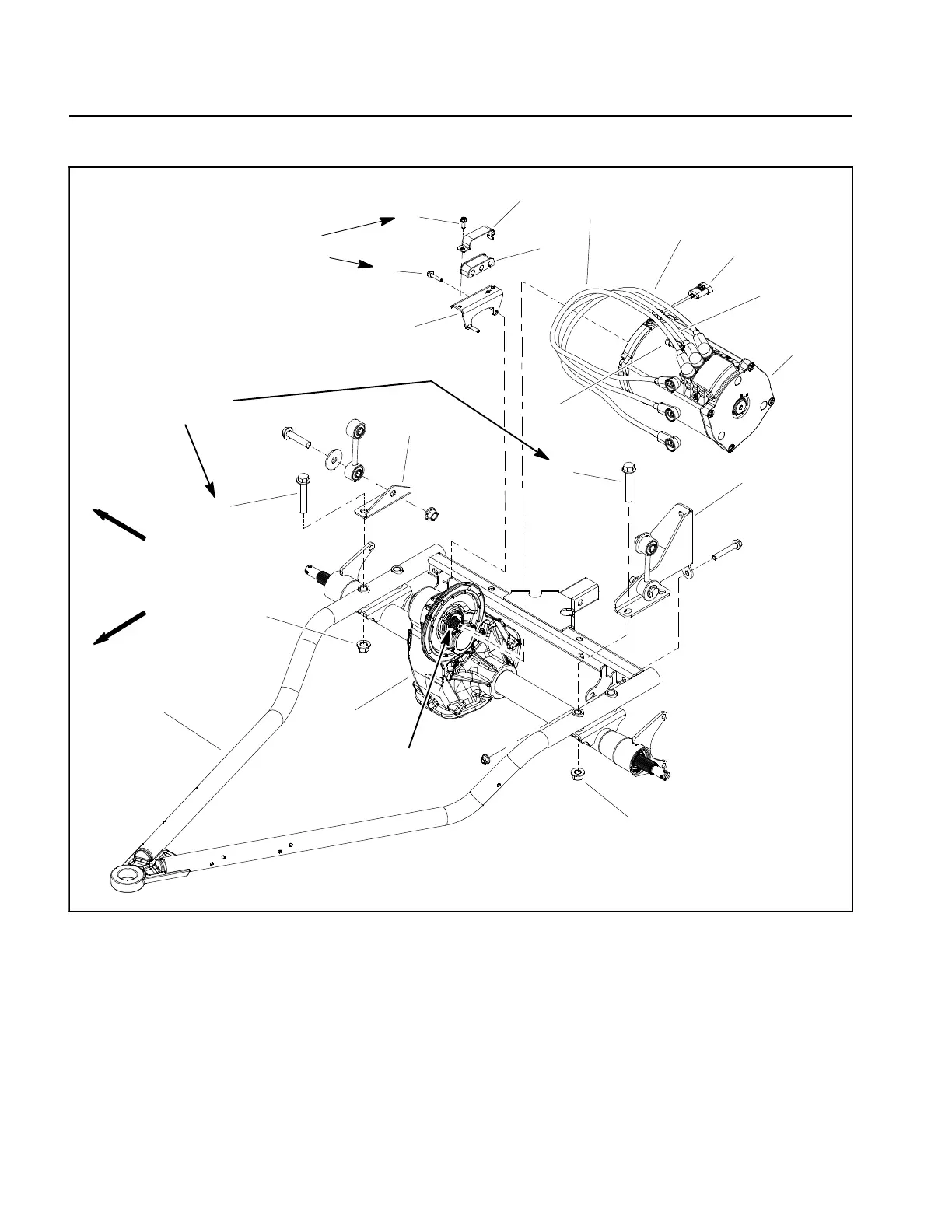

Transaxle Assembly
1. Transaxle assembly
2. Traction motor
3. Cable (motor W to controller M1)
4. Cable (motor V to controller M2)
5. Cable (motor U to controller M3)
6. Motor speed sensor connector
7. Motor thermistor connector
8. Cable bracket
9. Isolator
10. Isolator retainer
11. Washer head screw
12. Flange head screw (6 used)
13. Flange head screw (4 used)
14. Lock nut (4 used)
15. Sway bar link bracket
16. Stabilizer bar bracket
17. Swing arm
Figure 1
v
3
10
14
17
5
4
6
7
11
9
12
90 to 110 in--lb
(10.2 to 12.4 N--m)
1
2
8
13
15
16
13
14
77 to 95 ft--lb
(105 to 128 N--m)
Antiseize
Lubricant
FRONT
RIGHT
