Workman GTX ElectricPage 5 -- 26Chassis

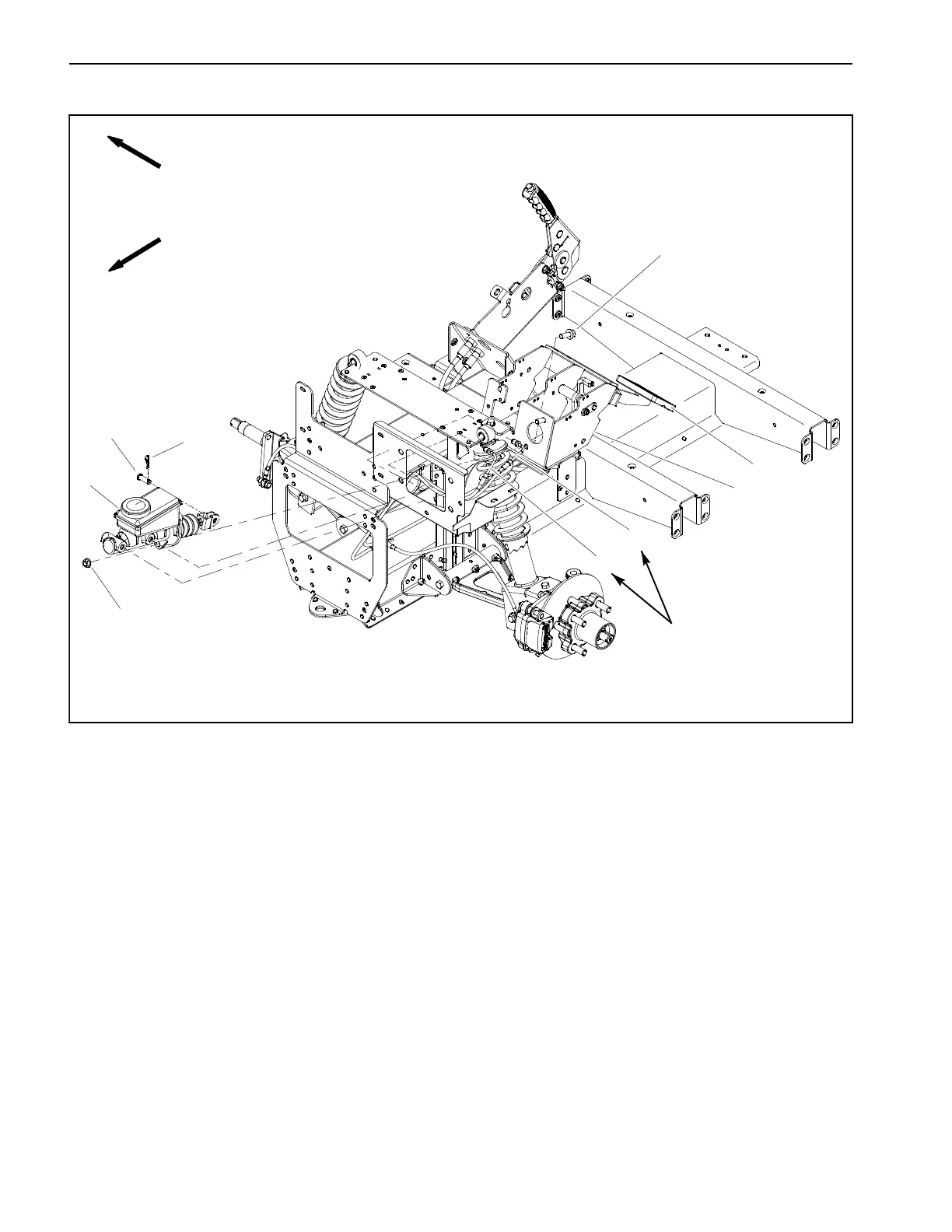

Brake Master Cylinder
1. Master cylinder
2. Hair pin
3. Clevis pin
4. Brake pedal
5. Pedal mount
6. Flange nut (2 used)
7. Flange head screw (2 used)
8. Front brake line
9. Rear brake line
Figure 22
FRONT
RIGHT
2
3
6
8
9
1
5
7
4
(8.5 to 9.6 N--m)
75 to 85 in--lb
