Workman GTX Electric
Page 3A -- 46
Electrical System
Controller
1. Controller
2. Washer head screw (4 used)
3. Washer head screw
4. Isolator retainer
5. Isolator
6. Controller bracket
7. Main contactor
8. On--board battery charger

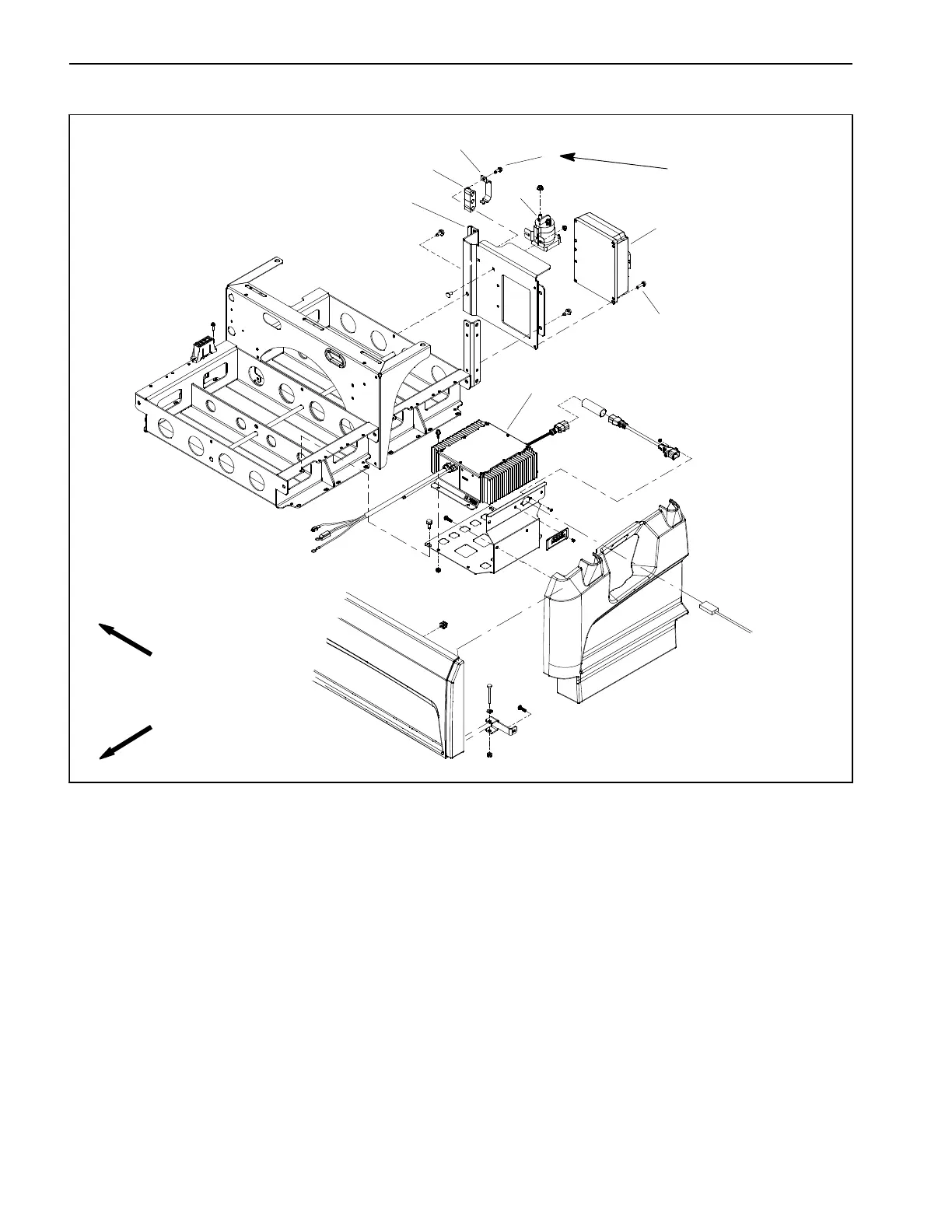

Figure 52
90 to 110 in--lb
(10.2to12.4N--m)
FRONT
RIGHT
2
3
6
8
1
5
7
4
Removal (Fig. 52)
1. Park vehicle on a level surface, turn key switch to
OFF, engage the parking brake and remove key from
the key switch.
2. Raise cargo bed and support with prop rod to allow
access to controller.
3. Make sure that vehicle battery charger IS NOT con-
nected to electrical outlet. Open the battery circuit by
disconnecting the conductors between the battery pack
and vehicle components (see Opening Battery Circuit in
the General Information section of this chapter).
NOTE: Label all controller electrical leads for assembly
purposes.
4. Disconnect electrical conductors from controller and
position them away from controller:
A. Remove cap screw, lock washer, flat washer and
cable connector from controller terminals B+, B--,
M1, M2 and M3 (Fig. 53).
B. Carefully unplug wire harness connector from
controller.
C. Position cables and wire harness connector
away from controller.
