Workman GTX ElectricPage 5 -- 40Chassis

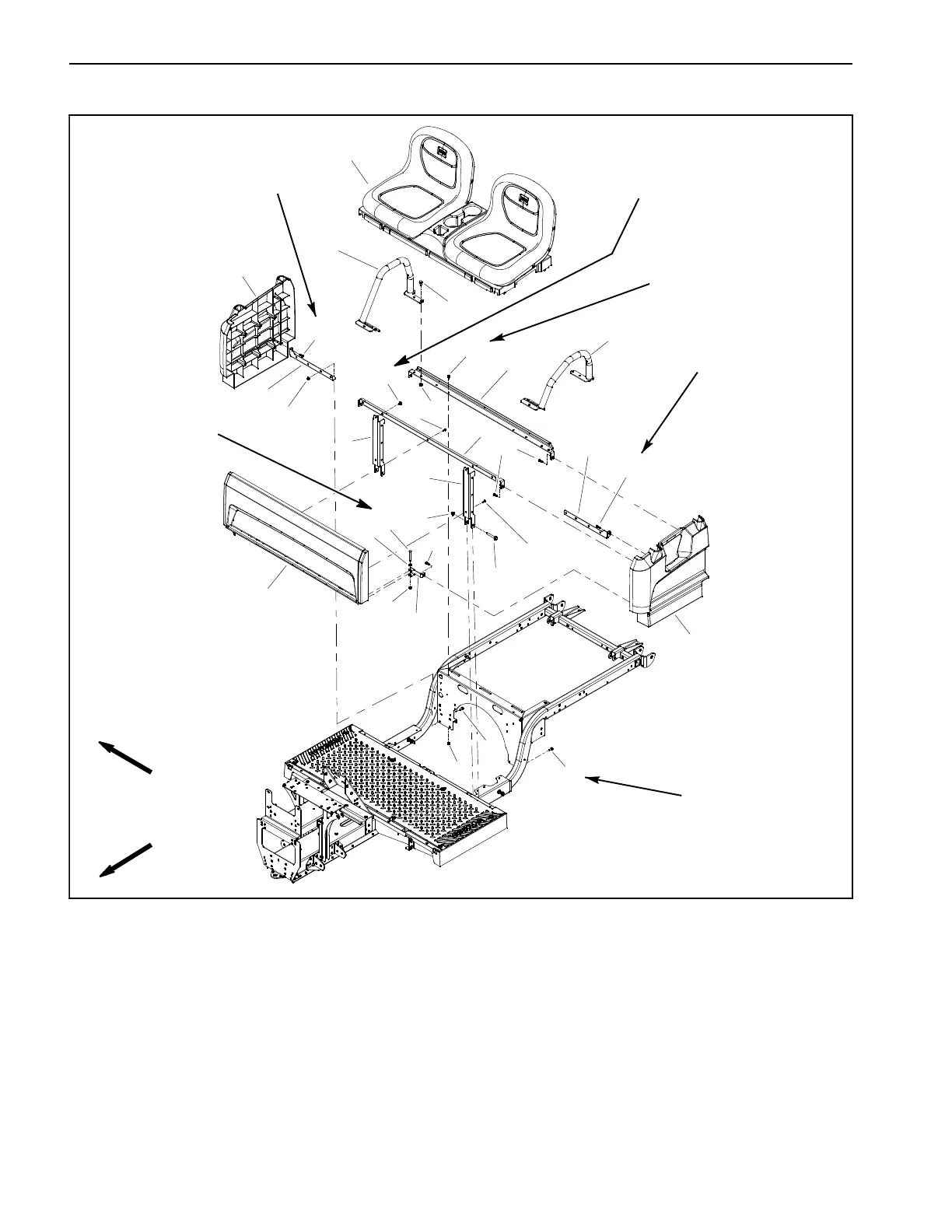

Seat Base
1. RH seat base side
2. Seat base front panel
3. LH seat base side
4. Seat support angle
5. Rear seat support angle
6. Seat support channel (2 used)
7. Screw with washer (2 used)
8. Seat base assembly
9. Floor plate clamp (2 used)
10. Flat washer (2 used)
11. Flange head screw (2 used)
12. Flange nut (8 used)
13. LH side support bracket
14. RH side support bracket
15. Washer head screw (5 used)
16. Screw (12 used)
17. Flange head screw (6 used)
18. Washer head screw (6 used)
19. Flange nut (6 used)
20. RH hip restraint
21. LH hip restraint
22. Flange head screw (2 used)
23. Flange nut (2 used)
Figure 37
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
4
21
16
6
16
15
16
12
17
17
12
22
23
FRONT
RIGHT
40 to 45 in--lb
(4.6 to 5.0 N--m)
18 to 22 in--lb
(2.1 to 2.4 N--m)
18 to 22 in--lb
(2.1 to 2.4 N--m)
90 to 110 in--lb
(10.2to12.4N--m)
90 to 110 in--lb
(10.2 to 12.4 N--m)
40 to 45 in--lb
(4.6 to 5.0 N--m)
