Workman GTX ElectricPage 5 -- 24Chassis

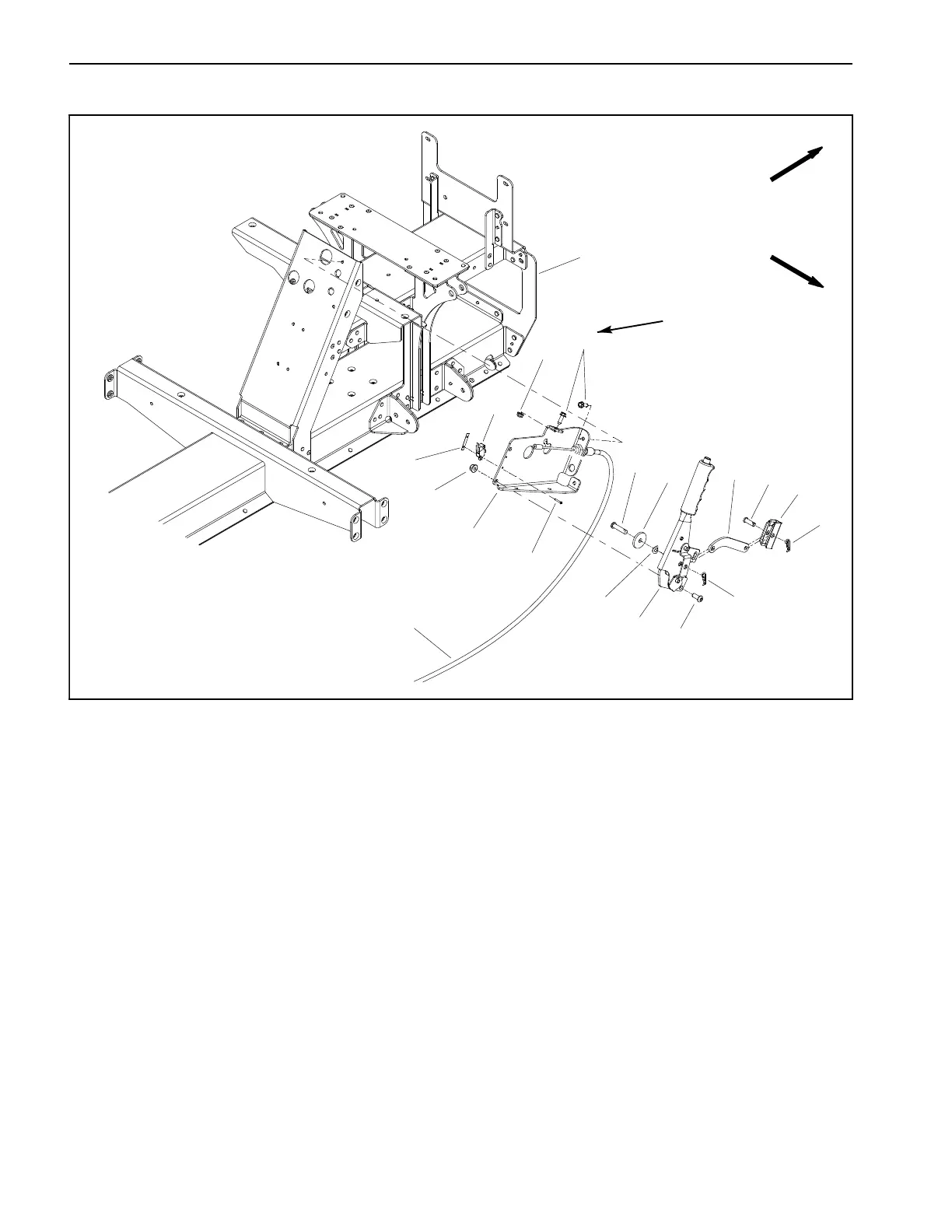

Parking Brake Cables and Lever Assembly
1. Parking brake lever
2. Clevis pin
3. Flat washer
4. Spring washer
5. Hair pin (2 used)
6. Parking brake link
7. Clevis pin
8. Cable equalizer bracket
9. Button head screw (2 used)
10. Flange nut (2 used)
11. Parking brake mount
12. Parking brake cable (2 used)
13. Washer head screw (3 used)
14. Flange nut
15. Front frame
16. Screw (2 used)
17. Speed nut
18. Parking brake switch
Figure 20
FRONT
RIGHT
2
3
6
8
9
10
11
13
1
5
7
12
4
14
200 to 230 in--lb
(23 to 25 N--m)
5
15
16
18
17
NOTE: The parking brake assembly includes the dash
mounted parking brake lever, t wo (2) identical brake ca-
bles and parking brake actuators in the rear brake
calipers.
