Workman GTX Electric
Page 3A -- 42
Electrical System
Traction Motor Service

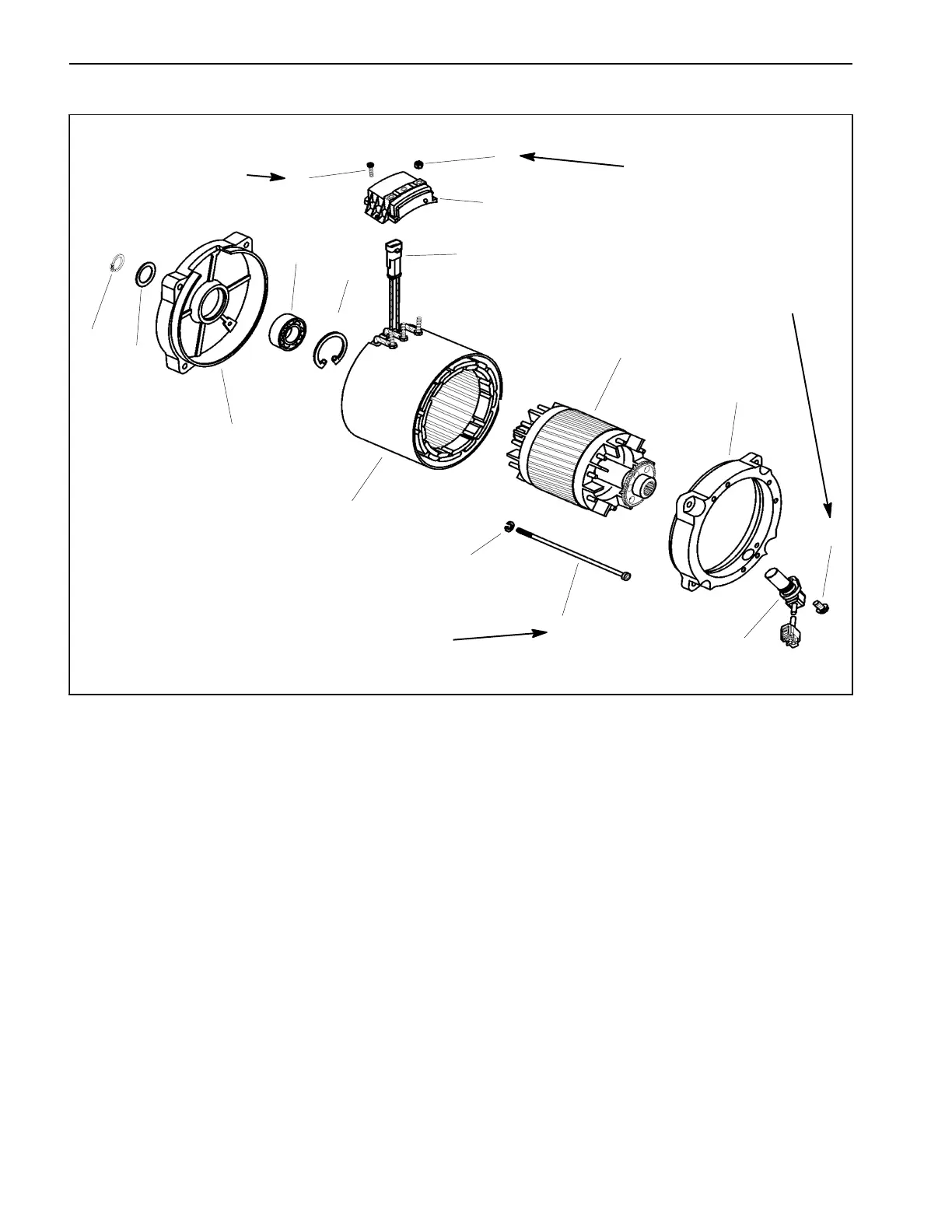

1. Torx head screw
2. Encoder (speed sensor)
3. Drive end bracket
4. Armature assembly
5. Wave washer
6. Retaining ring
7. Stator assembly
8. Retaining ring
9. Bearing
10. Rear end bracket
11. Torx head screw (2 used)
12. Connection plate
13. Lower jam nut (3 used)
14. Thermistor connector
15. Socket head screw (4 used)
16. Lock washer (4 used)
Figure 47
3
4
5
8
6
7
9
10
12
11
14
15
13
16
71 to 97 in--lb
(8 to 11 N--m)
25 to 33 in--lb
(2.8 to 3.8 N--m)
25 to 33 in--lb
(2.8 to 3.8 N--m)
72 to 88 in--lb
(8 to 10 N--m)
2
1
NOTE: If traction mot or stator or armature damage oc-
curs, traction motor replacement is necessary. These
components are not available separately.
Motor Disassembly (Fig. 47)
1. Remove torx head screw that secures encoder
(speed sensor) to traction motor. Slide encoder from
drive end bracket.
2. Remove the r etaining ring and wave washer that se-
cure the armature assembly in the rear end bracket
bearing (Fig. 48).
3. Carefully separate armature assembly o ut of bearing
in rear end bracket and then remove armature from sta-
tor.
4. Remove connection plate assembly (item 12) from
stator:
A. Remove three (3) lower jam nuts from stator ter-
minal screws.
B. Remove two (2) torx screws that secure connec-
tion plate assembly to stator.
C. Remove connection plate assembly from stator.
5. For assembly purposes, note locations of drainage
slots in drive and rear end brackets and the aligning po-
sition slots in the stator assembly (Fig. 49).
