Workman GTX ElectricPage 5 -- 38Chassis

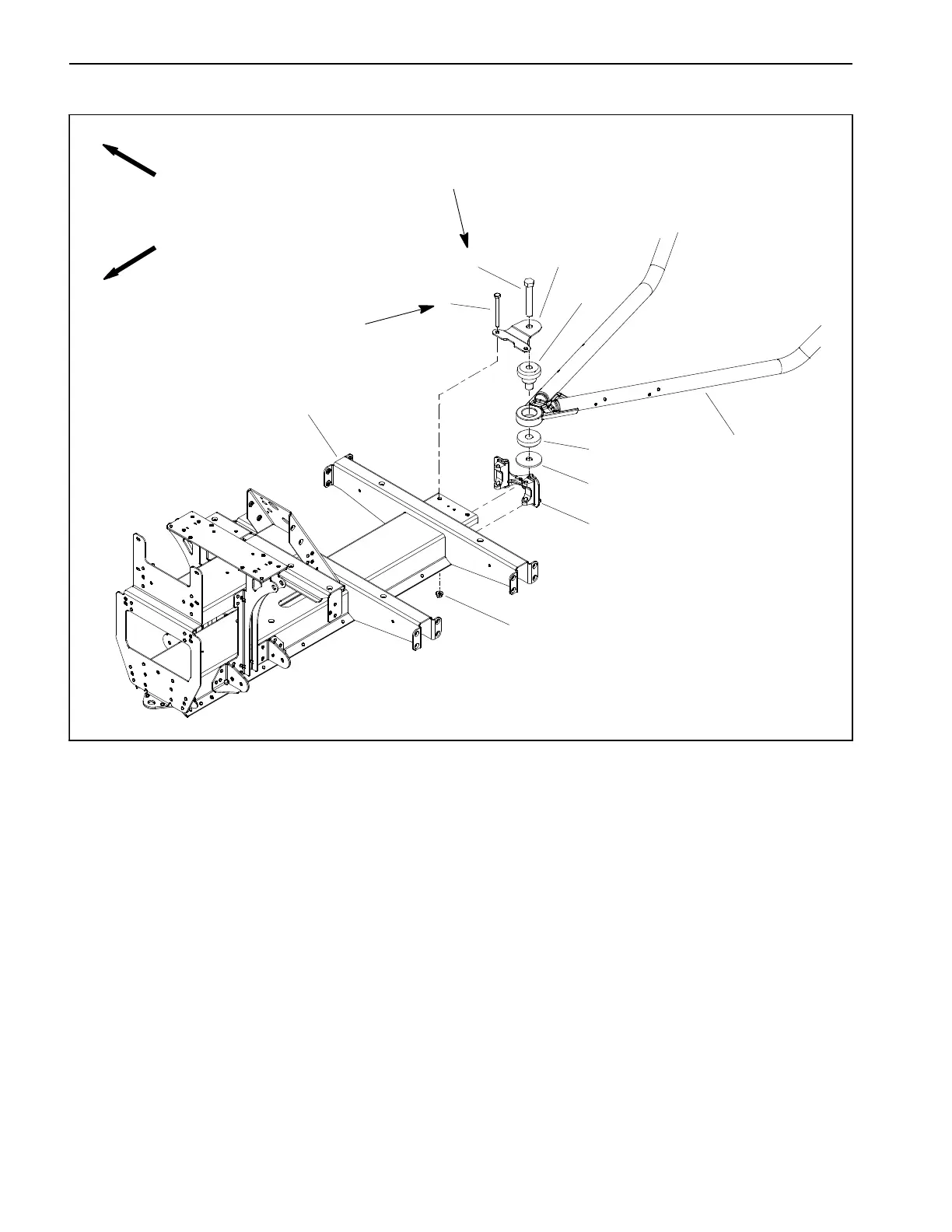

Swing Arm Mount Assembly
1. Front frame
2. Swing arm
3. Cap screw
4. Upper plate
5. Isolator (upper portion)
6. Isolator (lower portion)
7. Snubbing washer
8. Rear suspension mount
9. Cap screw (2 used)
10. Flange nut (2 used)
Figure 36
FRONT
RIGHT
2
3
6
8
9
1
5
7
4
140 to 160 ft--lb
(190 to 216 N--m)
27 to 33 ft--lb
(37to44N--m)
10
