Workman GTX Electric Lithium
Page 3B -- 64
Electrical System

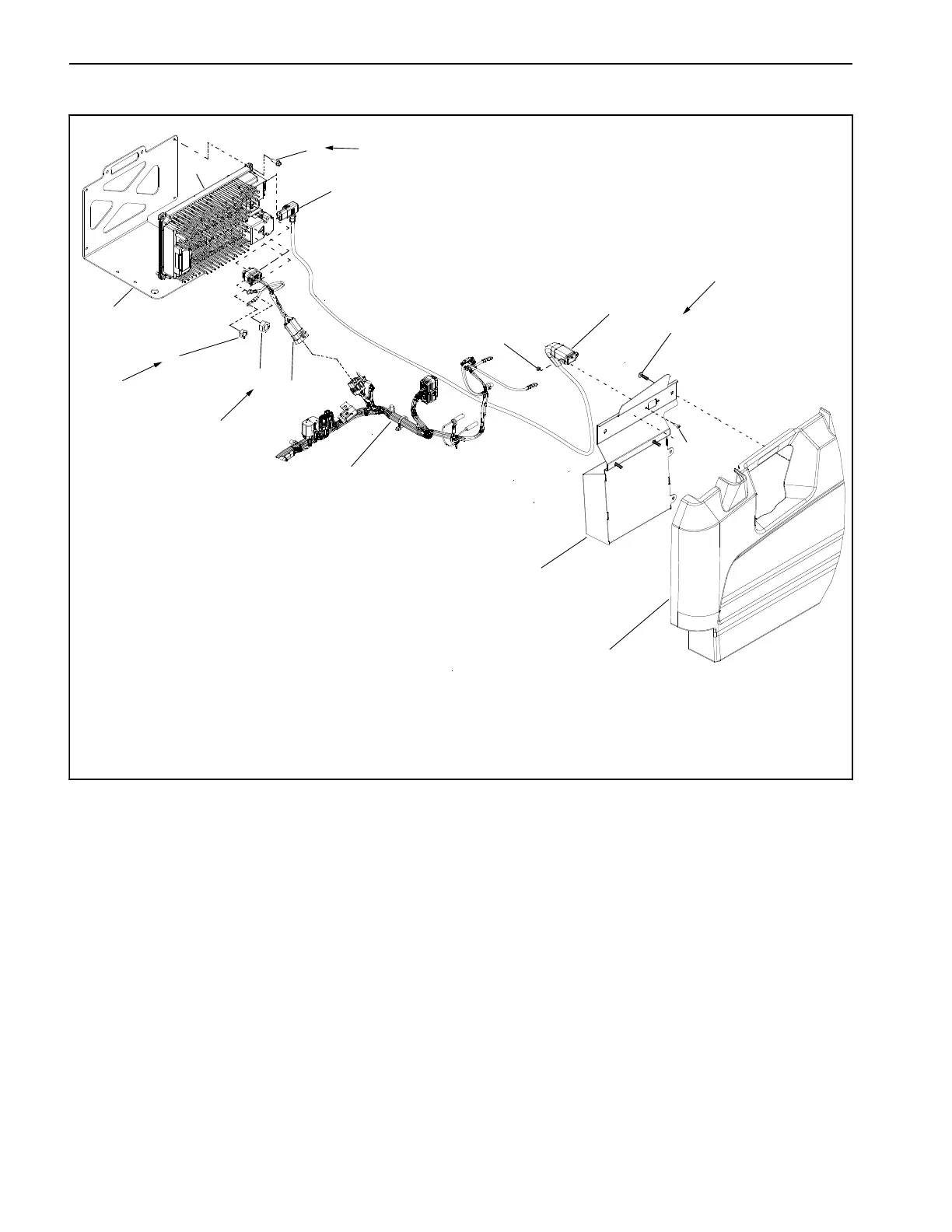

On--board Battery Charger
1. On--board battery charger
2. Flange head bolt (4 used)
3. Power supply cord
4. Charger bracket
5. Charger interface wire harness
6. Nut
7. Nut
8. Machine wire harness
9. Nut (2 used)
10. AC input
11. Screw (6 used)
12. Bolt (2 used)
13. Charger outlet bracket
14. LH seat base side
Figure 69
1
2
3
4
5
6
7
8
9
10
11
12
13
14
90 to 110 in--lb
(10to12.4N--m)
45 to 55 in--lb
(5 to 6.2 N--m)
18 to 22 in--lb
(2 to 2.5 N--m)
36 to 44 in--lb
(4 to 5 N--m)
IMPORTANT: No serviceable parts (including elec-
trical conductors) are contained inside the battery
charger. DO NOT attempt to open or disassemble
the charger.
Removal (Fig. 69)
1. Park vehicle on a level surface, turn key switch to
OFF, engage the parking brake and remove key from
the key switch. Make sure that vehicle charger IS NOT
connected to electrical outlet.
2. Raise cargo bed and support with prop rod. Remove
seat base assembly.
3. Remove rear frame panel cover to allow access to
battery charger electrical connections (see Rear Frame
Panel Cover in the General Information section of this
chapter).
4. Open the battery circuit by disconnecting the con-
ductors between the battery pack and vehicle compo-
nents (see Opening Battery Circuit in the General
Information section of this chapter).
NOTE: Label all battery charger electrical leads for as-
sembly purposes.
