Workman GTX Electric Lithium Page 3B -- 25 Electrical System
Fuse Testing
CAUTION
When testing fuses for continuity with a multime-
ter (ohms setting), make sure that fuse is re-
moved from circuit.
IMPORTANT: Before removing f use from con-
troller (425 Amp) for testing, open the battery circuit
by removing one of the battery cables (see Opening
Battery Circuit in the General Information section of
this chapter).
Make sure key switch is turned OFF. Remove fuse to
check continuity. The test meter should read less than
1 ohm if a fuse is functional. Replace t he fuse if faulty.
If fuse was removed from controller, torque the nuts that
securethefusefrom89 to 106 in--lb (10 to 12 N--m).

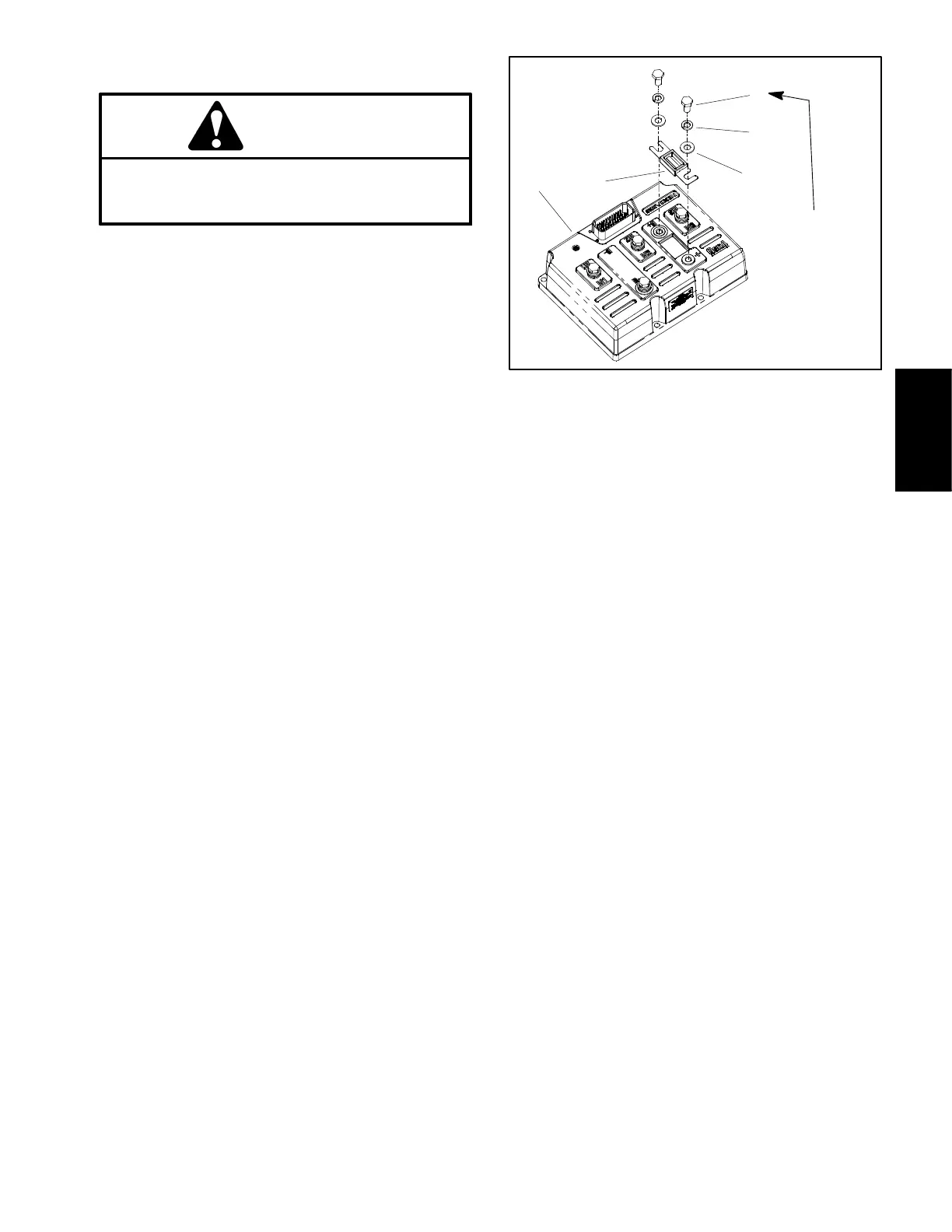

1. Controller
2. Fuse (425 A)
3. Screw (2 used)
4. Lock washer (2 used)
5. Flat washer (2 used)
Figure 21
1
2
3
4
5
89 to 106 in--lb
(10to12N--m)
