SUA 125 NUMERIC
34200003 TOS a.s. 02/2011
55
Warning:
The longitudinal and cross direction movement (feed) in this Manual is applied to the longitudinal lathe axis, accordingly to
the work spindle axis.

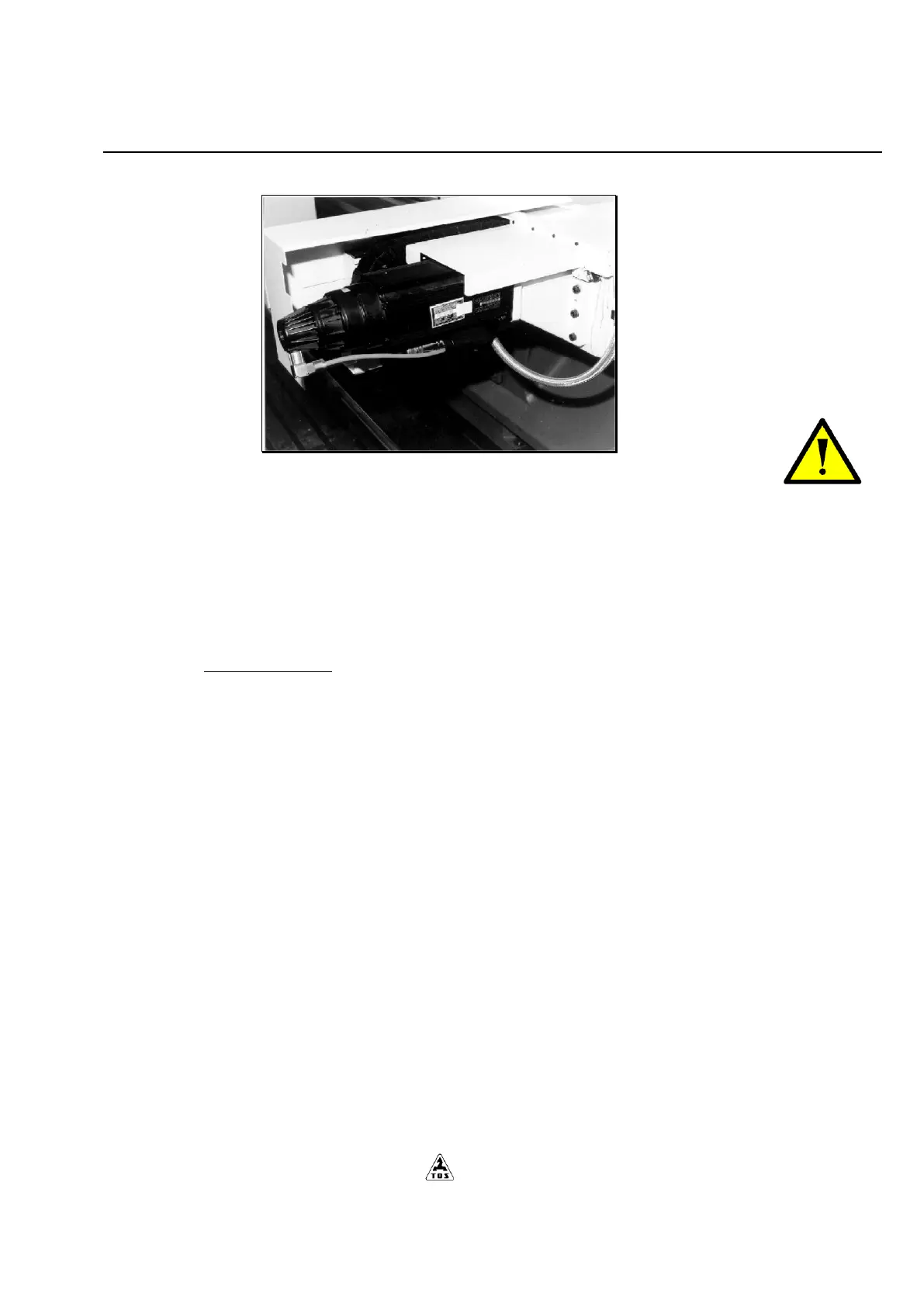

MAINTENANCE of carriage.
Adjusting of clearence in longitudinal saddle guide of tool slide:
• loosen the adjusting screws of the guide gib by means of four nuts (M 12) on the side wall of the tool slide body
• take up the acceptable clearance between guide gib and saddle guide with four adjusting screws (M 12) (the acceptable
clearance must be resolved from point of view of the tool slide power or hand feed).
• lock in position adjusting screws with nuts M 12
Adjusting of clearance in cross saddle guide and in tool slide:
• loosen the adjusting wedge by means of a locking screw on its thinner end
• take up the acceptable clearance between the adjusting wedge and guideway by tightening of locking screw on the
opposit end of the adjusting wedge, permanent motion of the adjusted tool slide is desired.
• lock the adjusting wedge by tightening of locking screw on its thinner end
The locking screws of the wedge are accessible after unscrewing plates carried the wipers.
