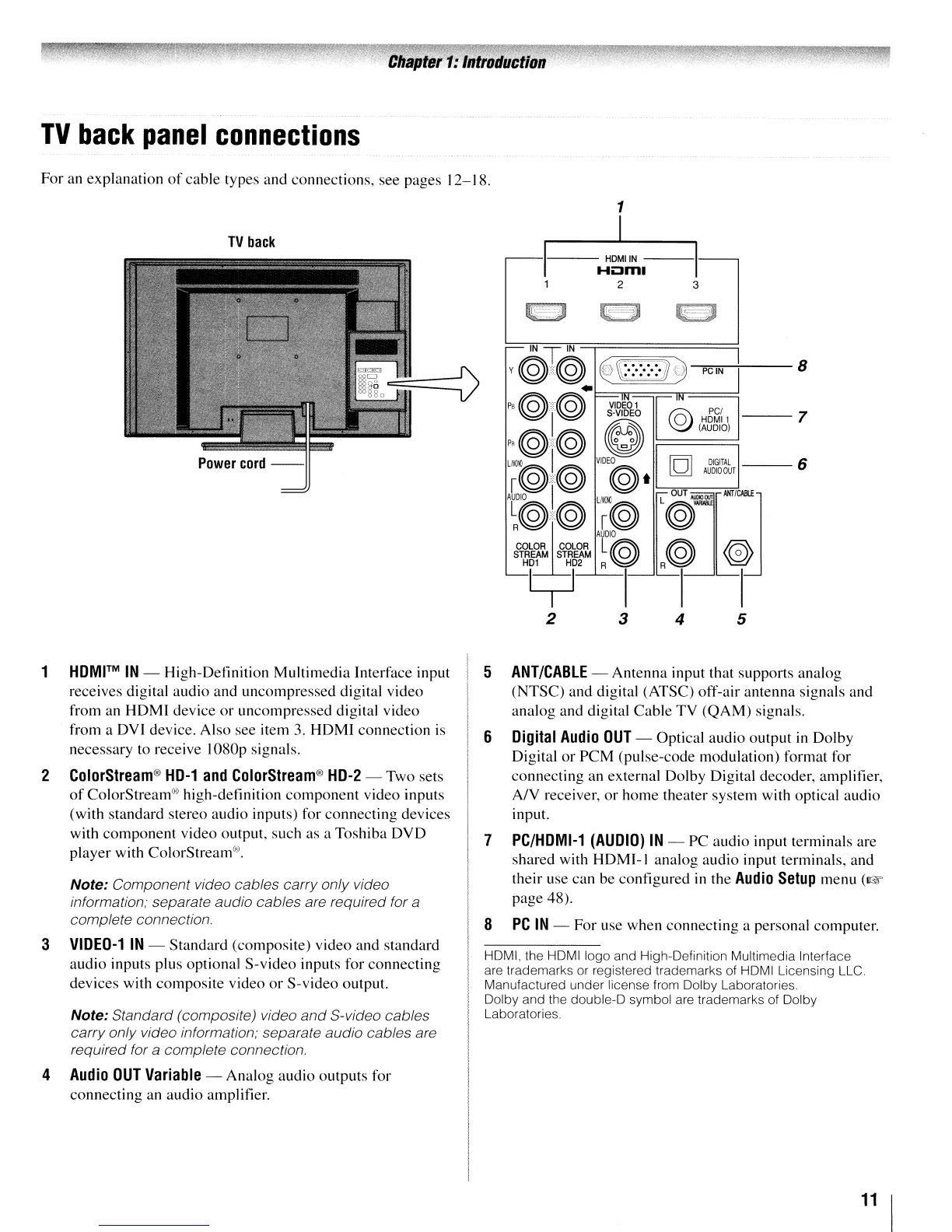

TV
back
panel
connections
For an explanation
of
cable types and connections, see pages 12-18.
TV
back
1
HDMITM
IN
- High-Definition Multimedia Interface input
receives digital audio and uncompressed digital video
from an
HDMI
device
or
uncompressed digital video
from a DVI device. Also see item 3. HDMI connection is
necessary to receive
I080p
signals.
2
ColorStream®
HD-1
and
ColorStream®
HD-2
- Two sets
of
ColorStream@ high-definition
component
video inputs
(with standard stereo audio inputs) for connecting devices
with
component
video output, such as a Toshiba
DVD
player with ColorStream®.
Note: Component video cables
carry
only video
information, separate audio cables are required for a
complete connection.
3
VIDED-1IN
- Standard (composite) video and standard
audio inputs plus optional S-video inputs for connecting
devices with composite video
or
S-video output.
Note: Standard (composite) video
and
S-video cables
carry
only video information; separate audio cables are
required for a complete connection.
4
Audio
OUT
Variable
- Analog audio outputs for
connecting an audio amplifier.
1
I
r--.II---
HDMIIN
---'1--,
~
H~ml
1
~
~~=;!JJ
C~:::;i»l
5
ANT/CABLE
- Antenna input that supports analog
(NTSC) and digital (ATSC) off-air antenna signals and
analog and digital Cable TV (QAM) signals.
6
Digital
Audio
OUT
- Optical audio output in Dolby
Digital
or
PCM
(pulse-code modulation) format for
connecting an external Dolby Digital decoder, amplifier,
AJV
receiver,
or
home theater system with optical audio
input.
7
PCIHDMI-1
(AUDIO)
IN
- PC audio input terminals are
shared with HDMI-l analog audio input terminals, and
their use can be configured
in
the
Audio
Setup
menu
(I@f'
page 48).
8
PC
IN
- For use when connecting a personal computer.
HDMI, the HDMI logo and High-Definition Multimedia Interface
are trademarks
or
registered trademarks of HDMI Licensing LLC
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby
Laboratories.
11
