Toshiba B-EP2DL-GH40-QM-R Interface Specification

CHAPTER 5 TPCL-LE MODE (INTERFACE COMMANDS)
B-EP Series
5-176
(5) Writable character types: 01 to 40
Nibble mode
1
30H
2
30H
3
30H
4
3FH
5
3CH
6
30H
7
30H
8
30H
9
3FH
10
3CH
11
37H
•
•
•
•
•
•
•
240 30H
241 3FH 242 3FH 243 3FH 244 3CH 245 30H 246 30H 247 30H 248 30H
Hex. mode
1
00H
2
0FH
3
C0H
4
00H
5
FCH
6
7FH
•
•
•
•
•
•
•
•
120 00H
121 FFH 122 FCH 123 00H 124 00H
[Nibble mode]

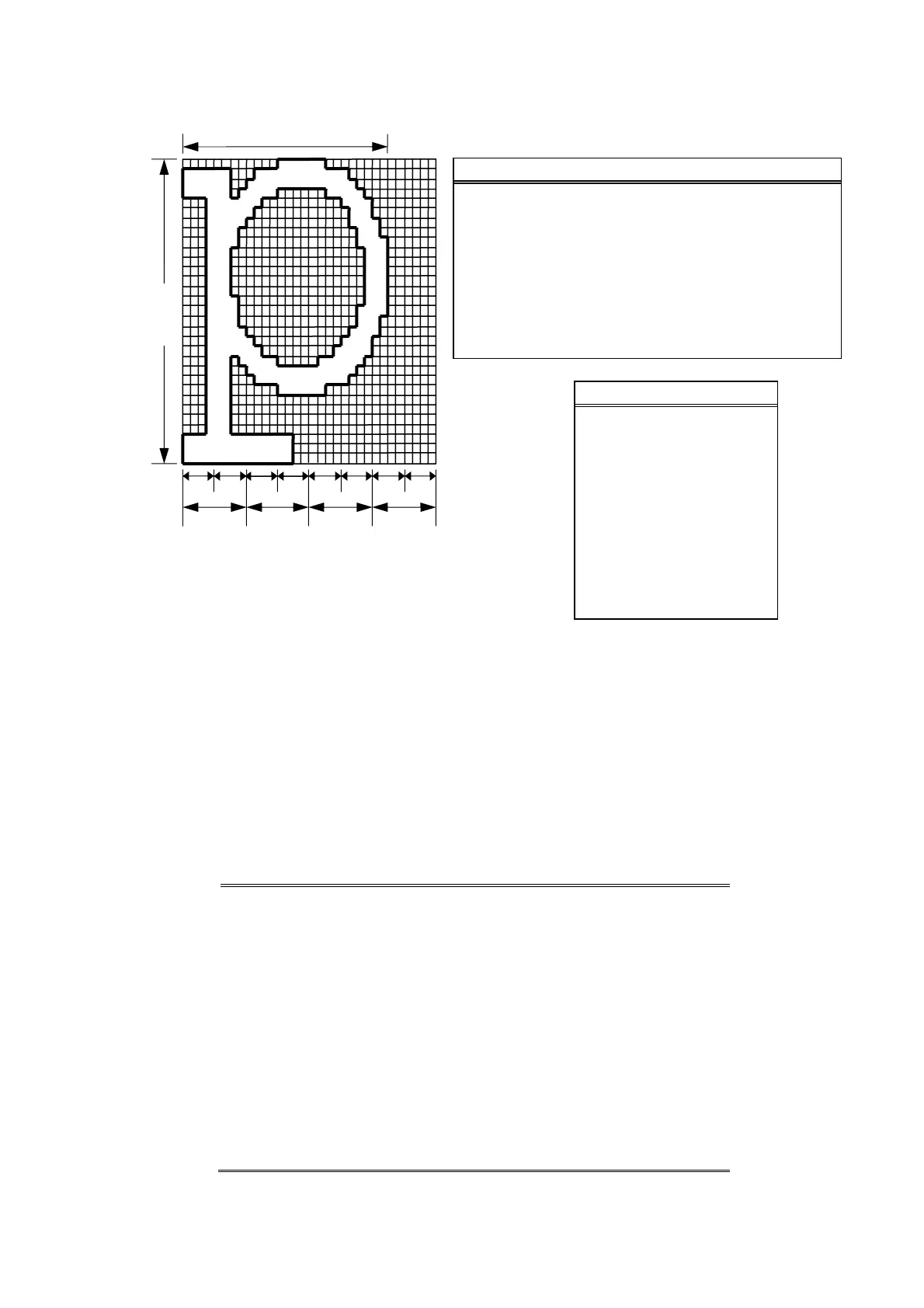

(1) The writable character data to be stored is separated into four dot units and sent in
above-mentioned order (1
→ 248). (Upper digit: “3”)
(2) The data of writable characters to be stored is 30H to 3FH.
(3) The minimum unit in the X direction is 8 dots. Dots with no data are transmitted as data
0.
(4) The data count of writable characters to be stored must be as follows:
Data count of writable characters to be stored =
{(No. of char. width dots + 7)/8} × No. of char. height dots × 2
* The value in the brackets is rounded down to the nearest whole number.
[Hex. mode]
(1) The writable character data to be stored is separated into eight dot units and sent in the
following order (1
→ 124).
(2) The data of writable characters to be stored is 00H to FFH.
(3) The minimum unit of character width is 8 dots. Dots with no data are transmitted as data
0.
(4) The number of bytes of the writable character to be stored must be as follows:
The number of bytes of the writable character to be stored =
{(No. of char. width dots + 7)/8} × No. of char. height dots
* The value in the brackets is rounded down to the nearest whole number.
8
4 4 4 4 4 4 4 4
Char.
height
31 dots
Char. width 26 dots
8 8 8
