7 TROUBLESHOOTING

204 Paper Misfeed

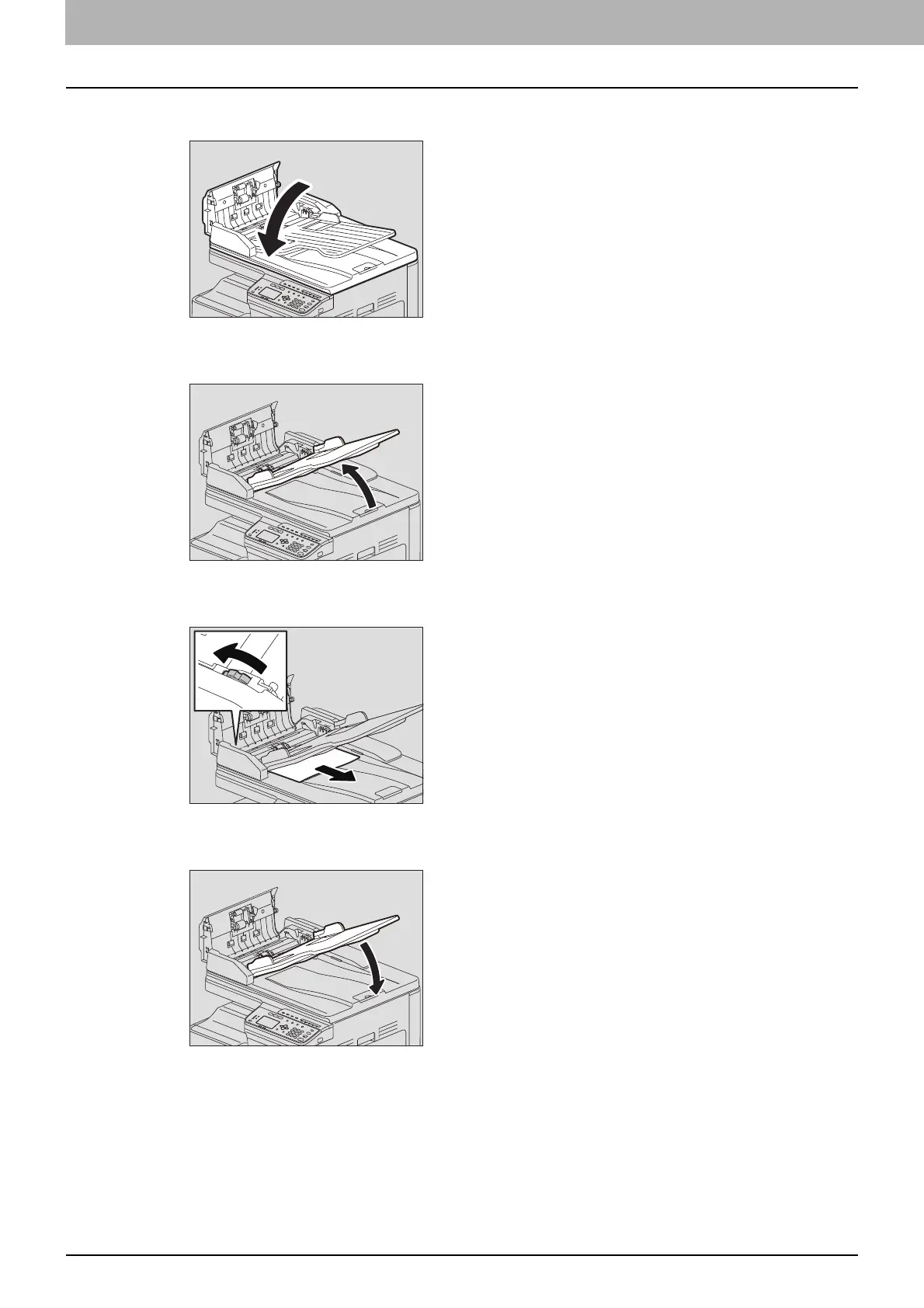

Close the Reversing Automatic Document Feeder.

Raise the feeder tray.

Turn the dial to remove the misfed original.

Lower the feeder tray.
