Toshiba E-STUDIO520 Service Handbook

© 2005 - 2007 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO520/523/600/603/720/723/850/853
ADJUSTMENT
3 - 45
3

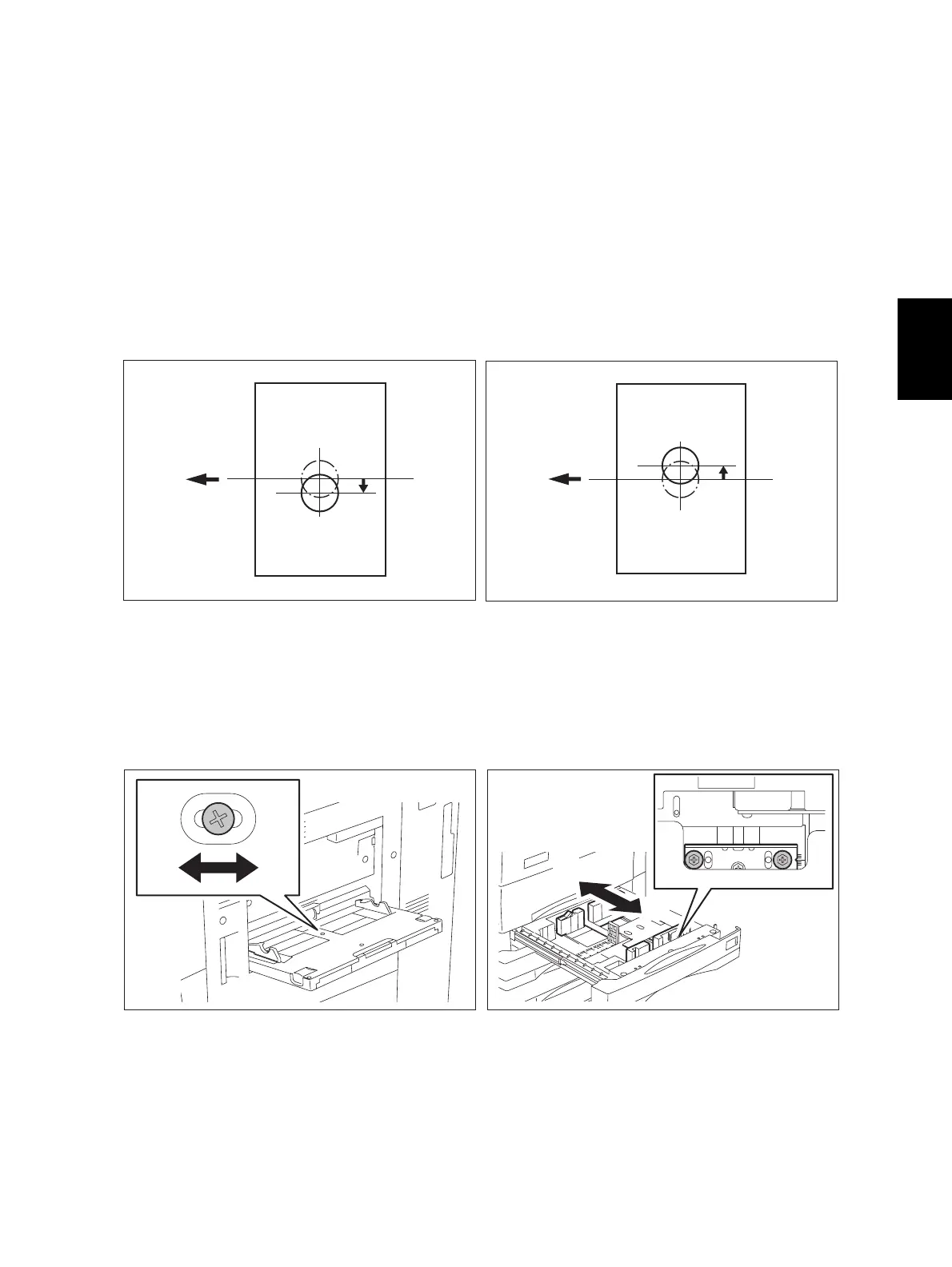

3.8 Adjustment of the Paper Feeding System
3.8.1 Sheet sideways deviation caused by paper feeding
<Procedure>
The center of the printed image shifts to the front
side. -> Move the guide to the front side when
feeding paper from the bypass tray or the drawer.
Move the front cover to the rear side when feed-
ing paper from the Tandem LCF. (Arrow (A) direc-
tion in the lower figure).
The center of the printed image shifts to the rear
side. -> Move the guide to the rear side when
feeding paper from the bypass tray or the drawer.
Move the front cover to the front side when feed-
ing paper from the Tandem LCF. (Arrow (B) direc-
tion in the lower figure).
Fig. 3-39
Fig. 3-40
Bypass feeding
1) Loosen the screen.
2) Move the entire guide to the front or rear side.
3) Tighten the screw.
Drawer feeding
1) Loosen 2 screws.
2) Move the entire guide to the front or rear side.
3) Tighten the screws.
Fig. 3-41 Fig. 3-42
Feeding direction
Center
[
Rear
]
[
Front
]
Feeding direction
Center
[
Rear
]
[
Front
]
(
A
)(
B
) (
B
)
(
A
)
05/04
