Toshiba E-STUDIO520 Service Handbook

© 2005 - 2007 TOSHIBA TEC CORPORATION All rights reserved e-STUDIO520/523/600/603/720/723/850/853
ADJUSTMENT
3 - 89
3
3.16.2 LCF slant adjustment
Compensate the slant of LCF by the adjusting the stoppers.
<Procedure>
(1) Pull out the LCF from the equipment.
(2) Turn 2 screws and adjust the stoppers.
Turn to the right: Stopper moves downward.
Turn to the left : Stopper moves upward.
Note: Note:
When moving the equipment, need to move the stopper upward.

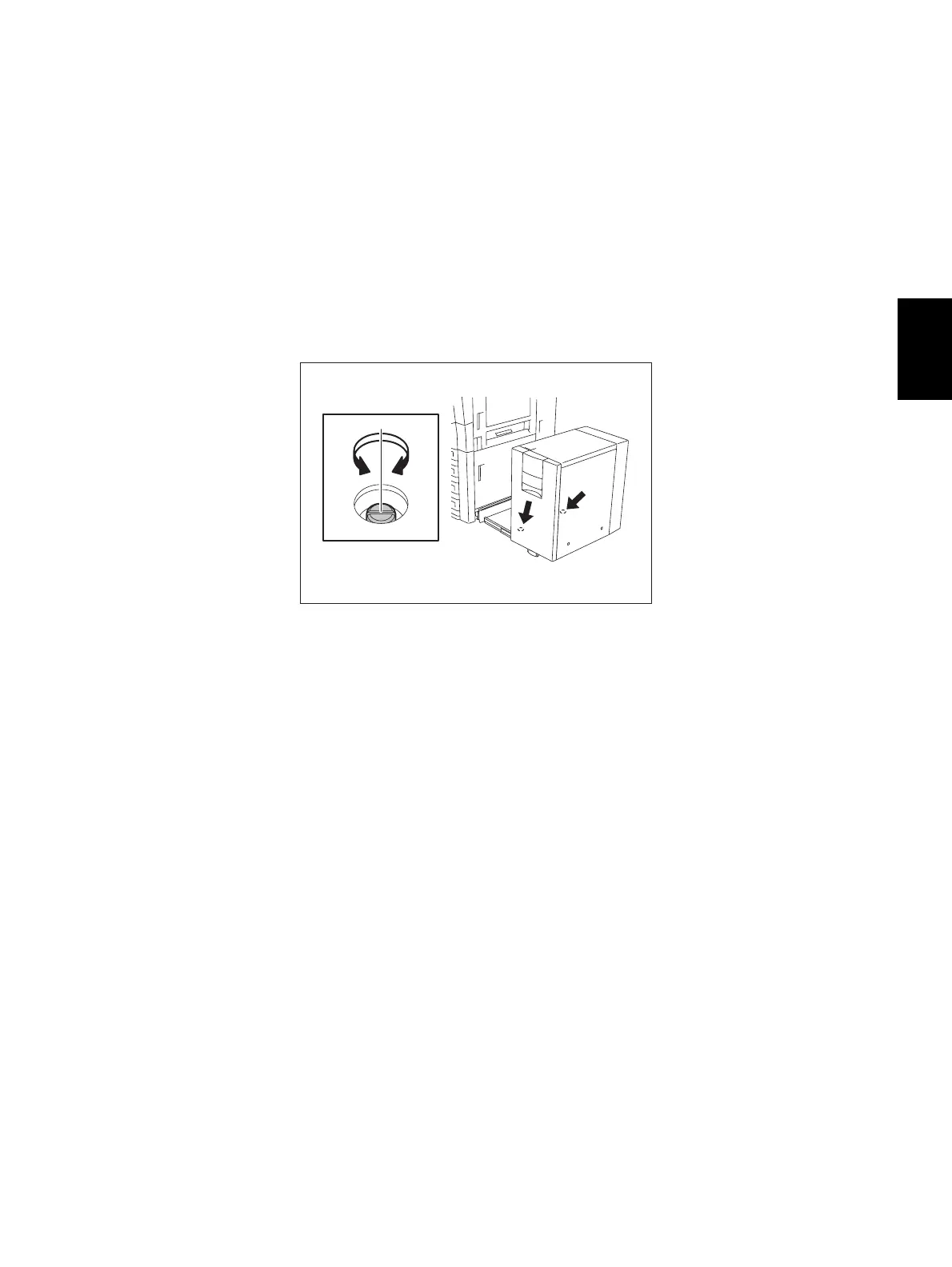

Fig. 3-99
