3.6 Memory Test 3 Diagnostic Programs
Pattern Size: Choose the pattern size – BYTE, WORD, DWORD or ALL.
Percent (%): Choose the percentage of the defined range of the memory to
be tested.
Time Limit(h): Choose or Input the time (hour) of the defined range of the
memory to be tested.
Time Limit(m): Choose or Input the time (minute) of the defined range of
the memory to be tested.
Subtest 03 Patterns
This test item is to check whether the system memory includes base memory and
extended memory that could be accessed correctly through writing and reading

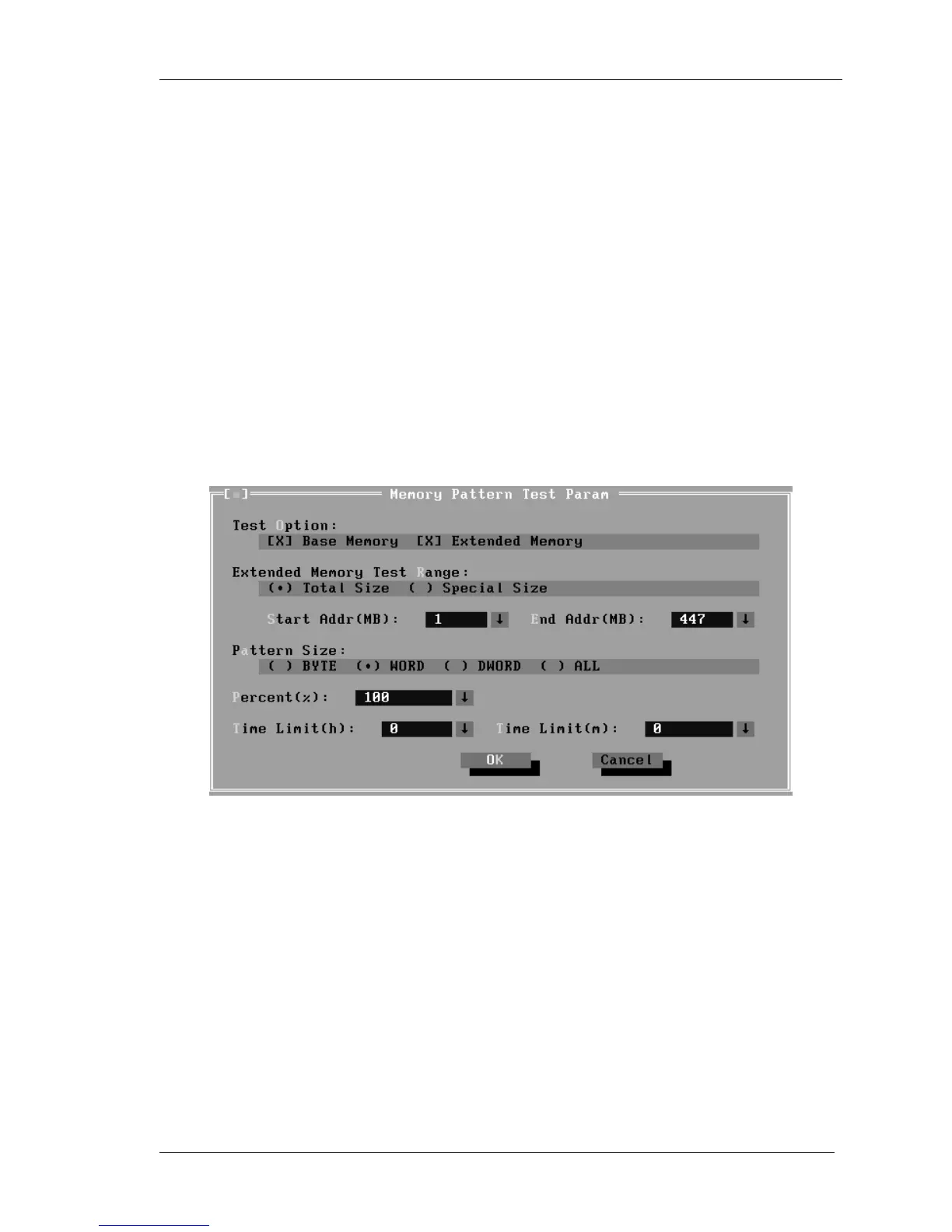

with a series of designed pattern data. Below is the parameter setting dialog
window.
Test Option: Choose the Memory part to take the test– Base Memory or
Extended Memory.
Extended Memory Test Range: Specify the test coverage range of
Extended Memory. If user chooses Total Size, it means that the whole
Extended Memory will be tested. Although user can input the parameter
into other select box, but the selected result is invalid. If user chooses
Special Size, the test of Extended Memory will be taken according to the
coverage range that user chooses or time.
Extended Memory Start Address (MB) & Extended Memory End
Address (MB): Set the range of extended memory that is to be tested, the
test coverage would be based on the setting and the value in ‘Percent (%)
mentioned at below.
QosmioF40/F45，dynabook Qosmio F40 Maintenance Manual
35
