4 Replacement Procedures 4.24 Speakers
4.24 Speakers
Removing the Speakers
Remove the Speakers according to the following procedures and Figure 4-40.
1. Remove one M2.5x4 white flat head screw securing the left speaker.
2. Remove two M2.5x4 white flat head screws securing the right speaker.
3. Remove the left and right speakers.
M2 5x4 white flat head screw.
Left speaker
Right speaker
Left speaker cable
Right speaker cable

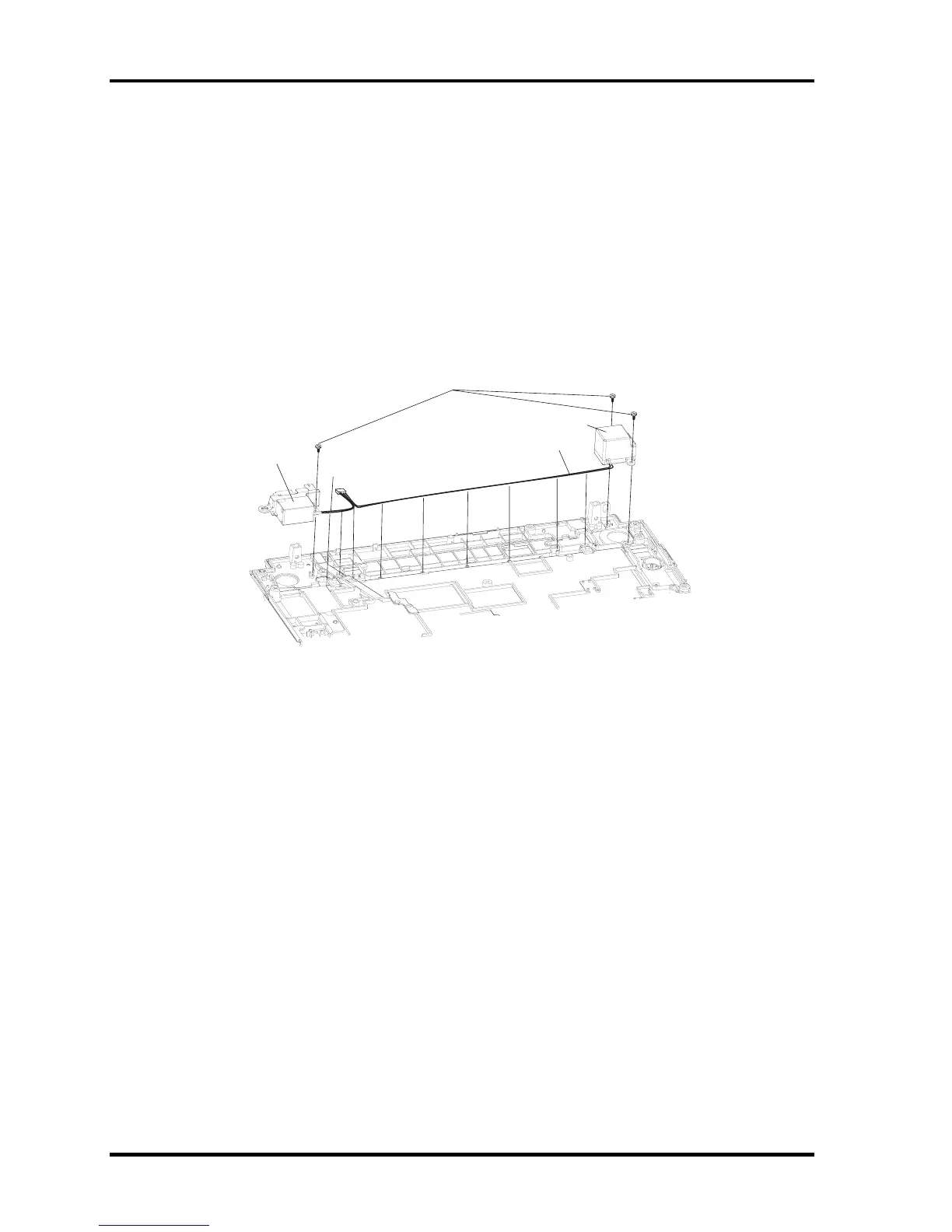

Figure 4-40 Removing the speakers
Installing the Speakers
Install the speakers according to the following procedures and Figure 4-40.
1. Seat the left and right speaker in the correct position.
2. Route the speaker cable in the wire guide.
3. Secure the left speaker with one M2x4 white flat head screw.
4. Secure the right speaker with two M2x4 white flat head screws.
4-72 Qosmio F40/F45 Maintenance Manual
