4.19 FL Inverter Board 4 Replacement Procedures
4.19 FL Inverter Board
Removing the FL Inverter Board
Remove the FL inverter board according to the following procedures and Figures 4-34.
1. Remove one M2.5x4 white flat head screw.
FL inverter board
LCD FL cable/
HV cable
M2 5x4 white
flat head screw
.

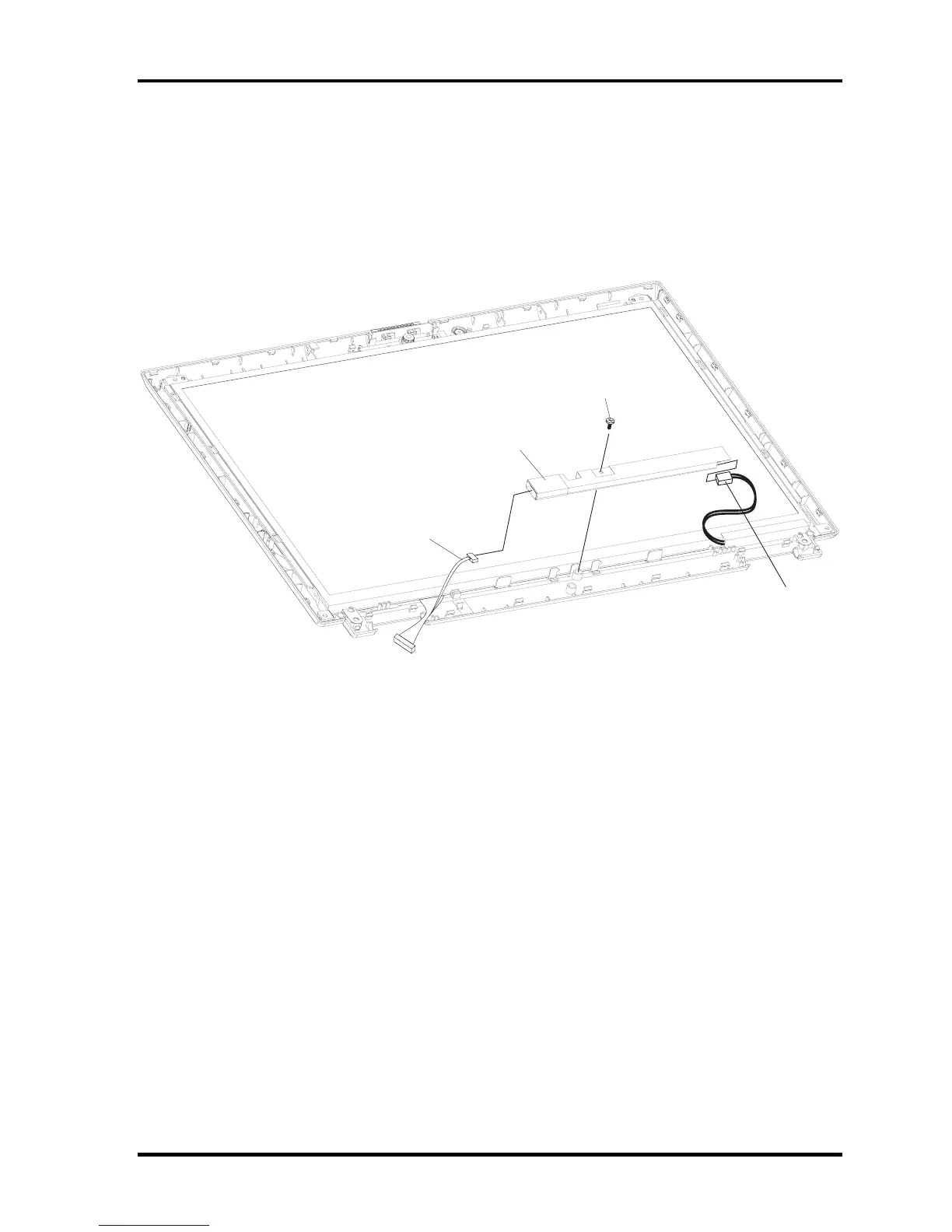

Figure 4-34 Removing the FL inverter board
2. Lift the LCD module, FL inverter board and disconnect the LCD/FL cable from the
LCD/FL connector.
3. Disconnect the HV cable from the HV connector and remove the FL inverter board.
Qosmio F40/F45 Maintenance Manual 4-61
