4 Replacement Procedures 4.7 Wireless LAN Card
4 1
4.7 Wireless LAN Card
Removing the Wireless LAN Card
Remove the wireless LAN card according to the following procedures and Figure 4-16.
CAUTION: Do not touch the connectors on the wireless LAN card and in the computer
with your bare hands. Wireless LAN cards can fail if they are contaminated with sweat,
natural oils, etc. from your hands.
1. Disconnect the three antenna cables with tweezers.
2. Remove the two M2x3 white bind screws securing the wireless LAN card.
3. Pull the wireless LAN card up and out at an angle.
Black
Gray
White
1
2
3
Wireless LAN card
M2x3 white bin screw
Antenna cable

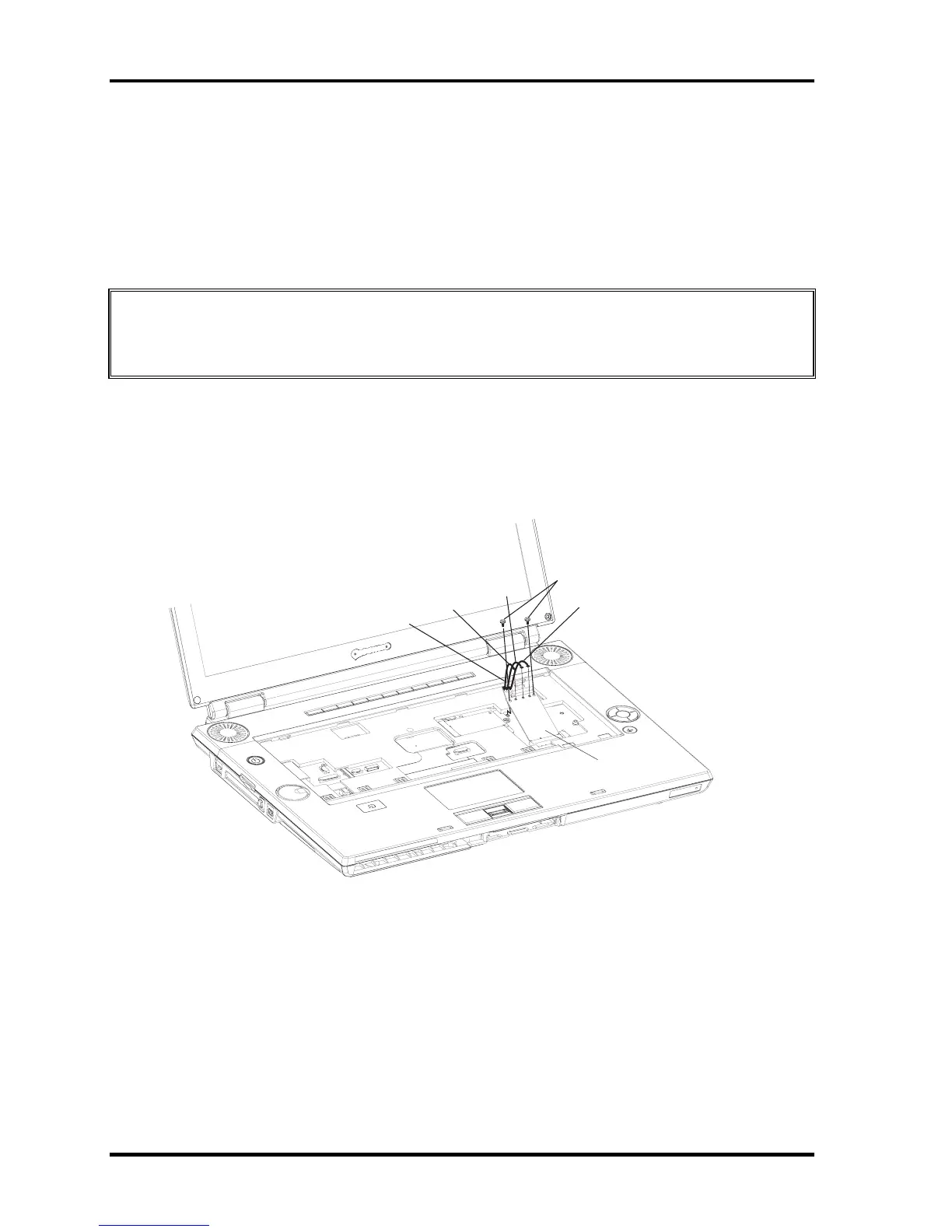

Figure 4-16 Removing the wireless LAN card
4-34 Qosmio F40/F45 Maintenance Manual
