3 Diagnostic Programs 3.10 Peripheral

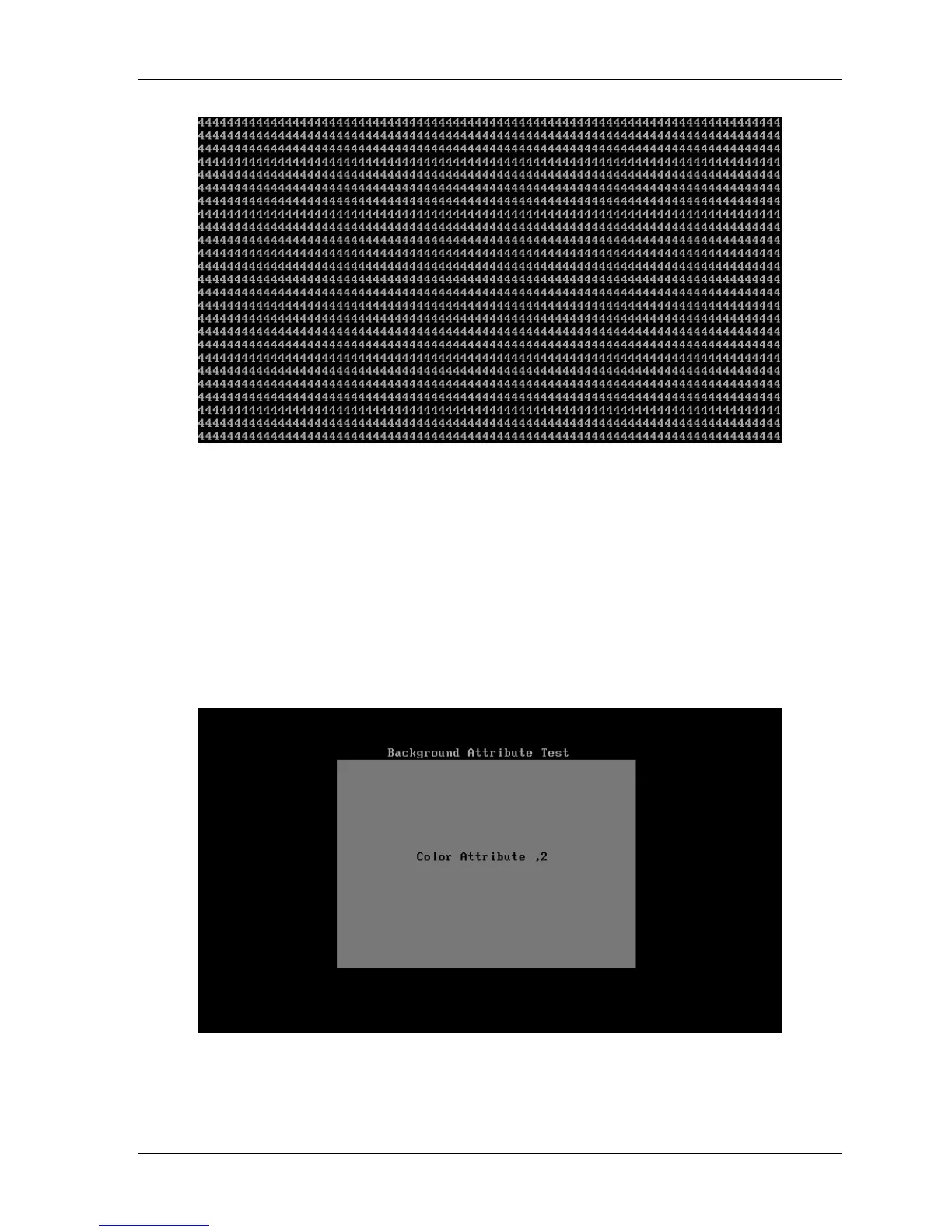

4. Text Color
This test item is to check whether all 16 colors foreground and all 8 colors
background works normally in VGA text mode.
The bit4-6 of the attribute byte of a character defines 8 background colors (black,
blue, green, cyan, red, brown, magenta, and light gray), and the bit0-3 defines 16
foreground colors (dark gray, light blue, light green, light cyan, light red, light
magenta, yellow, and white besides the above 8 colors).
In the test, user is required to respond according to the instruction in the screen.
5. 80 * 25 Text Mode
This test item is to check whether 80*25 Text Mode works normally.
46
QosmioF40/F45，dynabook Qosmio F40 Maintenance Manual
