4.2 HDD 4 Replacement Procedures
3. Remove the HDD and 2
nd
HDD pack by pulling on the tab attached to the pack,
following the direction of the arrows.
NOTE: Do not disassemble the HDD pack when it is working normally. Disassemble
or replace the HDD pack only if it fails.
4. Place the HDD pack on a flat surface (such as a desk), and remove the two M3x4
black flat head screws with M3x4 black head screws.
5. Place the HDD pack on a flat surface (such as a desk), and remove the chassis.
M3x4 black
flat head screw
HDD Chassis
HDD
M3x4 black
flat head screw

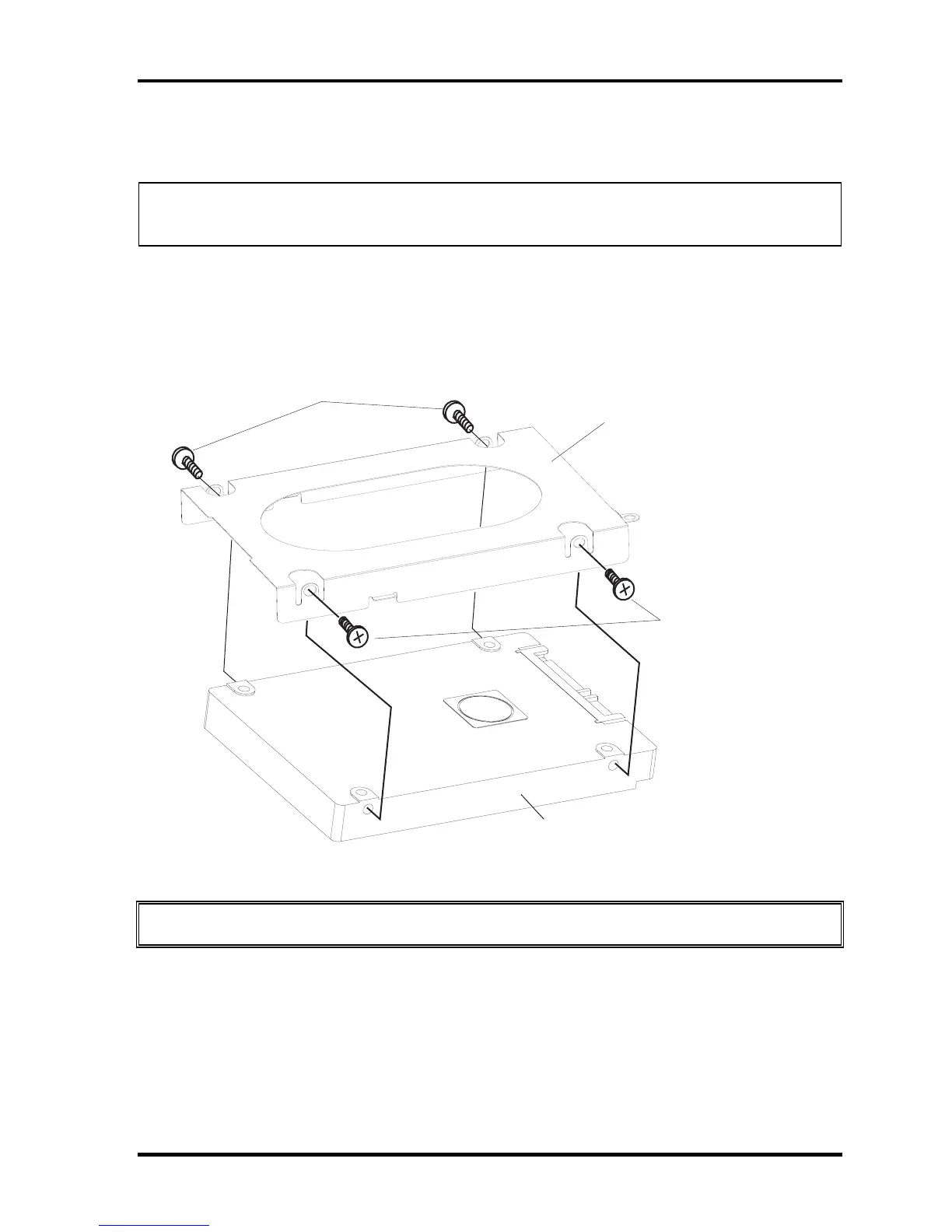

Figure 4-7 Removing the HDD chassis
CAUTION: Do not apply pressure to the top or bottom of the drive.
Qosmio F40/F45 Maintenance Manual 4-19
