4.10 Top Cover 4 Replacement Procedures
9. Disconnect the switch board flat cable from CN16.
10. Disconnect the speaker cable from CN3.
11. Lift up the top cover.
CN9
CN1000
CN11
CN15
CN13
CN16
Latch
CN3
Speaker cable
Touchpad flat cable
Switch board flat cable
Volume board flat cable
Bluetooth card cable
FLICA flat cable
LED board flat cable
M2 5x8 black flat head screw.

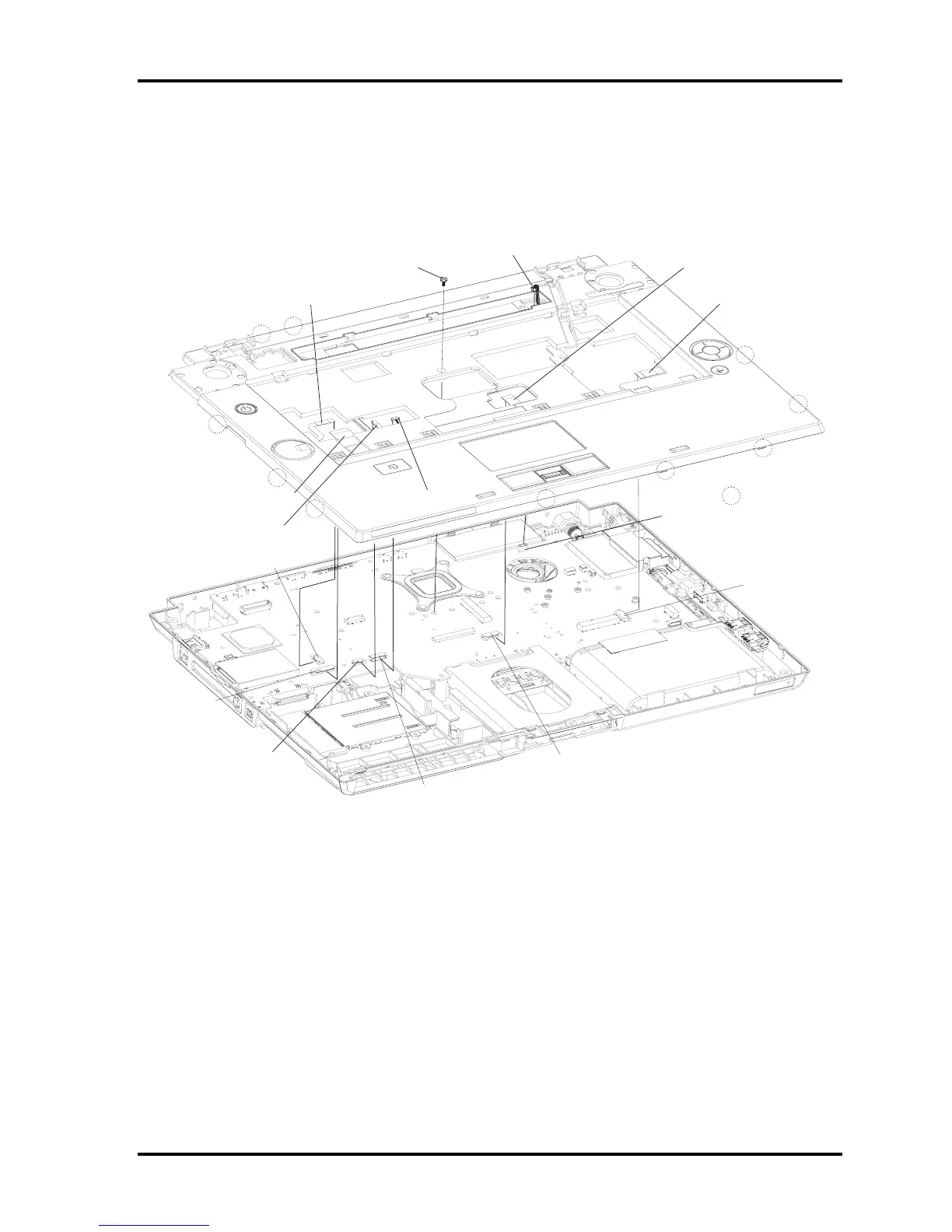

Figure 4-21 Removing the top cover
12. Release the following 10 latches on the switch cover, in that order:
- Three Left latches
- Two right latches
- Three front latches
- two rear latches
13. Lift up the top cover.
Qosmio F40/F45 Maintenance Manual 4-41
