E6581528
A-5
1

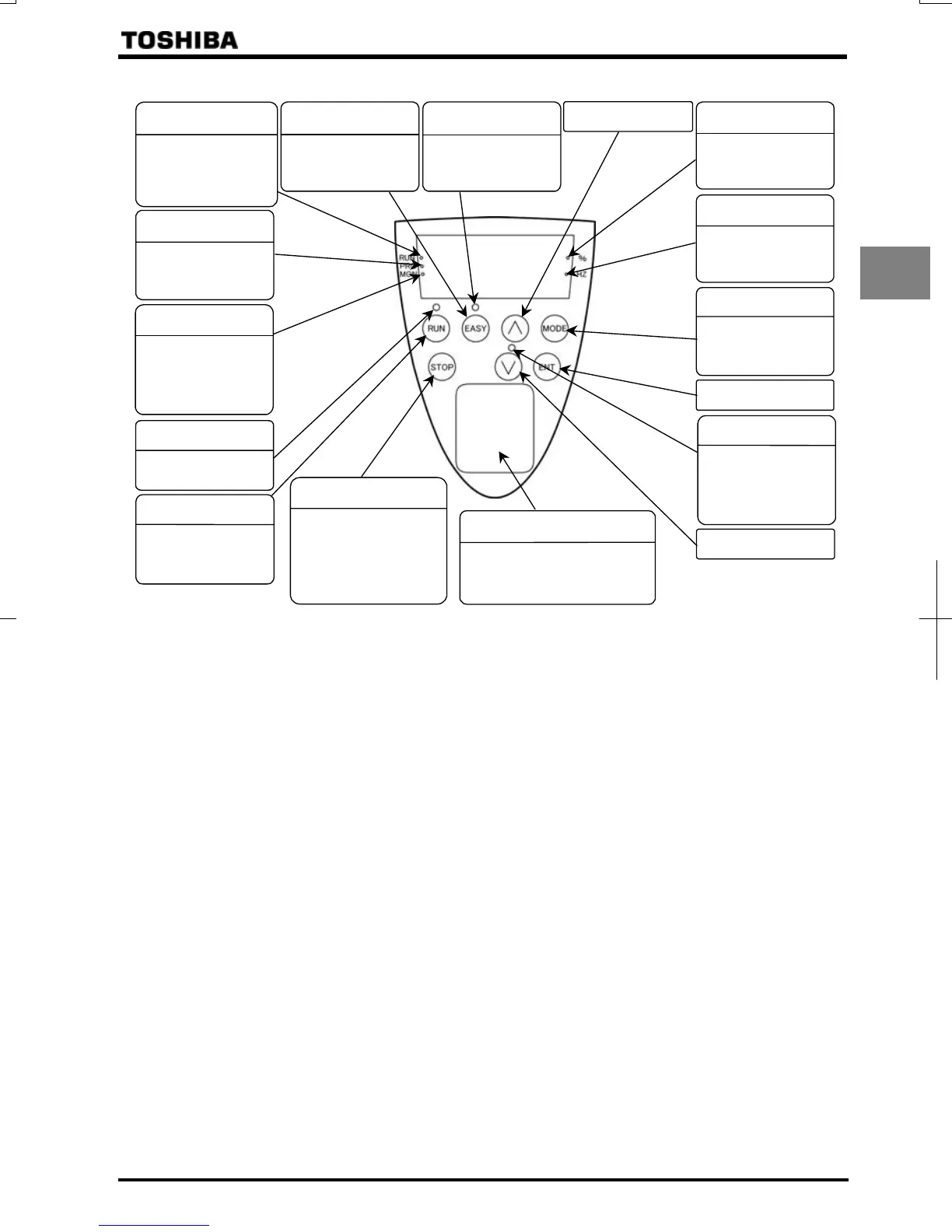

Operation panel
RUN key lamp
Lights when the RUN
key is enabled.
RUN key
Pressing this key while
the RUN key lamp is lit
starts the operation.
Pressing this key while the
RUN key lamp is lit
causes the motor to make
a deceleration stop. Press
the key twice to reset the
inverter after a trip.
STOP key
Up/Down key lamp
With these keys, you
can set the operation
frequency while the
Up/Down key lamp is
lit. [Note 2]
2-wire RS485 connector. This
connector is used to connect an
optional device, such as an
extended control panel.
Up key
Down key
RUN lamp
Lights when an ON
command is issued but no
frequency signal is sent
out. It blinks when
operation is started.
MODE key
Displays the operation
frequency, a
parameter, the cause
of a failure
and so on.
MON lamp
Lights when the inverte
is in monitor mode.
Blinks when the inverte
is placed in trip record
display mode.
PRG lamp
Lights when the
inverter is in parameter
setting mode.
ENTER key
EASY key lamp
Lights when the EASY
key is enabled.
EASY key [Note 1]
Press this key to control
the function assigned
with a parameter.
% lamp
Lights when the unit
is %.
Hz lamp
Lights when the unit is
Hz.
Serial RS485 connector/cover
Note 1: ⇒ For details EASY Key functions, refer to Section 5.22.
Note 2: When parameter is set to , the operation frequency cannot be set even if this lamp is lit.
