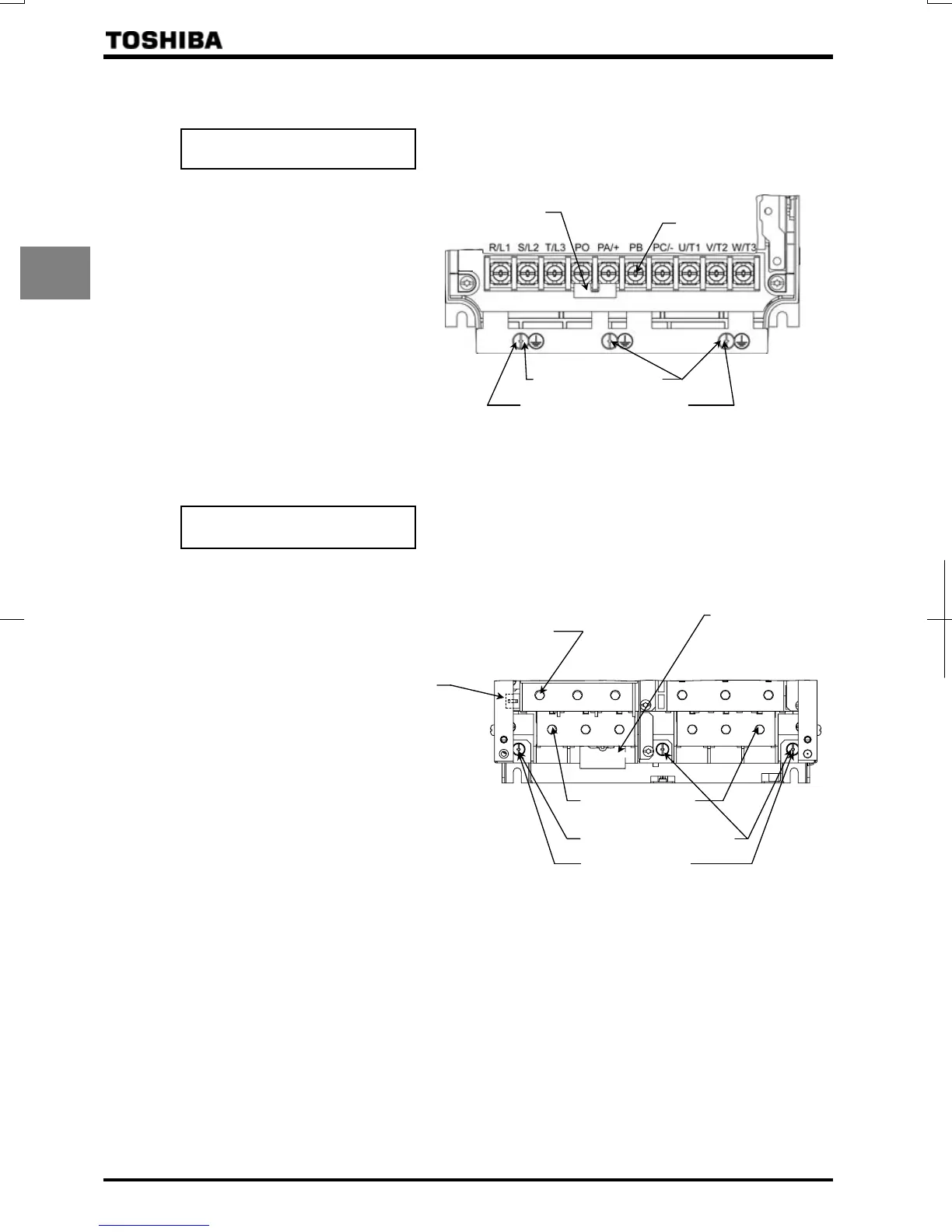

2) Main circuit terminal
M5 screw
Shorting-bar
Grounding terminal
(M5 screw)
Screw hole for EMC plate
PA/+POPE
R/L1 S/L2 T/L3 U/T1 V/T2 W/T3
PB PC/- PE
Shorting-bar
Hexagon socket
M10 screw
Grounding capacitor
switching switch
Grounding terminal
(M5 screw)
Screw hole for EMC plate
Grounding terminal
Hexagon socket
(M10 screw)
VFAS1-5015PM-5075PM
VFAS1-6022PL-6300PL
