E6581528
A-17
1
VFAS1-6110KPC, 6132KPC, 6160KPC
Power consumed by the fans
VFAS1 Power consumed by the fans
6110KPC, 6132KPC, 6160KPC 550 VA
6200KPC, 6250KPC, 6315KPC 1,110 VA
6400KPC, 6500KPC, 6630KPC 2,200 VA

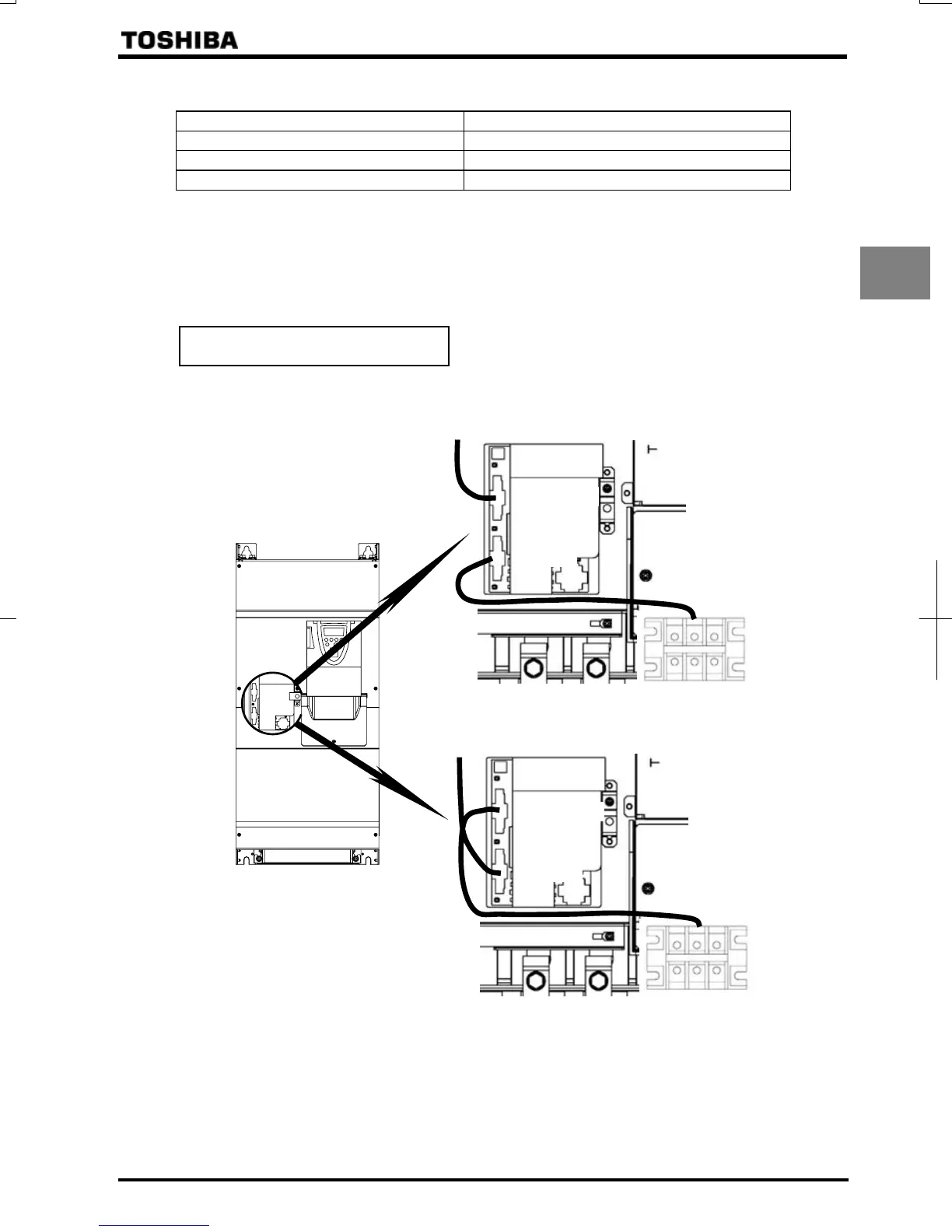

Connecting fans for a separate power supply
In order to remove the link between the fans and the transformer power supply and relocate it at terminals RO, SO,
TO, connectors X1 and X4 must be crossed as indicated on the diagrams below.
INPUT X1
INPUT X1
PARKING X4
PARKING X4
Factory wiring: Fans powered internally by R/L1, S/L2, T/L3
Modification for fans powered externally by R0, S0, T0
Terminals R0, S0, T0
Terminals R0, S0, T0
