• Function
These parameters are used to switch signals to be sent to the analog input terminals VI/II and AI2 (optional).
Ｓ3-CC
(Jog run)
Output frequency [Hz]
Forward run
Forward run
０
Set frequency
Panel key
RUN STOP RUN STOP RUN STOP

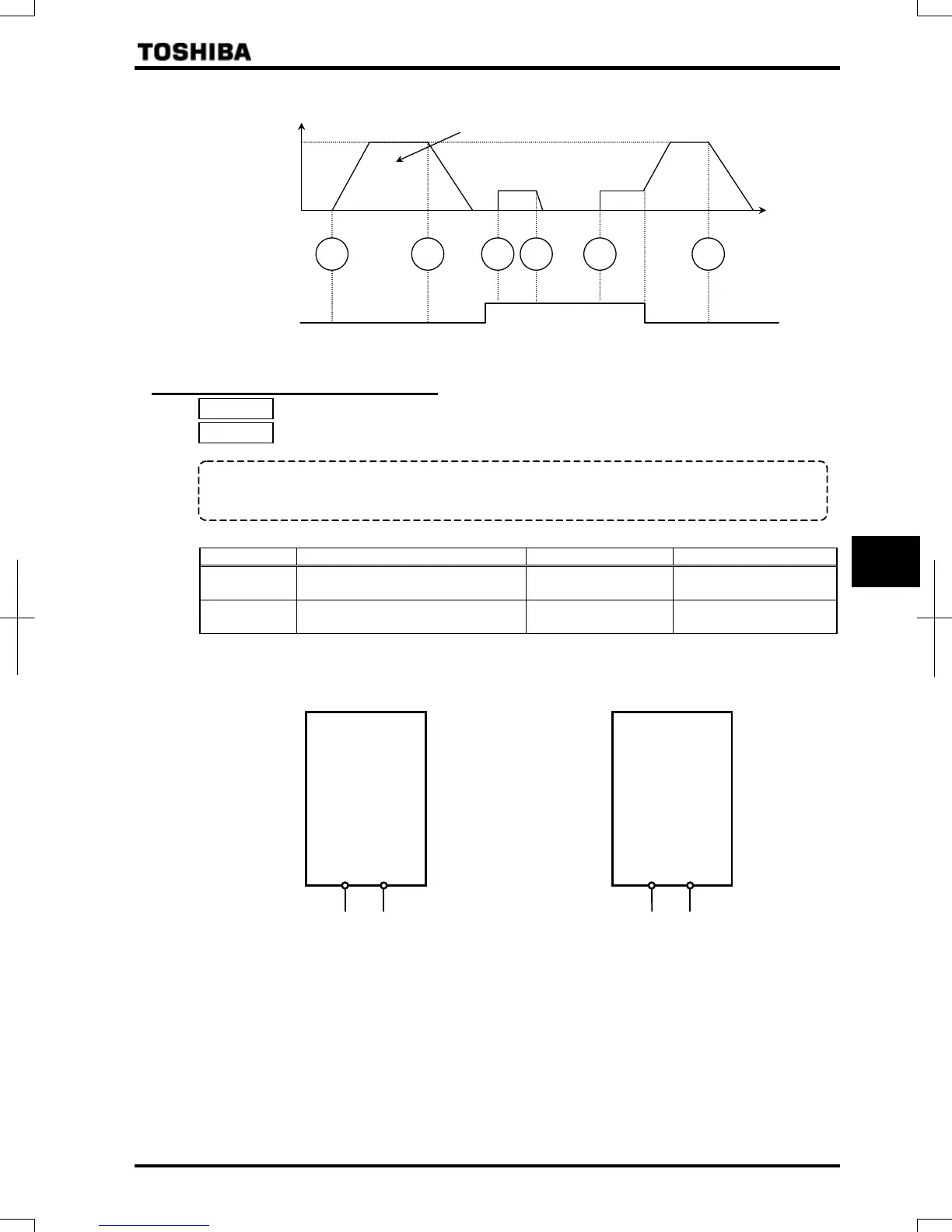

6.2.3 Analog input signal switching
 : Analog input VI/VII voltage/current switching
 : Analog input AI2 (optional circuit board) voltage/current switching
[Parameter setting]
Title Function Adjustment range Setting value
 Analog VI/VII voltage/current switching
: Voltage input
: Current input


Analog input AI2 (optional circuit board)
voltage/current switching
: Voltage input
: Current input

When using the analog input terminal VI/II
as a voltage input terminal (VI)
=
When using the analog input terminal VI/II
as a voltage input terminal (II)
=
CCA VI/II
0~10V input
CCA VI/II
0~20mA(4~20mA) input
CCA: Analog common
 For an explanation of input gain and bias adjustments, refer to Section 6.23.
