E6581386
E-17
5

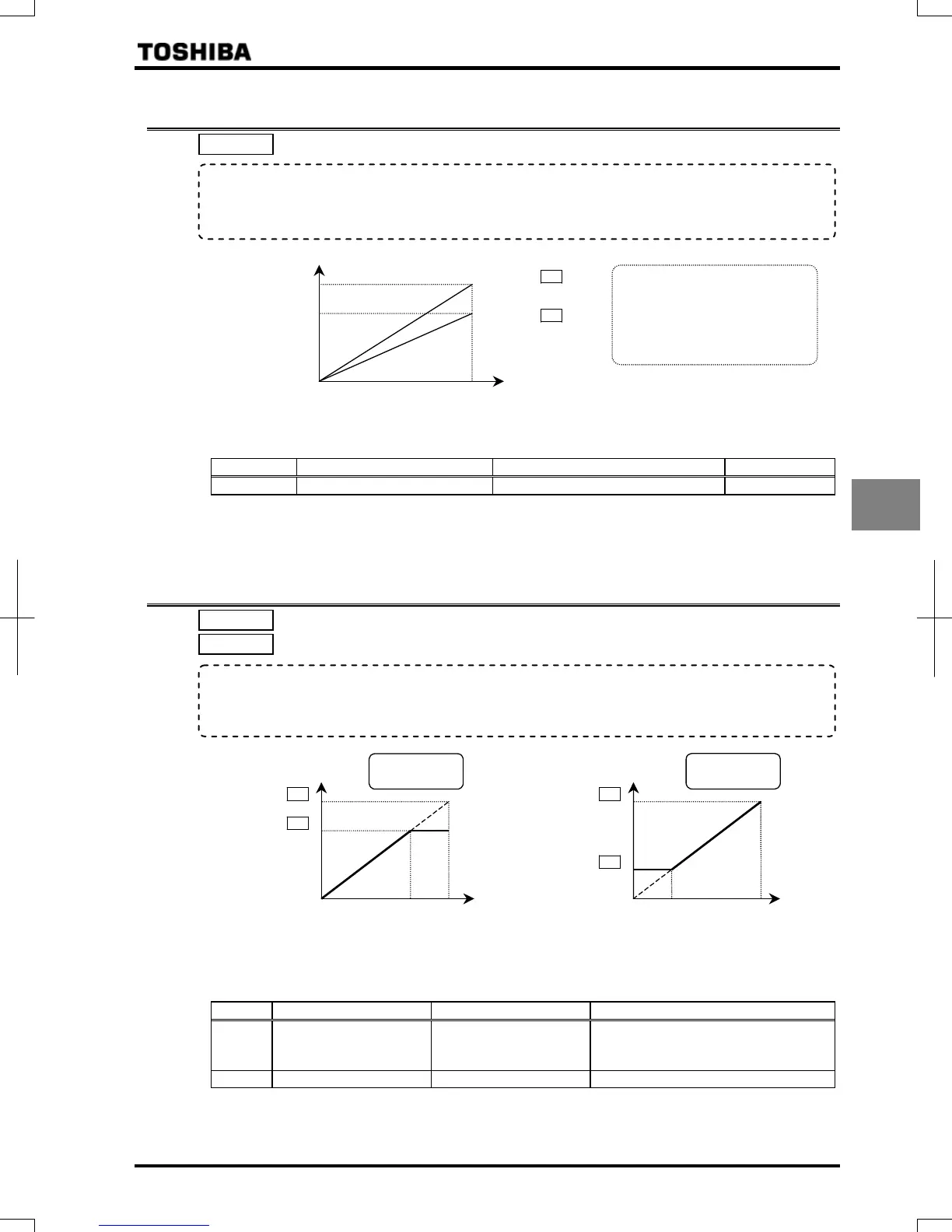

5.9 Maximum frequency
: Maximum frequency
Output frequency [Hz]
In case of =80Hz
In case of =60Hz
80Hz
60Hz
0 100% Frequency setting signal [%]
• This function determines the
maximum value in line with the
ratings of the motor and load.
• Maximum frequency cannot be
adjusted during operation. To
adjust, first stop the inverter.
If is increased, adjust the upper limit frequency as necessary.
[Parameter setting]
Title Function Adjustment range Default setting
Maximum frequency ~ Hz
Note: The output frequency is limited to a frequency 10.5 times as high as the base frequency (). Even if the
maximum frequency () or the upper limit frequency () is set above this frequency, this limitation is
imposed on the output frequency.
5.10 Upper limit and lower limit frequencies
: Upper limit frequency
: Lower limit frequency
Lower limit
frequency
0 100%
Output frequency [Hz]
Upper limit
frequency
0 100%
Output frequency [Hz]
Frequency
setting signal
Frequency
setting signal
Frequencies that go higher
than will not be output.
The output frequency cannot
be set at less than .
[Parameter setting]
Title Function Adjustment range Default setting
Upper limit frequency ~ Hz
Inverter with a model number ending with
-WN:
-WP:
Lower limit frequency ~ Hz
Note: The output frequency is limited to a frequency 10.5 times as high as the base frequency (). Even if the
maximum frequency () or the upper limit frequency () is set above this frequency, this limitation is
imposed on the output frequency.
• Function
1) Programs the range of frequencies output by the inverter (maximum output values).
2) This frequency is used as the reference for acceleration/deceleration time.
• Function
Programs the lower limit frequency that determines the lower limit of the output frequency and the upper limit
frequency that determines the upper limit of that frequency.
