VFPS1-2900P, 4132KPC～4220KPC
Power consumed by the fans
VFPS1 Power consumed by the fans
2900P, 4132KPC～4220KPC 700VA
4250KPC～4315KPC 1300 VA
4400KPC～4500KPC 1900 VA
4630KPC 2500 VA

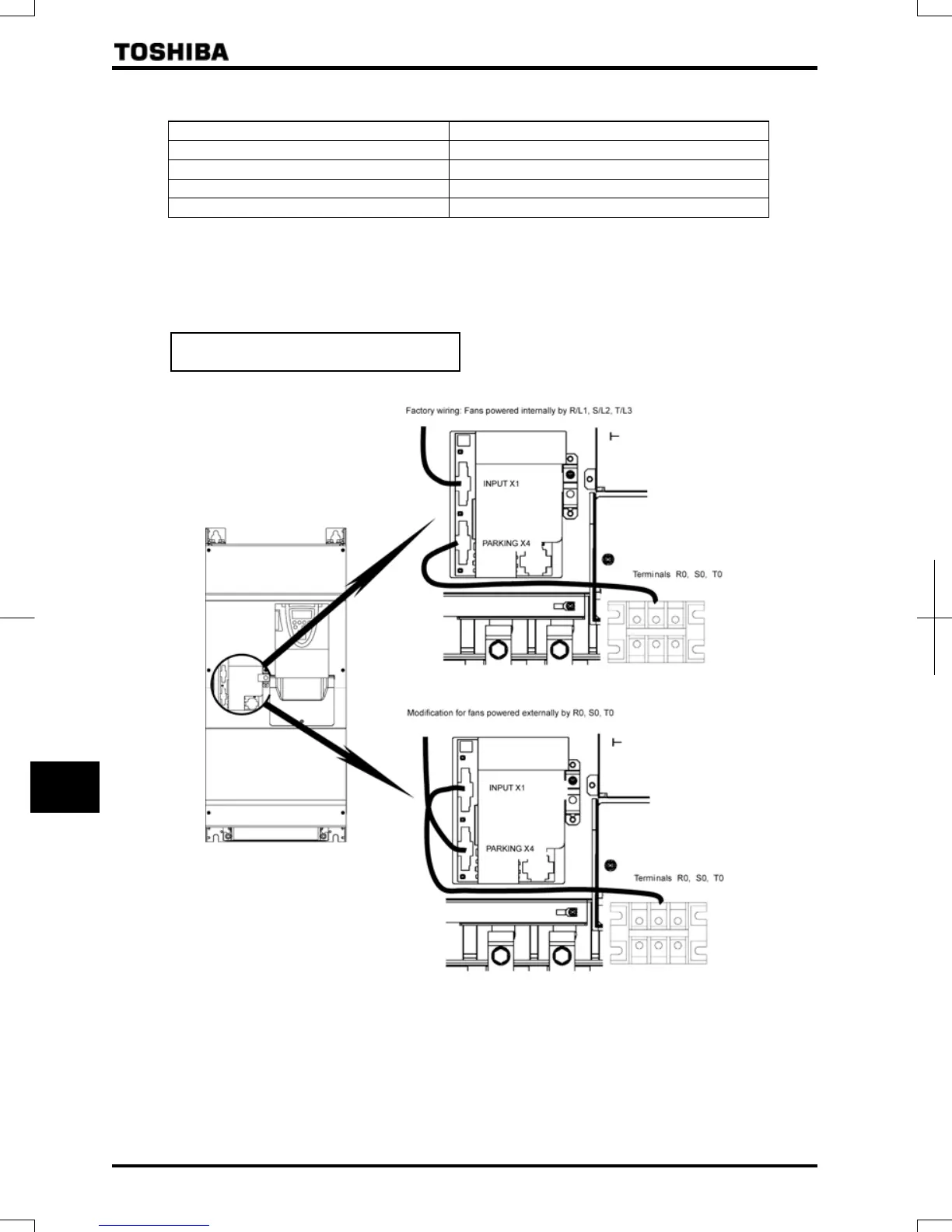

Connecting fans for a separate power supply
In order to remove the link between the fans and the transformer power supply and relocate it at terminals RO, SO,
TO, connectors X1 and X4 must be crossed as indicated on the diagrams below.
