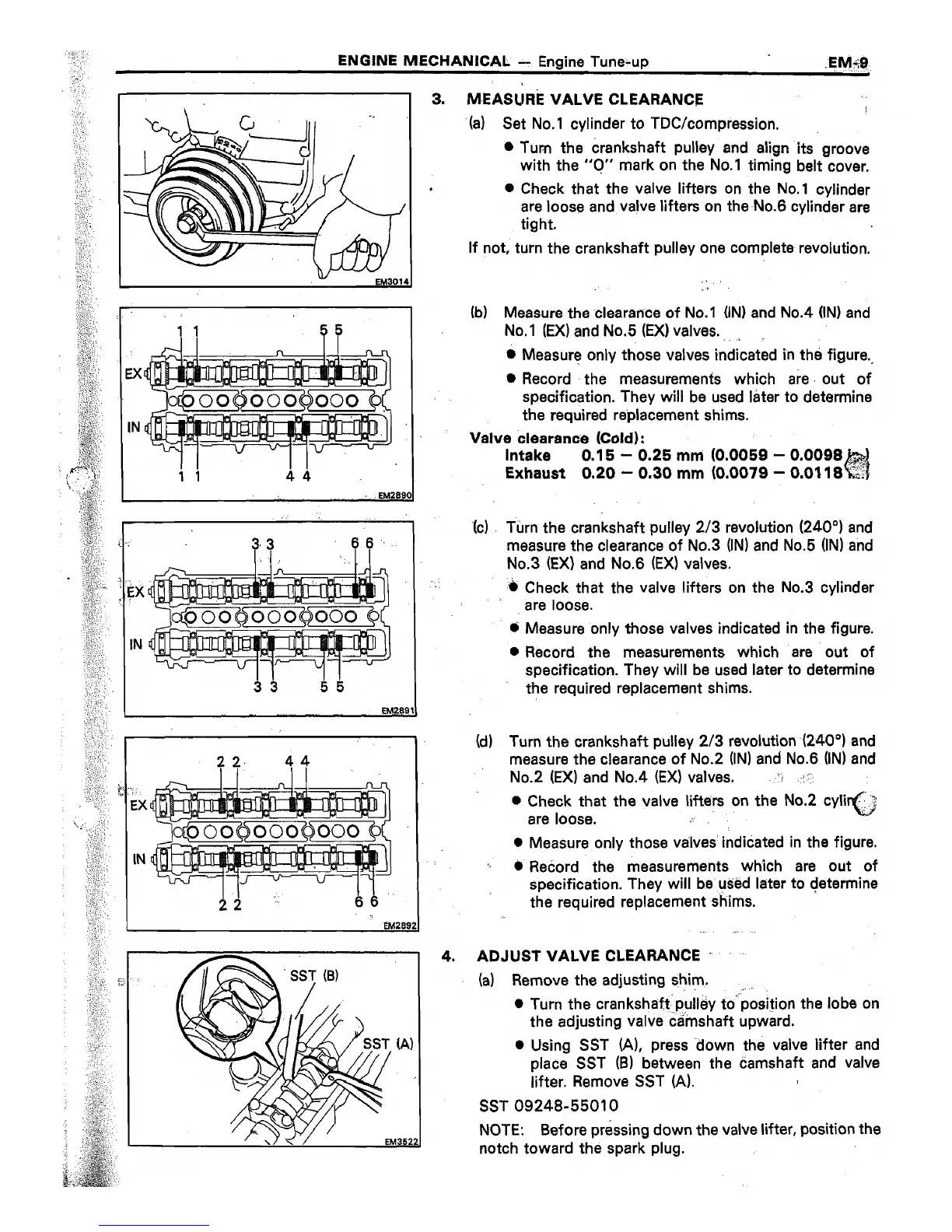

ENGINE MECHANICAL - Engine Tune-up
3.
*
MEA&E VALVE CLEARANCE
I
4.
(a) Set No.1 cylinder to TDC/compression.
l
Turn the crankshaft pulley and align its groove
with the “0” mark on the No.1 timing belt cover,
l
Check that the valve lifters on the No.1 cylinder
are loose and valve lifters on the No.6 cylinder are
tight.
If not, turn the crankshaft pulley one complete revolution.
. .
. .
(b) Measure the clearance of No.1 (INI and No.4 (IN) and
No.1 (EX) and No.5 (EX) valves.
. . . .
l
Measure only those valves indicated in the figure.,
0 Record the measurements which are. out of
specification. They will be used later to determine
the required reblacement shims.
Valve clearance (Cold) :
Intake 0.15 - 0.25 mm (0.0059 - 0.0098
Exhaust 0.20 - 0.30 mm (0.0079 - 0.0118
(c(c) Turn the crankshaft pulley 2/3 revolution (240”) and
measure the clearance of No.3 (IN) and No.5 (IN) and
No.3 (EX) and No.6 (EX) valves.
4 Check that the valve lifters on the No.3 cylinder
are loose.
0 Measure only those valves indicated in the figure.
l
Record the measurements which are out of
specification. They will be used later to determine
the required replacement shims.
(d) Turn the crankshaft pulley 2/3 revolution and
measure the clearance of No.2 (IN) and No.6 (IN) and
No.2 (EX) and No.4 (EX) valves. :
0 Check that the valve lifters on the No.2 cyli i,:..?
are loose.
c
.i
0 Measure only those valves indidated in the figure.
-I 0 Record the measurements which are out of
specification. They will be used later to determine
the required replacement shims.
ADJUST VALVE CLEARANCE .
(a) Remove the adjusting shim. ,
0 Turn the crankshaft.pulley position the lobe on
the adjusting valve camshaft upward.
0 Using SST (A), press down the valve lifter and
place SST (B) between the camshaft and valve
lifter. Remove SST (A).
SST 09248-55010
NOTE: Before pressing down the valve lifter, position the
notch toward the spark plug.
To Next Page
