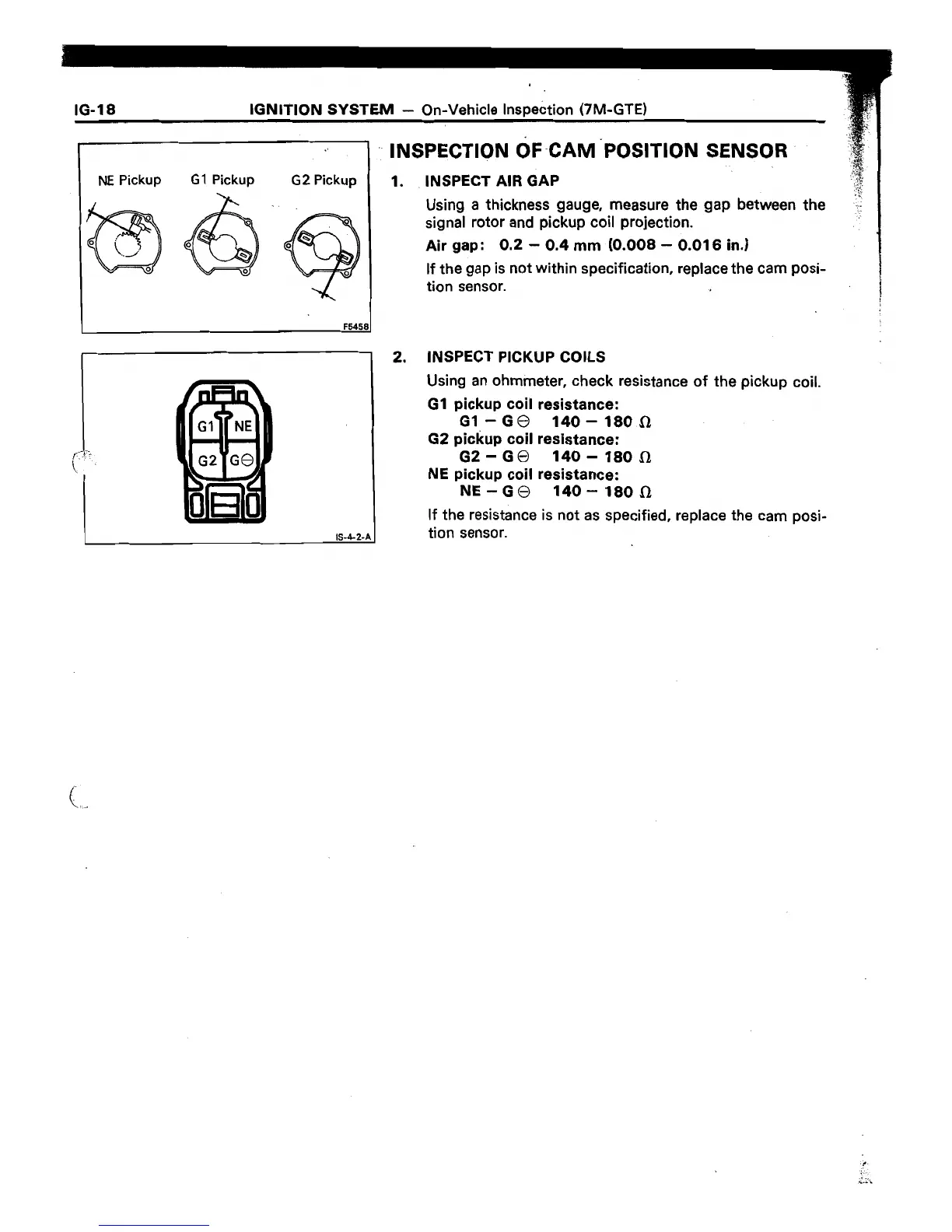

IGNITION SYSTEM - On-Vehicle Inspection (7M-GTE)
NE Pickup Gl Pickup G2 Pickup
INSPECTION dF -CAM .POSITION SENSOR
1. INSPECT AIR GAP
Using a thickness gauge, measure the gap between the
?
signal rotor and pickup coil projection.
Air gap:
0.2 - 0.4 mm (0.008 - 0.016 in.)
If the gap is not within specification, replace the cam posi-
tion sensor.
2. INSPECT PICKUP COILS
Using an ohmmeter, check resistance of the pickup coil.
Gl pickup coil resistance:
Gl -GQ 140-180n
62 pickup coil resistance:
G2-GO 140-180n
NE pickup coil resistance:
NE-GO 140-180n
If the resistance is not as specified, replace the cam posi-
tion sensor.
