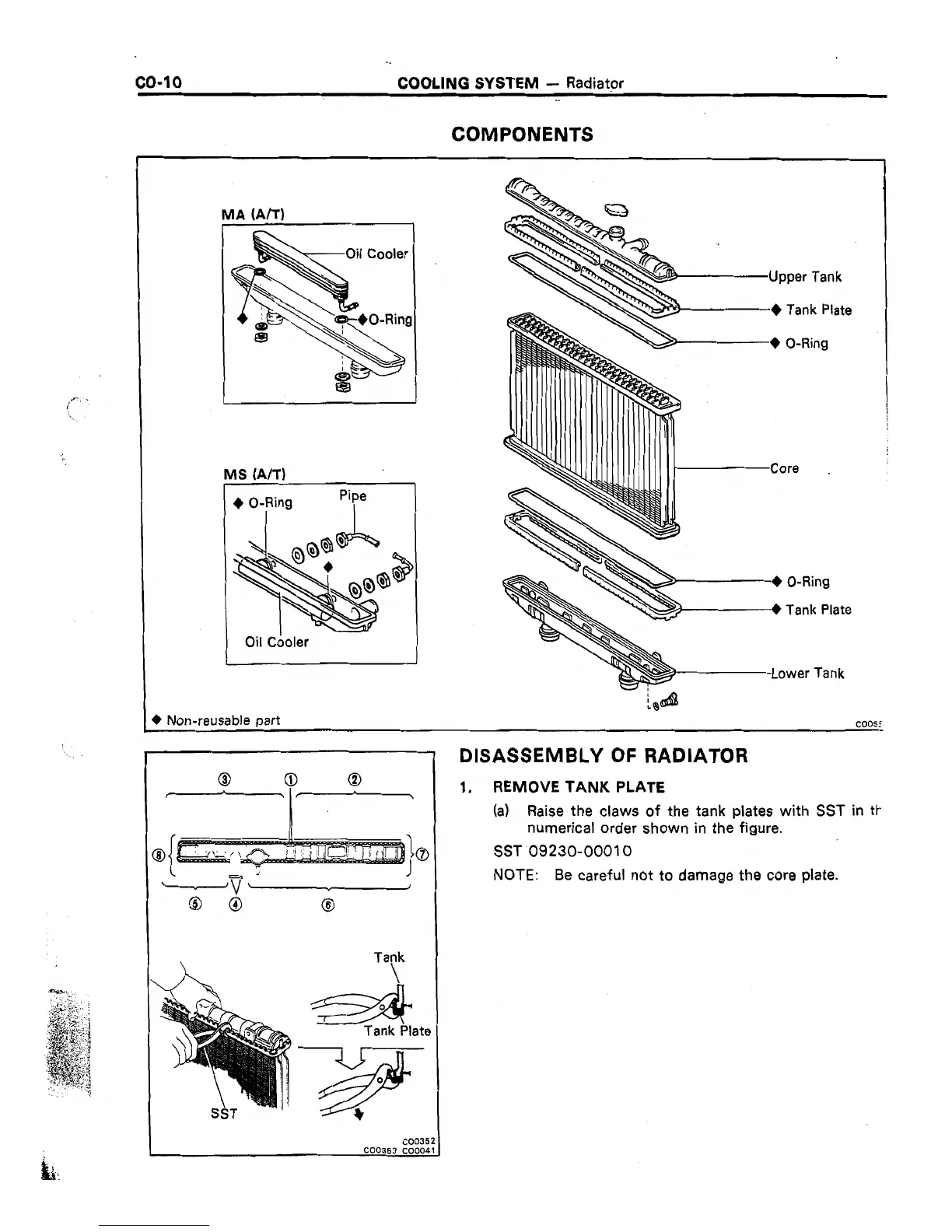

CO-IO
-.
COOLING SYSTEM - Radiatpr
. .
COMPONENTS
IA (A/T)
MS (A/T)
+ O-Ring
I
Oil Cooler
Pipe
I
1
Upper Tank
-+ Tank Plate
,+ 0-Rina
I I I I
I I I I I I I I I I I
ICore
Lower Tank
+ Non-reusable part
coo55
SST
- I
DISASSEMBLY OF RADIATOR
1. REMOVE TANK PLATE
(a)
Raise the claws of the tank plates with SST in tt-
numerical order shown in the figure.
SST 09230-00010
NOTE:
Be careful not to damage the core plate.
