normal
Position

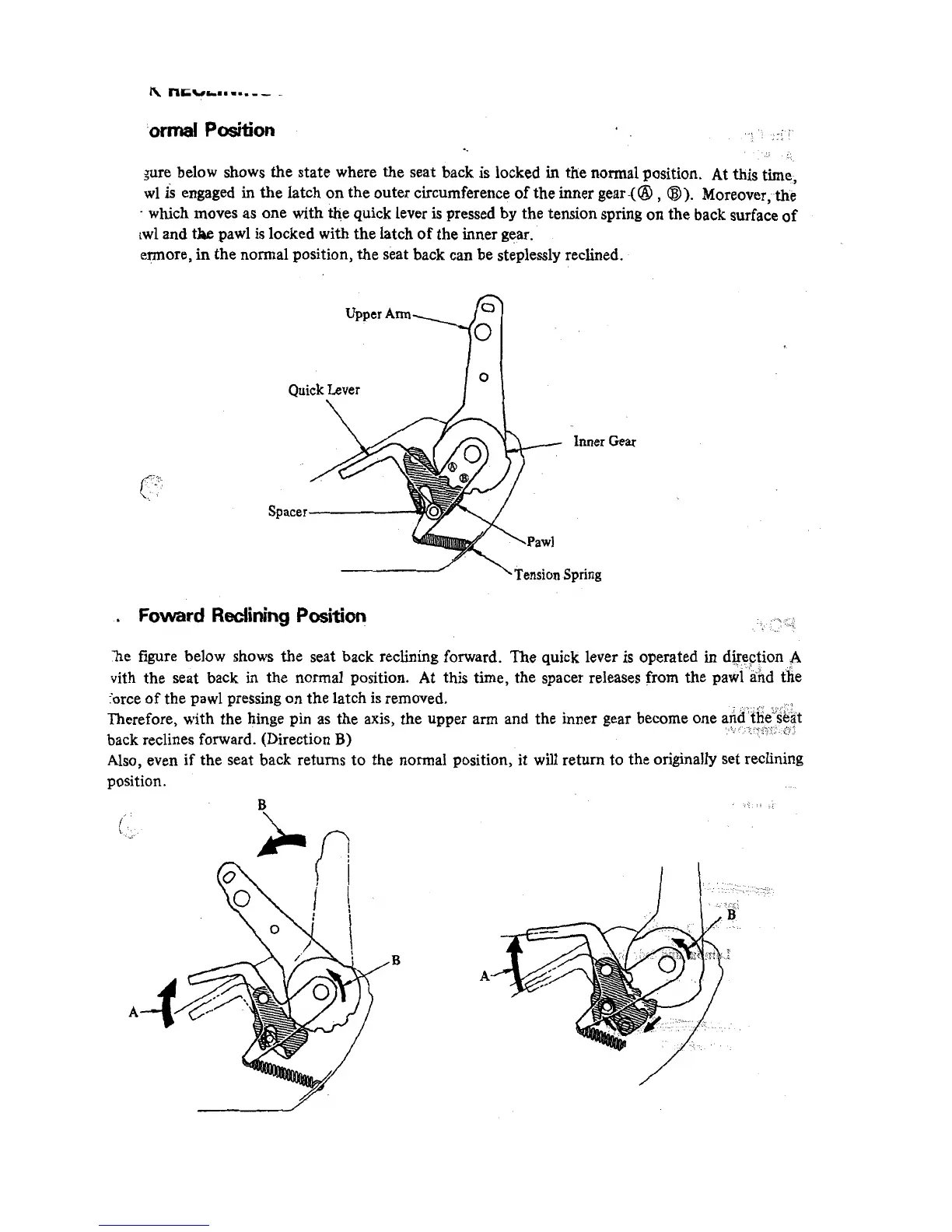

sre below shows the state where the seat back is locked in the normal position.
At this time,
wl is engaged in the latch on the outer circumference of the inner gear-(@ , @). Moreover, the
. which moves as one with the quick lever is pressed by the tension spring on the back surface of
twl and the paw1 is locked with the latch of the inner gear.
ermore, in the normal position, the seat back can be steplessly reclined.
Inner Gear
\Tension Spring
Foward Reclining Position
j . . ,, 1
-7
.
/ .
he figure below shows the seat back reclining forward.
The quick lever is operated in direction A
vith the seat back in the normal position.
At this time, the spacer releases from the paGl”and the
force of the paw1 pressing on the latch is removed.
, ,:. =
Therefore, with the hinge pin as the axis, the upper arm and the inner gear become one and[theW$bat
.- (;?
._l/“~.., IL
back reclines forward. (Direction B)
Also, even if the seat back returns to the normal position,
it will return to the originally set reclining
position.
