1.0 kw
Type
1.4 kw
Ty/pe
1.0 kw Type
ST000
ST028
1.4 kw Type
STOX
ST021
. _r >“‘&+a&&+&*
5,

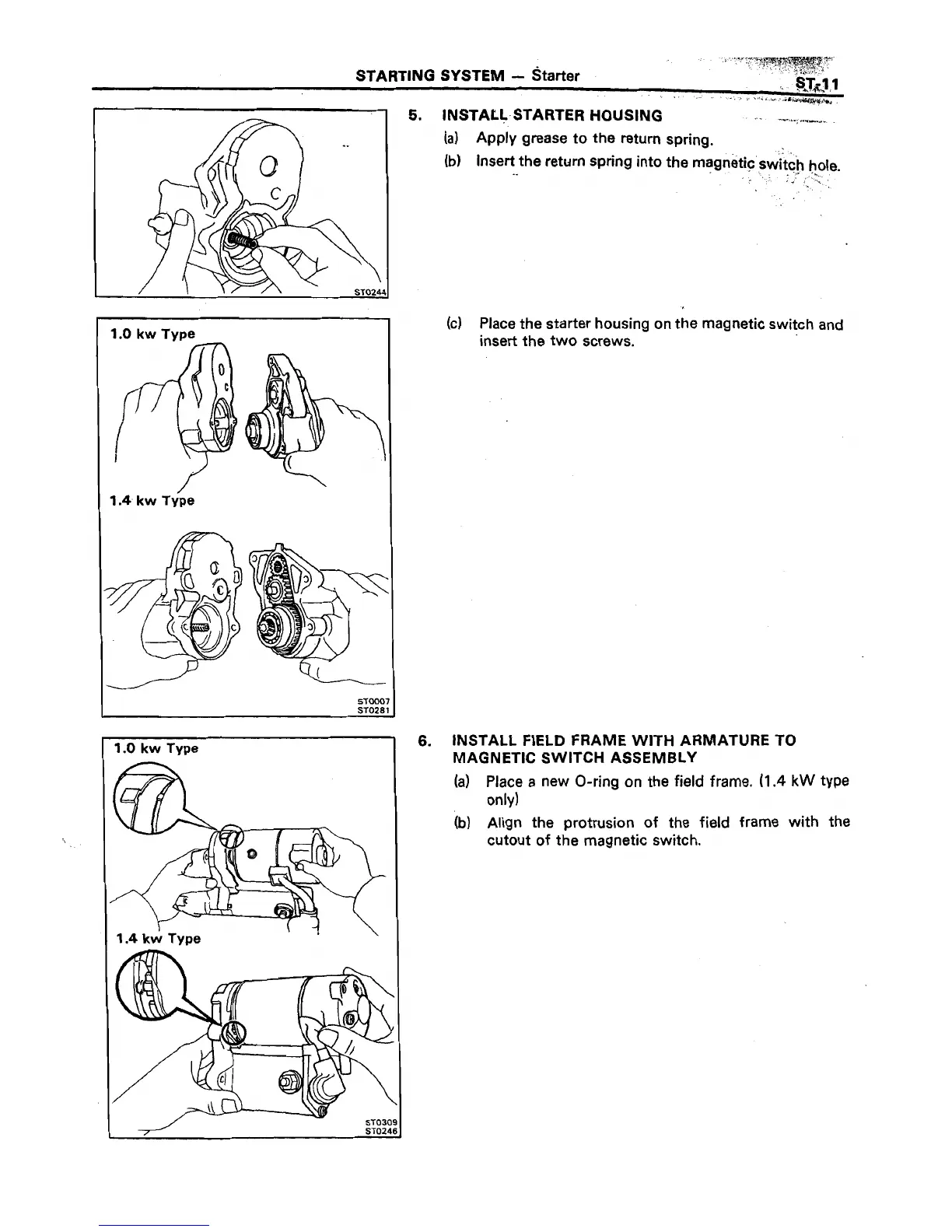

INSTA&STARTER HOUSING
.
---y “..,W.“..
(a) Apply grease to the return spring.
lb) Insert the return spring into the magn&ic s&$ hole.
-_
^ , +. ,.:‘::;
6.
(c) Place the starter housing on the magnetic switch and
insert the two screws.
INSTALL FIELD FRAME WITH ARMATURE TO
MAGNETIC SWITCH ASSEMBLY
(a) Ha;; a new O-ring on the field frame. (1.4 kW type
(b) Align the protrusion of the field frame with the
cutout of the magnetic switch.
To Next Page
