STARTING SYSTEM - Starter
Bearing
-
‘Clutch Assembly
STOPB:
Pinion Gear

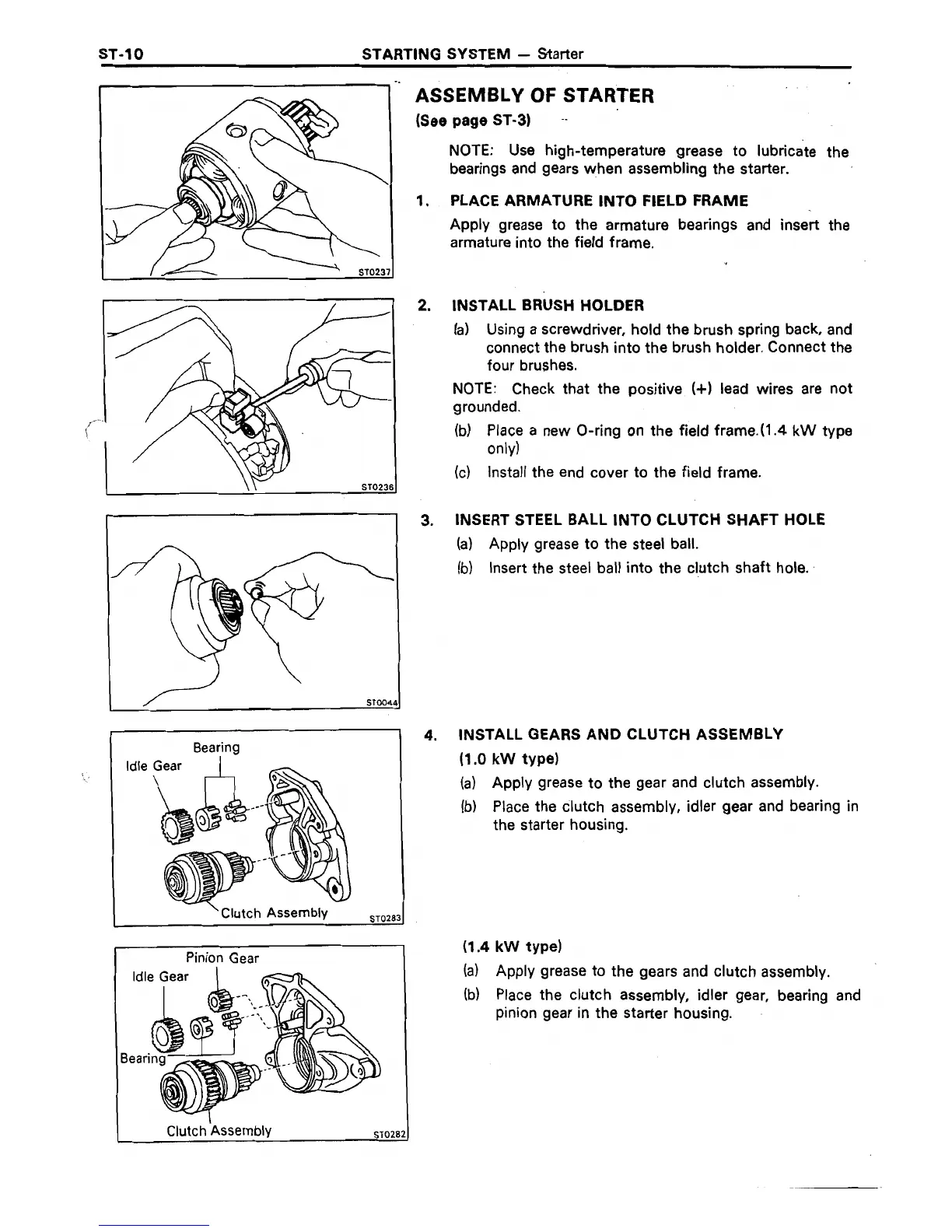

ASSEMBLY OF STARTER
(See page ST-31 --
NOTE: Use high-temperature grease to lubricate the
bearings and gears when assembling the starter.
PLACE ARMATURE INTO FIELD FRAME
_
Apply grease to the armature bearings and insert the
armature into the
field frame.
INSTALL BRUSH HOLDER
(a) Using a screwdriver, hold the brush spring
back, and
connect the brush into the brush holder. Connect the
four brushes.
NOTE: Check that the positive (+I lead wires are not
grounded.
(b) a new O-ring on the field frame.ll.4 kW type
(c) Install the end cover to the field frame.
INSERT STEEL BALL INTO CLUTCH SHAFT HOLE
(a) Apply grease to the steel ball.
(b)
Insert the steel ball into the clutch shaft hole.
INSTALL GEARS AND CLUTCH ASSEMBLY
(1.0 kW type)
(a) Apply grease to the gear and clutch assembly.
(b)
Place the clutch assembly, idler gear and bearing in
the starter housing.
(1.4 kW type)
(a) Apply grease to the gears and clutch assembly.
(b) Place the clutch assembly, idler gear, bearing and
pinion gear in the starter housing.
Clutchkssembly
