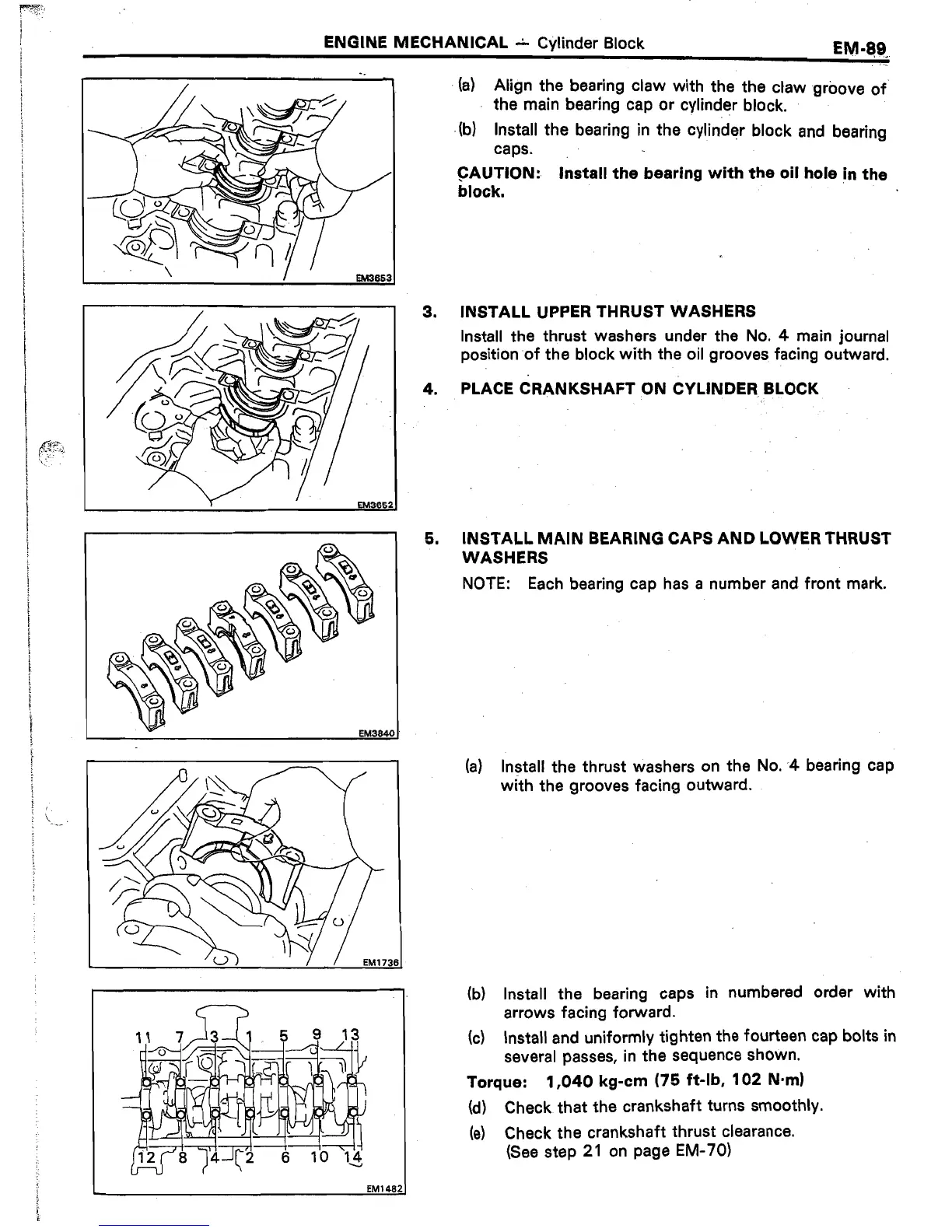

ENGINE MECHANICAL A Cylinder Block
EM-@-
3.
4.
5.
(a)
Align the bearing claw with the the claw -groove of.
the main bearing cap or cylind,er block.
(b)
Install the bearing in the cylinder block and bearing
caps.
GAUTION:
Install the bearing with the oil hole in the
block.
INSTALL UPPER THRUST WASHERS
Install the thrust washers under the No. 4 main journal
position of the block with the oil grooves facing outward.
PLACE &ANKSHAFT ON CYLINDER BLOCK
INSTALL MAIN BEARING CAPS AND LOWER THRUST
WASHERS
NOTE: Each bearing cap has a number and front mark.
(a) Install the thrust washers on the No. -4 bearing cap
with the grooves facing outward.
(b) Install the bearing caps in numbered order with
arrows facing forward.
(c) Install and uniformly tighten the fourteen cap bolts in
several passes, in the sequence shown.
Torque: 1,040 kg-cm (75 ft-lb, 102 N.mI
(d) Check that the crankshaft turns smoothly.
(e) Check the crankshaft thrust clearance.
(See step 21 on page EM-701
To Next Page
