COGLING SYSTEM -
.
__ co- 1.3::
.-
1 SST
r
i
Tank
Plate
Punch I
I

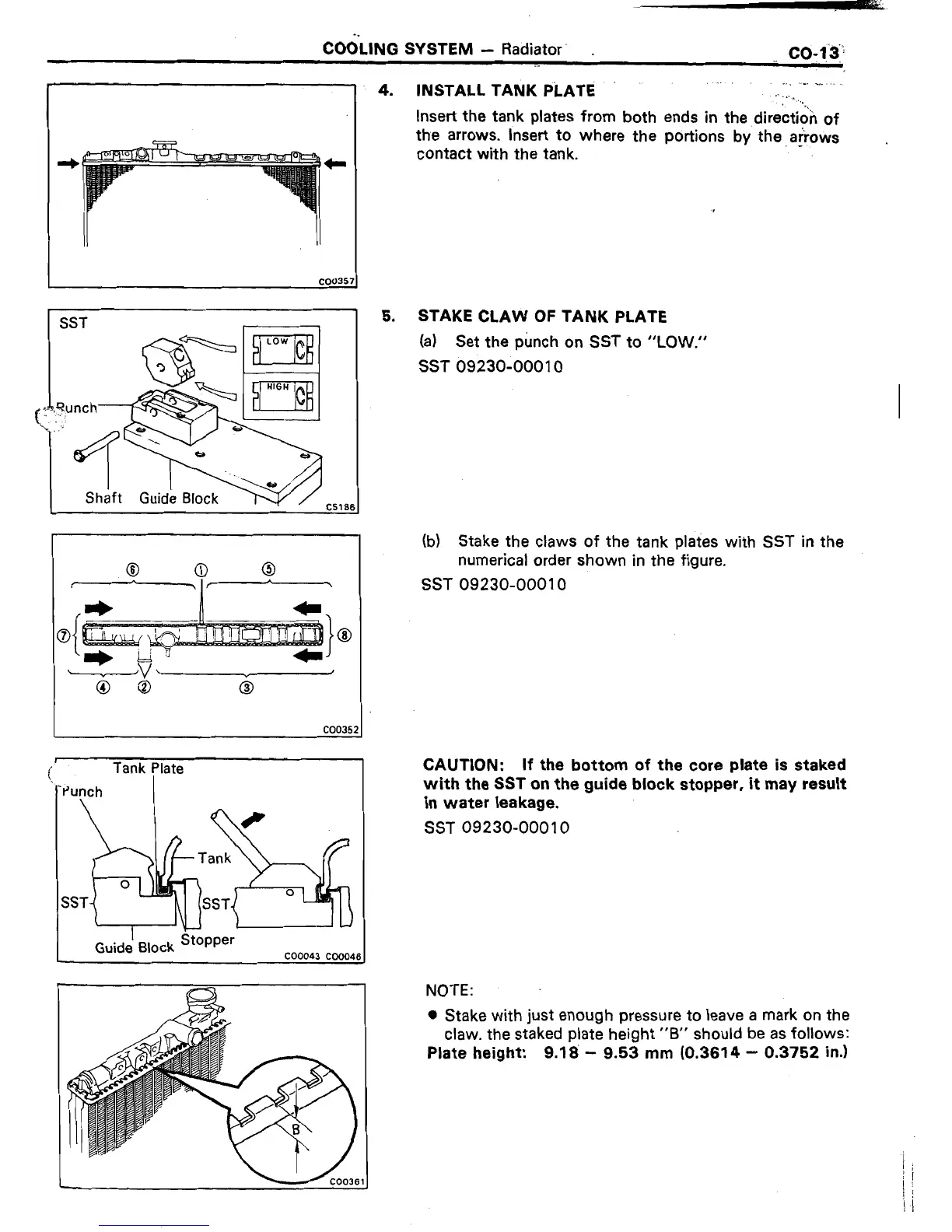

4. INSTALL TANK PiATE
.
., _. .,
. ._
Insert the tank plates from both ends in the direction of
the arrows. Insert to where the portions by the arrows
contact with the tank.
-
.
5.
STAKE CLAW OF TANK PLATE
(a) Set the punch on SST to “LOW.”
SST 09230-00010
(b) Stake the claws of the tank plates with SST in the
numerical order shown in the figure.
SST 09230-00010
CAUTION: If the bottom of the core plate is staked
with the SST on the guide block stopper, it may result
in water leakage.
SST 09230-00010
NOTE:
l
Stake with just enough pressure to leave a mark on the
claw. the staked plate height “B” should be as follows:
Plate height: 9.18 - 9.53 mm (0.3614 - 0.3752 in.)
