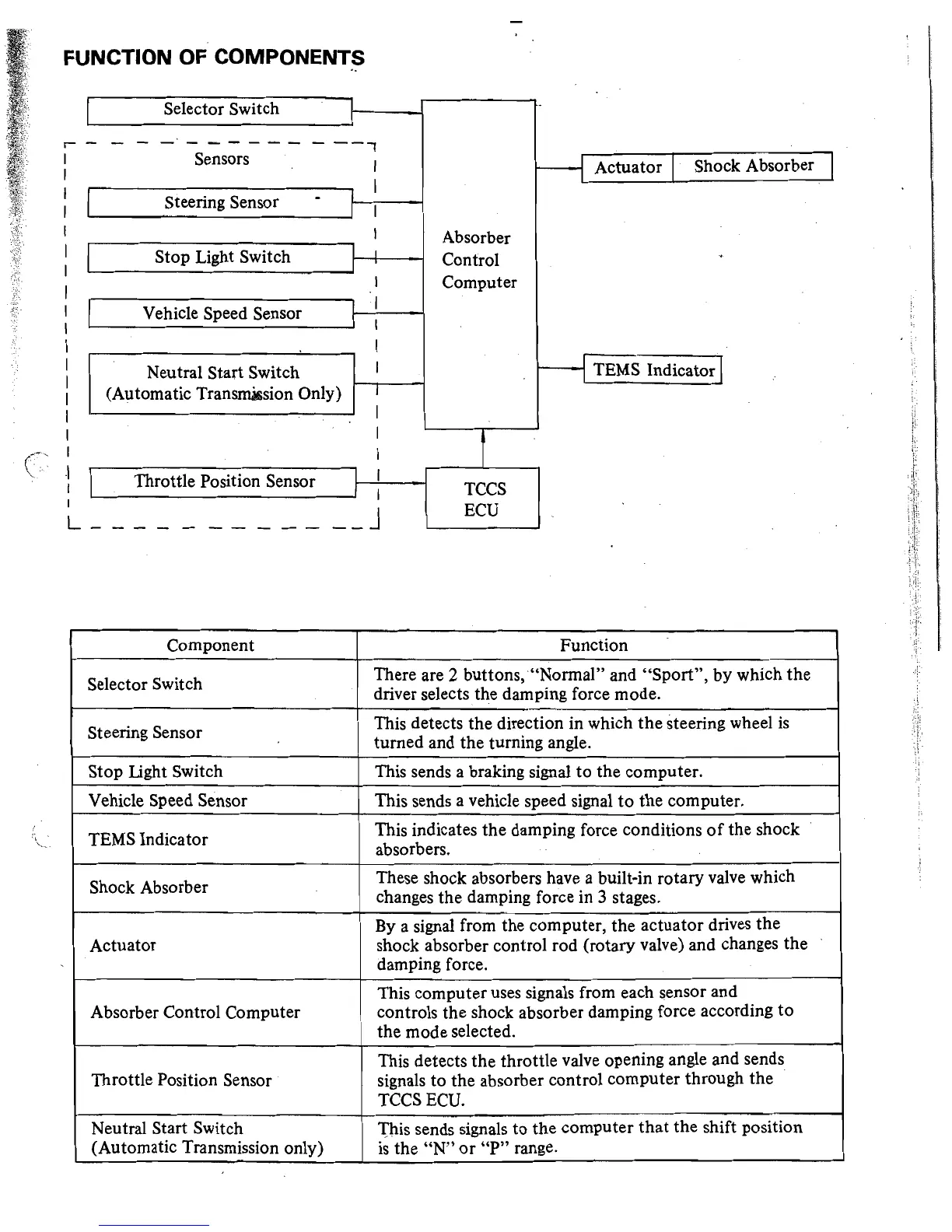

FUNCTION OF COMPONENT$
I
h
I Absorber
Stop Light Switch
Control
Computer
v .I
Vehicle Speed Sensor
1 I
t
, I
Neutral Start Switch
I
(Automatic Transtision Only)
t-i
1 Actuator 1 Shock Absorber 1
TEMS Indicator
1
Throttle Position Sensor
TCCS
ECU
Component
Selector Switch
Function
There are 2 buttons, “Normal” and “Sport”, by which the
driver selects the damping force mode.
Steering Sensor
Stop Light Switch
Vehicle Speed Sensor
TEMS Indicator
This detects the direction in which the steering wheel is
turned and the turning angle.
This sends a braking signal to the computer.
This sends a vehicle speed signal to the computer.
This indicates the damping force conditions of the shock
absorbers.
Shock Absorber
Actuator
These shock absorbers have a built-in rotary valve which
changes the damping force in 3 stages.
By a signal from the computer, the actuator drives the
shock absorber control rod (rotary valve) and changes the
damping force.
Absorber Control Computer
This computer uses signals from each sensor and
controls the shock absorber damping force according to
the mode selected.
Throttle Position Sensor
Neutral Start Switch
(Automatic Transmission only)
This detects the throttle valve opening angle and sends
signals to the absorber control computer through the
TCCS ECU.
This sends signals to the computer that the shift position
is the “N” or “P” range.
