EM-28

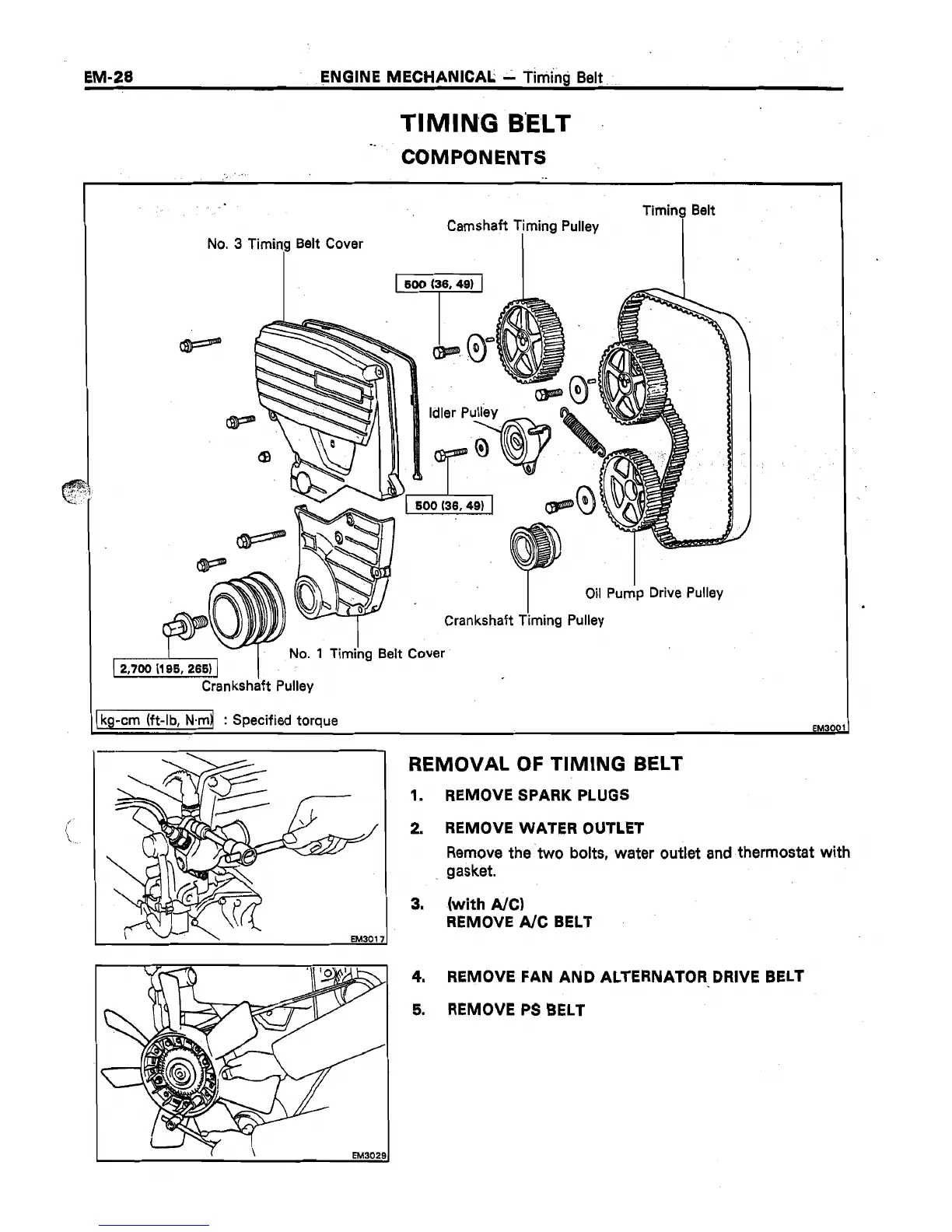

ENGINE MECliANICAL - Titiingj
Belt.
TIMING
-.
COMPONENTS
No. 3 Timing Belt Cover
Camshaft Timing Pulley
I
I ImIng oen
I
Crankshaft Pulley
kg-cm (ft-lb, N-ml : Specified torque
EM30f 31
REMOVAL OF TIMING BELT
1.
REMOVE SPARK PLUGS
2. REMOVE WATER OUTLET
Remove the two bolts, water outlet and thermostat with
. gasket.
3. .(with A/C)
REMOVE A/C BELT
4. REMOVE FAN AND ALTERNATOR DRIVE BELT
5.
REMOVE PS BELT
