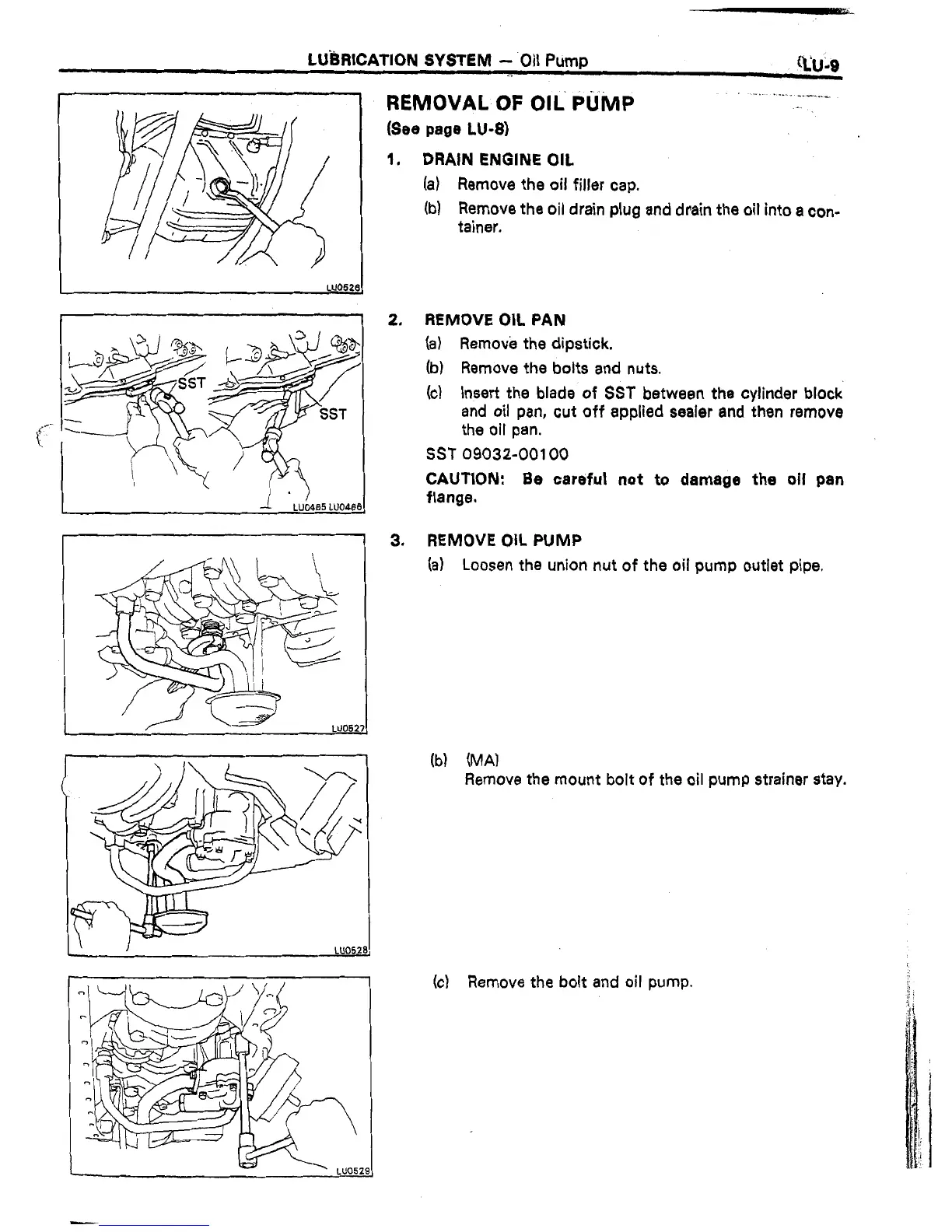

LUbRlCATlON SYSTEM - Oil Pump
._
ul~9
LUO526
REMOVAL,OF OIli
Prli&lP
(See page LU-8)
-, . .--- -._.____.
-.
1.
DRAIN ENGINE OIL
(a) Remove the oil filler cap.
(b) Remove the oil drain plug and drain the oil into a con-
tainer.
2. REMOVE OIL PAN
(a) Remove the dipstick.
(b) Remove the bolts and nuts.
(c) Insert the blade of SST between the cylinder block
and oil pan, cut off applied sealer and then remove
the oil pan.
SST 09032-00100
CAUTION: Be careful not to damage the oil pan
flange.
3. REMOVE OIL PUMP
(a) Loosen the union nut of the oil pump outlet pipe.
(b) (MA)
Remove the mount bolt of the oil pump strainer stay.
(c) Remove the bolt and oil pump.
