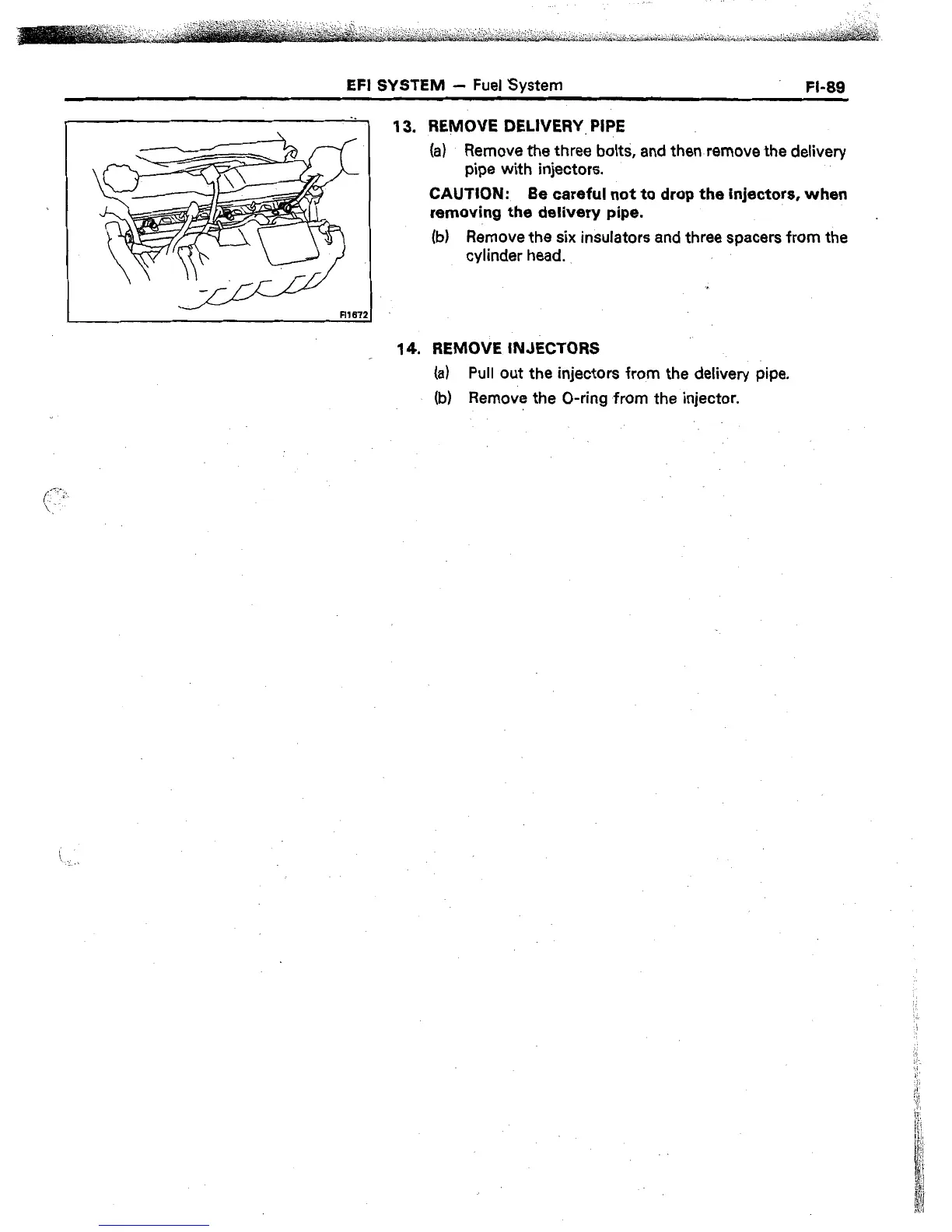

EFI SYSTEM
- Fuel System
FI-89
REMOVE DELIVERY PIPE
(a) Remove the three bolts, and then remove the delivery
pipe with injectors.
CAUTION:
Be careful not to drop the injectors, when
removing the delivery pipe.
(b) Remove the six insulators and three spacers from the
cylinder head.
14. REMOVE INJECTORS
(a) Pull out the injectors from the delivery pipe.
(b) Remove the O-ring from the injector.
