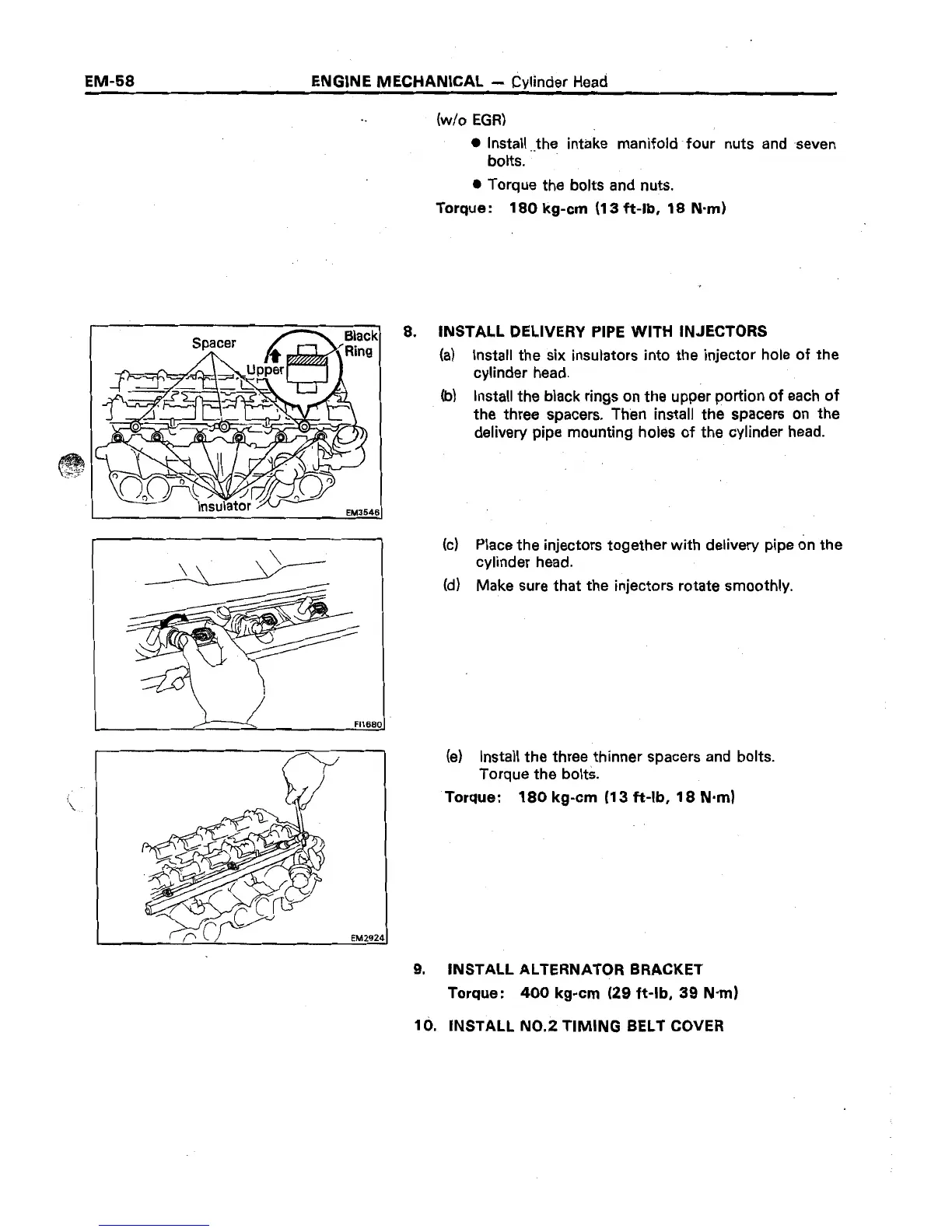

EM-58
ENGINE MECHANICAL - Cylinder Head
-.
(w/o EGR)
0 install.-the intake manifold four nuts and seven
bolts.
l
Torque the bolts and nuts.
Torque :
180 kg-cm (13 ft-lb, 18 N.mI
8.
INSTALL DELIVERY PIPE WITH INJECTORS
(a)
Install the six insulators into the injector hole of the
cylinder head.
(b) Install the black rings on the upper portion of each of
the three spacers. Then install the spacers on the
delivery pipe mounting holes of the cylinder head.
(c) Place the injectors together with delivery pipe on the
cylinder head.
(d) Make sure that the injectors rotate smoothly.
(e) Install the three thinner spacers and bolts.
Torque the bolts.
Torque :
180 kg-cm (13 ft-lb, 18 N*m)
9.
INSTALL ALTERNATOR BRACKET
Torque :
400 kg-cm (29 ft-lb, 39 N.rnI
16. INSTALL NO.2 TIMING BELT COVER
To Next Page
