ENGINE MECHANICAL - Timing Belt
EM291

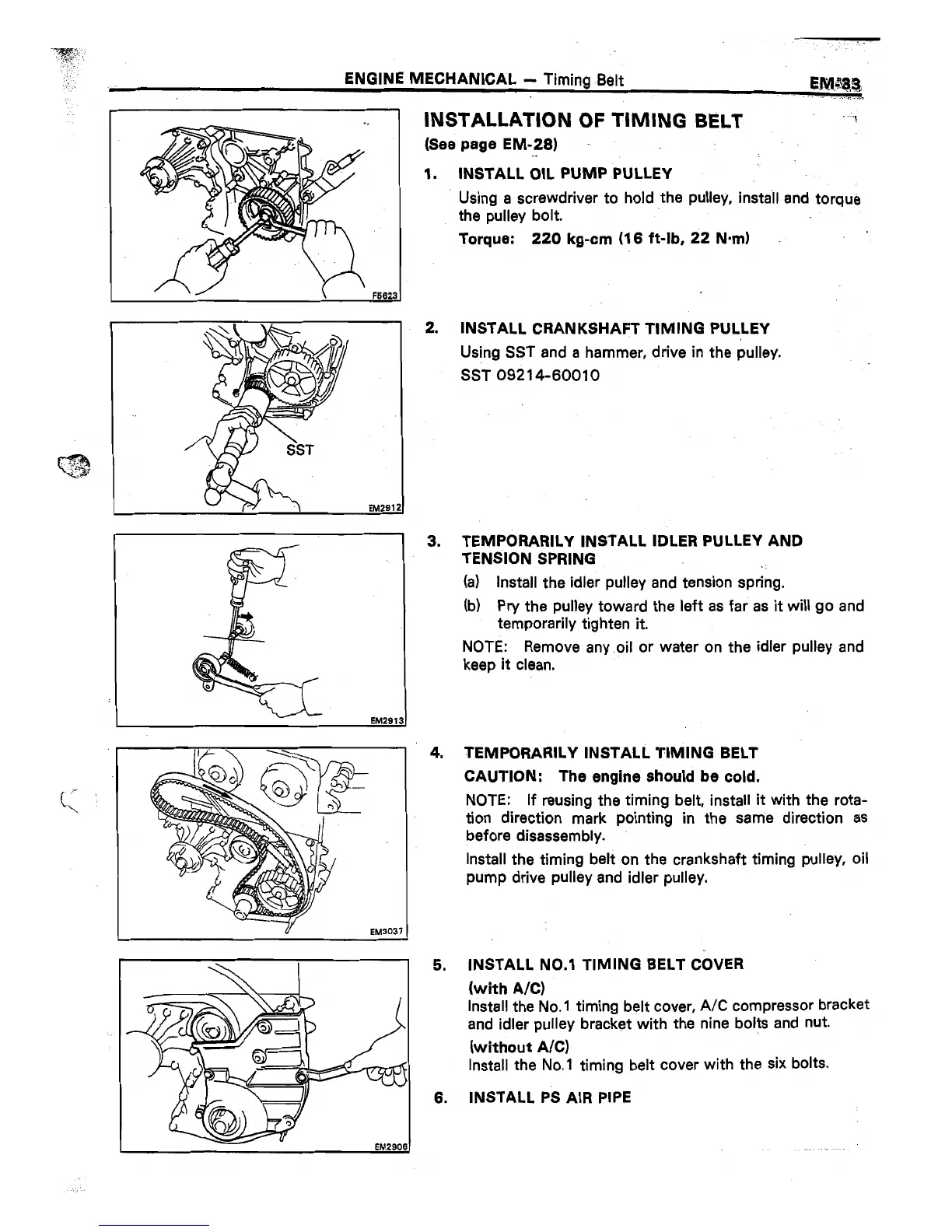

INSTALLATION OF TIMING BELT
(See page EM-281
._
1. INSTALL OIL PUMP PULLEY
“3
Using a screwdriver to hold the pulley, install and torque
the pulley bolt.
Torque: 220 kg-cm (16 ft-lb, 22 Nnrn)
2.
INSTALL CRANKSHAFT TIMING PULLEY
Using SST and a hammer, drive in the pulley.
SST 09214-60010
3. TEMPORARILY INSTALL IDLER PULLEY AND
TENSION SPRING
(a)
Install the idler pulley and tension spring.
(b) Pry the pulley toward the left as far as it will go and
temporarily tighten it.
NOTE:
Remove any oil or water on the idler pulley and
keep it clean.
4. TEMPORARILY INSTALL TIMING BELT
CAUTION:
The engine should be cold.
NOTE: If reusing the timing belt, install it with the rota-
tion direction mark pointing in the same direction as
before disassembly.
Install the timing belt on the crankshaft timing pulley, oil
pump drive pulley and idler pulley.
5. INSTALL NO.1 TIMING BELT COVER
(with A/C)
Install the No. 1 timing belt cover, A/C compressor bracket
and idler pulley bracket with the nine bolts and nut.
(without A/C)
Install the No.1 timing belt cover with the six bolts.
6. INSTALL PS AIR PIPE
To Next Page
