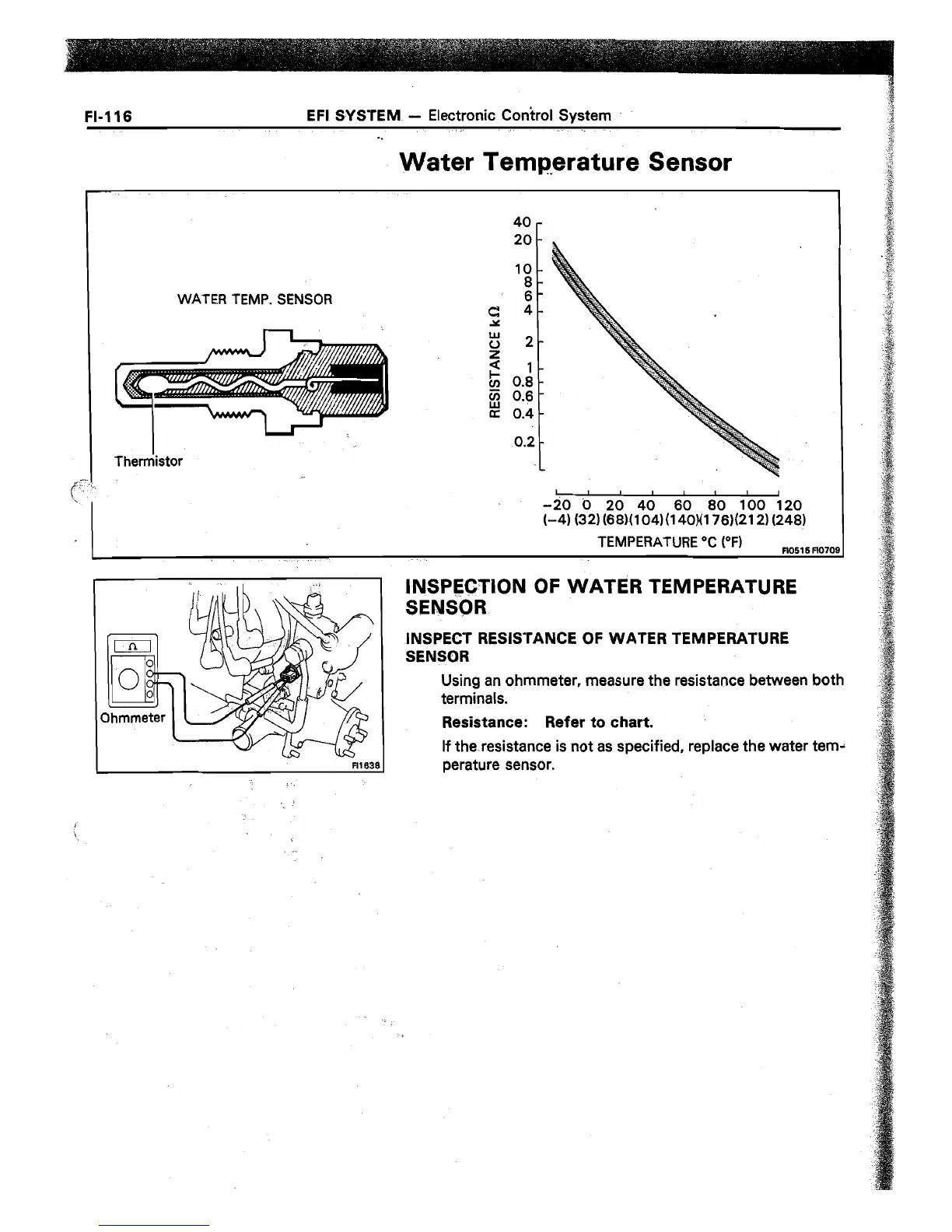

FL1 16
EFI SYSTEM - Electronic System
Water Temperature Sensor
._
WATER TEMP. SENSOR
I
Thermistor
,
I I I I
I
-20 0 20 40 60 80 100 120
(-4) (32) (68)(104)(140)1176)(212) (248)
TEMPERATURE “C IoF)
Fl0516FiO7C
INSPECTION OF WATER TEMPERATURE
SENSOR
INSPECT RESISTANCE OF WATER TEMPERATURE
SENSOR
Using an ohmmeter, measure the resistance between both
terminals.
Resistance: Refer to chart.
If the.resistance is not as specified, replace the water tem-
perature sensor.
To Next Page
