10.4 ARP
This page displays the ARP table information and you can configure static ARP here.
10.4.1 ARP Table
Choose the menu Routing→ARP→ARP Table to load the following page.

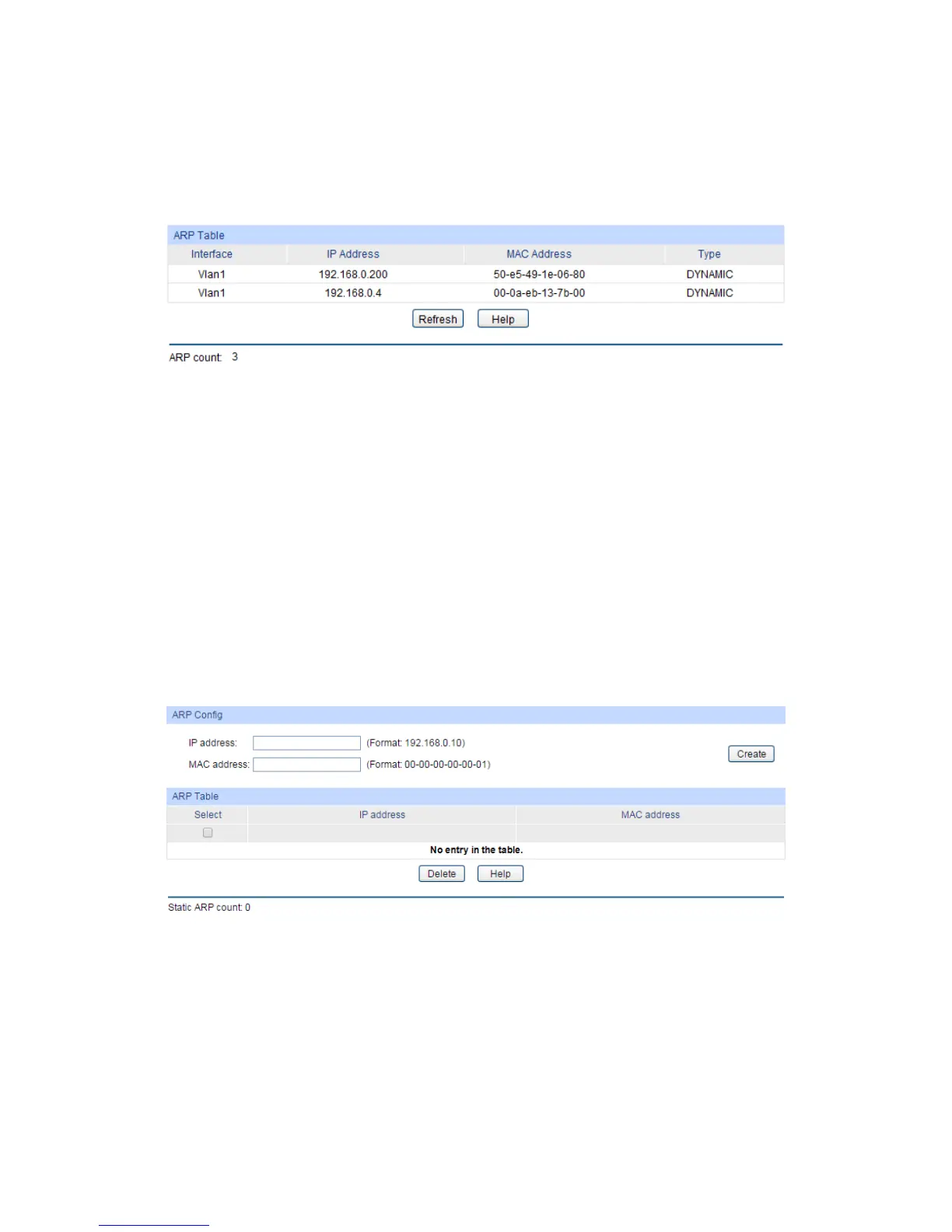

Figure 10-4 ARP Table
The following entries are displayed on this screen:

ARP Table
Interface: Displays the network interface of ARP entry.
IP Address: Enter the DHCP server IP address.
MAC Address: Displays the MAC address of ARP entry.
Type: Displays the type of ARP entry. e.g. Static, Dynamic.
10.4.2 Static ARP
You can configure the static ARP on this page.
Choose the menu Routing→ARP→Static ARP to load the following page.
Figure 10-5 Static ARP

ARP Config
IP Address: Specify the IP address of ARP entry.
MAC Address: Specify the MAC address of ARP entry.

ARP Table
Select: Specify the static ARP entries to modify.
IP Address: Displays the IP address of ARP entry.
