2. The traffic load of the LAG will be balanced among the ports according to the Aggregate
Arithmetic. If the connections of one or several ports are broken, the traffic of these ports will
be transmitted on the normal ports, so as to guarantee the connection reliability.
The LAG function is implemented on the LAG Table, Static LAG and LACP Config configuration
pages.
6.2.1 LAG Table
On this page, you can view the information of the current LAG of the switch.
Choose the menu Switching→LAG→LAG Table to load the following page.

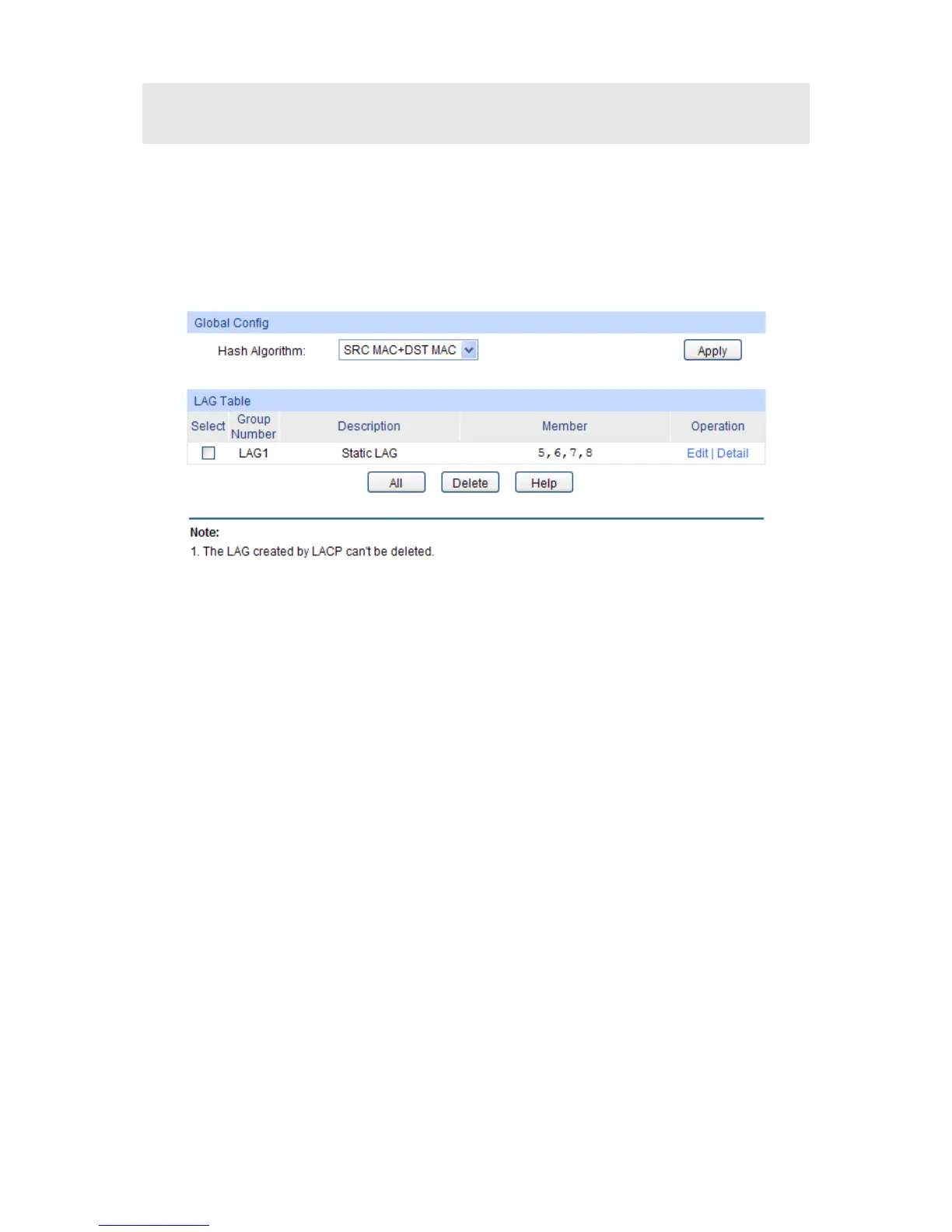

Figure 6-8 LAG Table
The following entries are displayed on this screen:

Global Config
Hash Algorithm
: Select the applied scope of Aggregate Arithmetic, which
results in choosing a port to transfer the packets.
 SRC MAC:
When this option is selected, the Aggregate
Arithmetic will apply to the source MAC addresses of the
packets.
 DST MAC:
When this option is selected, the Aggregate
Arithmetic will apply to the destination
MAC addresses of
the packets.
 SRC MAC + DST MAC:
When this option is selected, the
Aggregate Arithmetic will apply to the source and
destination MAC addresses of the packets.
 SRC IP:
When this option is selected, the Aggregate
Arithmetic will apply to the
source IP addresses of the
packets.
 DST IP:
When this option is selected, the Aggregate
Arithmetic will apply to the destination IP addresses of
the packets.
 SRC IP + DST IP:
When this option is selected, the
Aggregate Arithmetic will apply to the source
and
destination IP addresses of the packets.

LAG Table
Select
: Select the desired LAG. It is multi-optional.
