TP-Link TD-8811 User Manual

TD-8811 ADSL2+ Modem Router User Guide
53

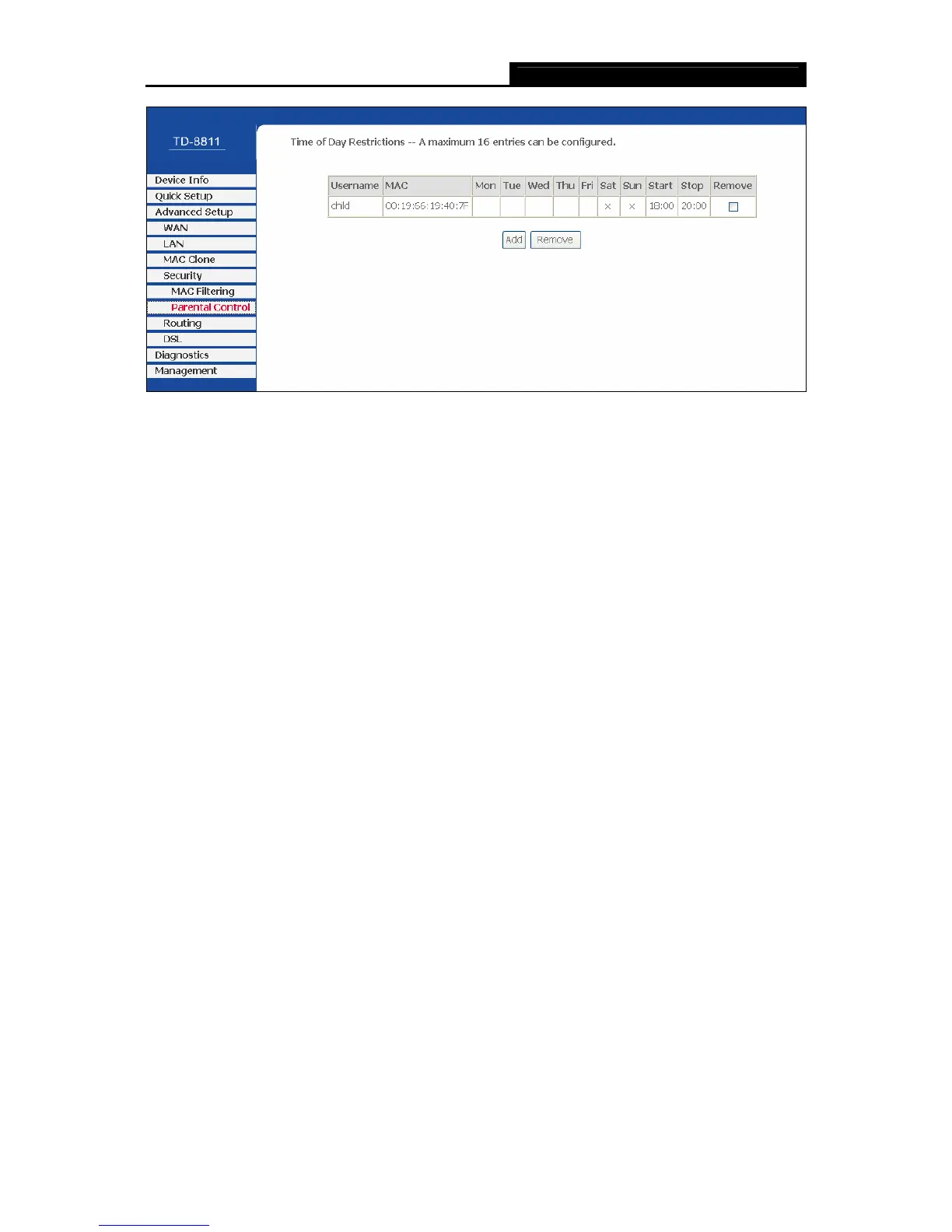

Figure 4-29
For example: If you don’t want your child_1 to surf the Internet from 18:00 to 20:00 on
weekdays. You can follow the steps below.
1. Click the Add button in Figure 4-29 to go to the Time of Da
y Restriction page as shown in
Figure 4-30.
2. Create
a User Name for your child, for example child_1.
3. If you want to restrict the Browser’s surfing time, check the Browser’s MAC Address radio
button. If you want to restrict other user’s surfing time, check the Other MAC Address
radio button and enter the MAC address of the user’s computer, for example
00:11:22:33:44:CC.
4. Select the day or days you need.
5. Enter the Start Blocking Time and End Blocking Time both in hh:mm format.
6. Click Save/Apply button. Then you will go back to the Time of Day Restrictions page and
see the list as shown in Figure 4-29.

TP-Link TD-8811 Specifications

General

Connectivity LEDs	Yes
Dimensions (WxDxH)	165 x 108 x 28 mm
Connectivity technology	Wired
Maximum data transfer rate	0.1 Gbit/s
Supported data transfer rates	10/100 Mbps
Networking standards	IEEE 802.1d
Ethernet LAN data rates	10, 100 Mbit/s
Routing protocols	IP
Supported network protocols	PPPoE, RFC 2364
DSL specification	ANSI T1.413 Issue 2, ITU-T G.992.1, ITU-T G.992.2, ITU-T G.994.1, ITU-T G.992.3, ITU-T G.992.5
Ethernet LAN (RJ-45) ports	1
Firewall security	Network address translation (NAT) firewall, Stateful packet inspection (SPI) firewall
Security algorithms	802.1x RADIUS
Filtering description	Domain
Product color	Black, White
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Power consumption (typical)	4.1 W

Weight and Dimensions

Weight	300 g
