TR Equipment TR 2000 - Technical Information; Circuit Board and Battery Charger Details

Hygiene Equipment
Designed for People
TR 2000/3000/9650
Shower trolleys and Mobile Bath Lift System
Hygiene Equipment
Designed for People
26
No Colour / Connection Connection to
1 Orange Charging inlet +
2 Red Battery +
3 Green Charging inlet -
4 Black, Blue, Red, Red (black cover) Microswitch
5 Black, Red Motor
6 Red, Black LED

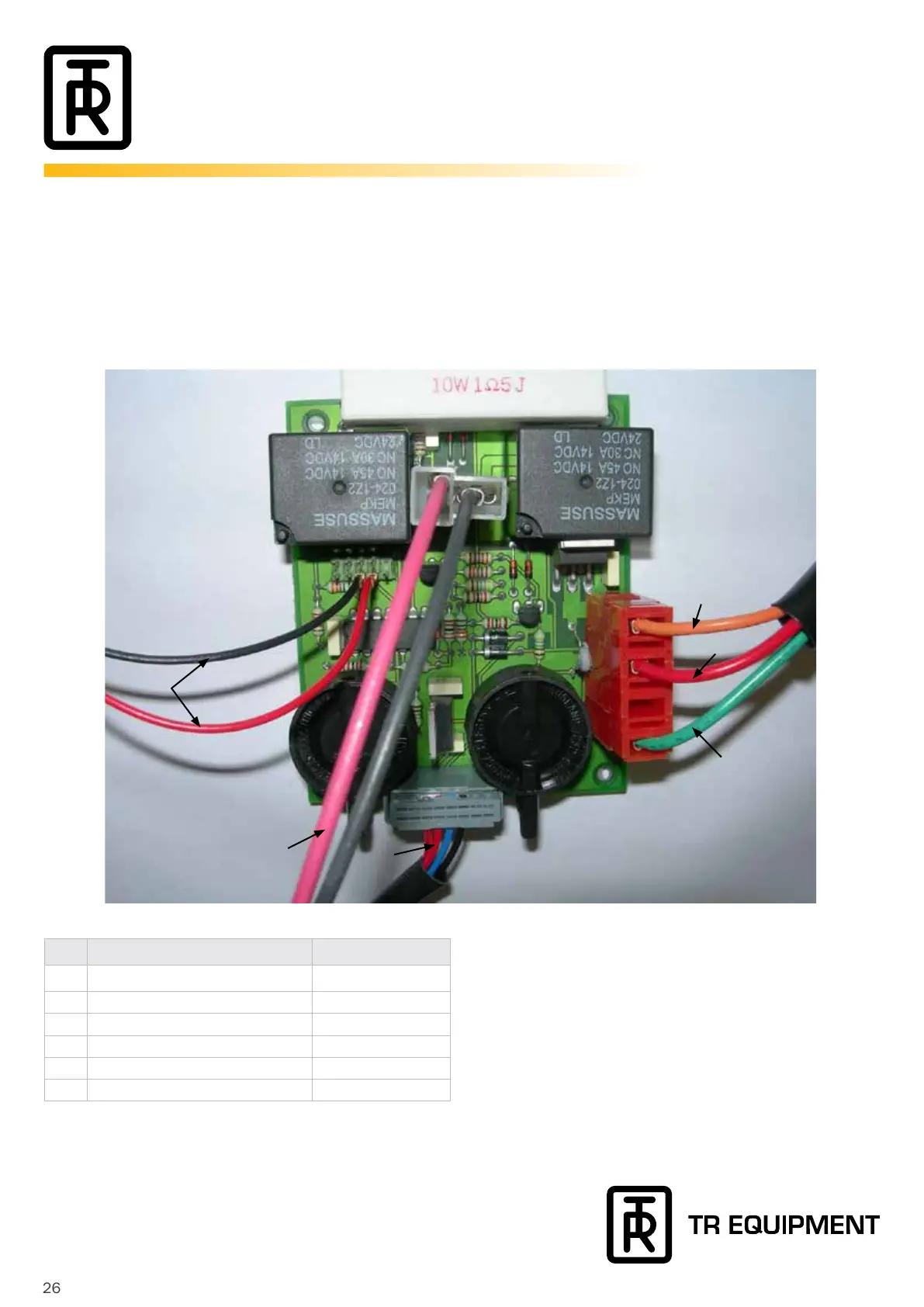

TR 3000 /TR 9650 (-2006) - Circuit Board
Technical information
6
5
4
1
2
3
