TR 2000/3000/9650
Shower trolleys and Mobile Bath Lift System
Hygiene Equipment
Designed for People
1. Remove the mattress from the trolley and lift up the white
plastic plate on the stretcher.
Then remove the screw M8x16 (Torx T40) at the top of the
column.

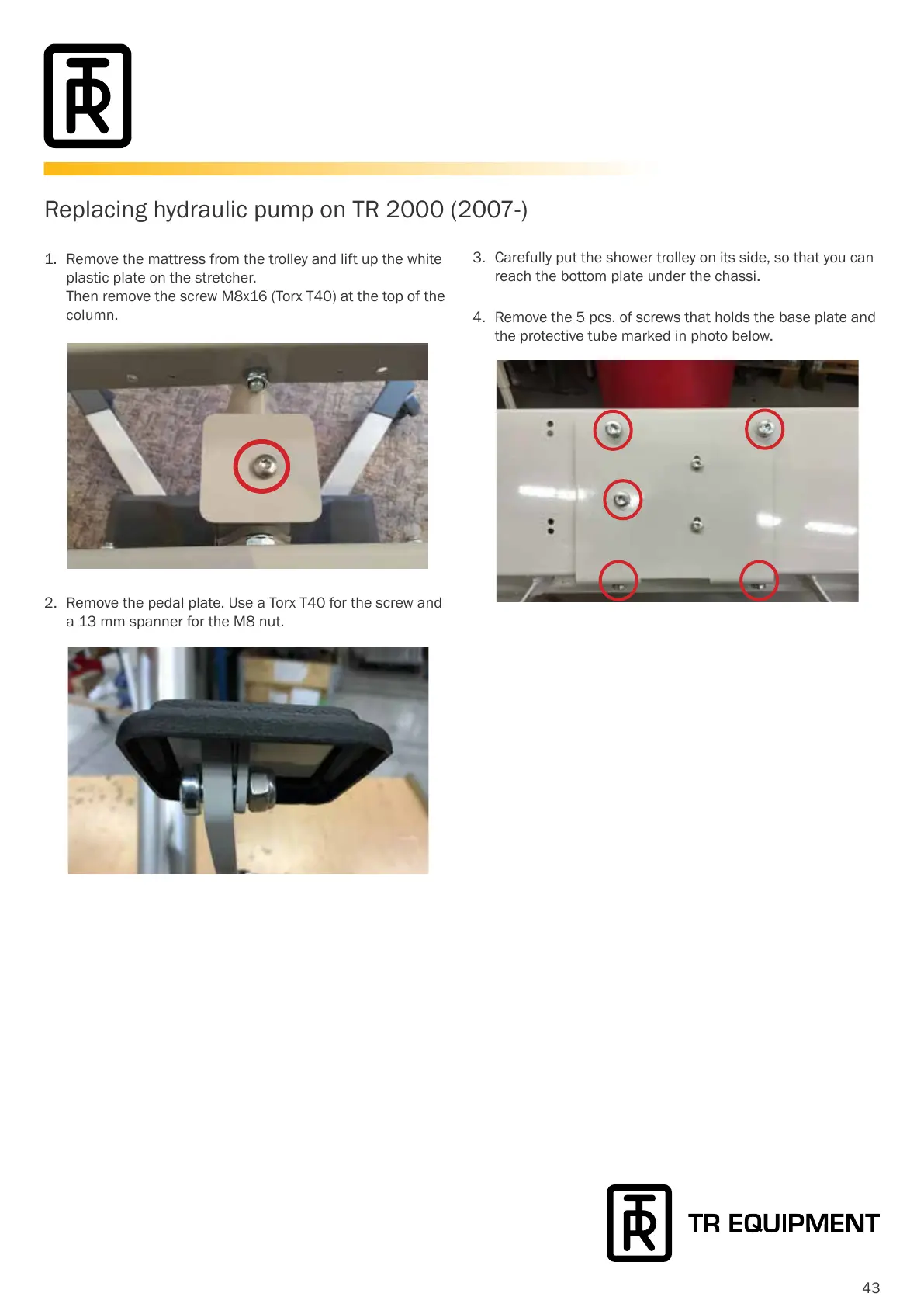

Replacing hydraulic pump on TR 2000 (2007-)
2. Remove the pedal plate. Use a Torx T40 for the screw and
a 13 mm spanner for the M8 nut.
4. Remove the 5 pcs. of screws that holds the base plate and
the protective tube marked in photo below.
3. Carefully put the shower trolley on its side, so that you can
reach the bottom plate under the chassi.
